You can use your CCRF940 Audio/Video Selector to connect up to four audio/video components (such as direct-to-home satellite systems, VCRs, DVD
players, laserdisc players, cable boxes, or video game system) to a single TV. You can connect S-video cables directly to the selector for optimum
picture quality.
Depending upon your audio/video system setup, you might also need additional cables or adapters to connect all of the desired components.
Use RCA cables to connect audio and video devices, and S-video cables to connect video devices to the selector.
Note : To receive video output from the OUT
S-video Jack on the back of the selector, you must
use an S-video cable to connect a video source to
one of the IN S-video jacks
PLACING THE SELECTOR
You can set the selector on just about any flat surface. For the best results, do not place it on top of a TV or other electrical appliance.
Important: If you place the selector on top of your TV, electromagnetic interference from the TV might distort the sound from any devices connected
to the selector. If this happens, move the selector away from the TV.

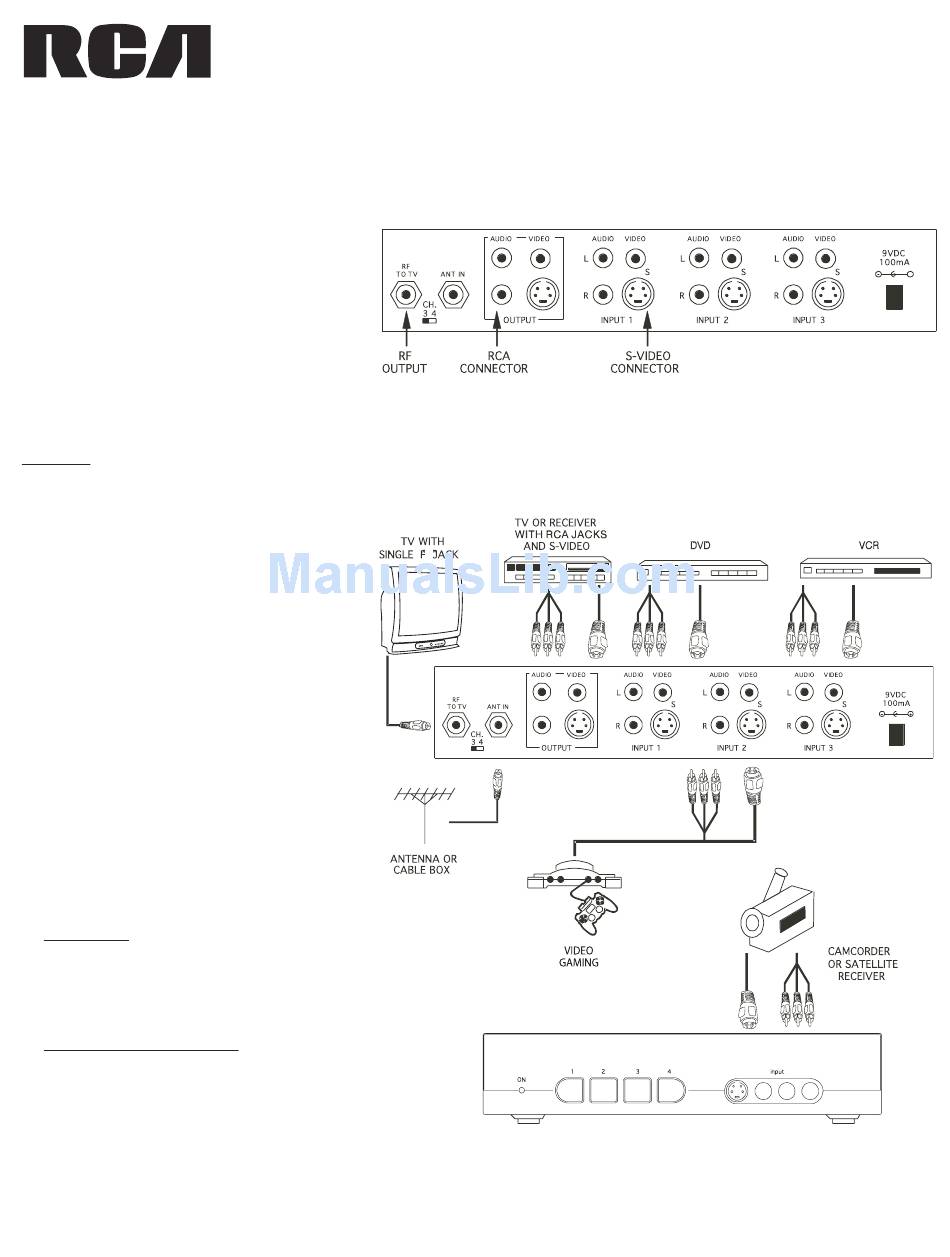

CONNECTING DEVICES TO THE
SELECTOR
1. Connect the sound outputs for each device to a
set of IN AUDIO jack (1-4) on the back of the
selector.
2. If a device you want to connect does not have an
S-video cable, connect its video output to IN
VIDEO for that device on the back of the selector,
Or, if the device has an S-video cable, connect it
to the S-video IN jack for that device on the back
of the selector.
Note: Do not connect the component's video
output to both INPUT-V (1-4)and S-VHS INPUT
(1-4).
3. If the TV or monitor you want to connect does
not have an S-video cable, connect its video
input to OUT VIDEO on the back of the selector.
Note: Do not connect the TV or monitor's video
input to both OUT-PUT V and OUT-PUT S-VHS.
4. Auto detector
When the CCRF940 doesn't detect the signal
from the 4 inputs, it will automatically process
the signal from the "F" connector of "ANT IN"
to RF output.
5. Synchronize Recording function
If you choose any of the 4 inputs to process the
program, you may also record the program at the
same time from the Audio/Video/S-video output.
USING THE SELECTOR
Turn on the device you want to use. Press the button that corresponds to the device on the front of the Audio/Video Selector. If the indicator turns on
it means you have connected the power adaptor correctly. If you do not see video output for the device you selected, check to make sure you pressed
the correct button and that your input /output is properly connected.
CCRF940
USER'S MANUAL
