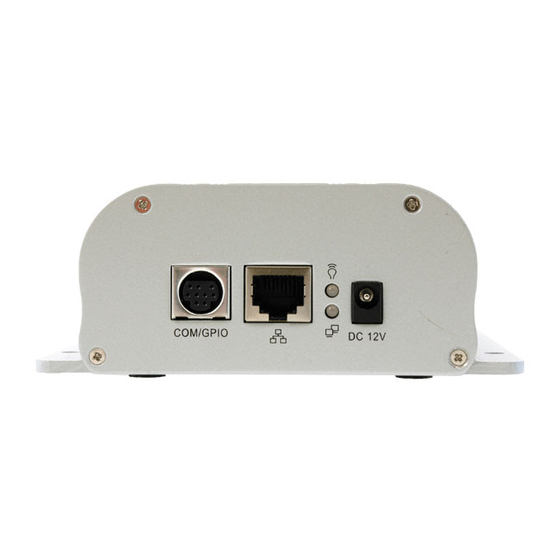

- Page 1 DNS1010 Dual-coDec ViDeo SerVer...
-
Page 2: Package Contents
PACKAGE CONTENTS This installation guide provides instructions for installing the Digimerge DNS1010 Dual-Codec Video Server on your network. For all other aspects of using the product, please refer to the user manual avail- able at www.digimerge.com or on the Installation CD included with this product. -
Page 3: Hardware Connections
HArDwArE CONNECTIONS Mounting Instructions: Run the cables to the desired location. Securely mount the device to a wall or other surface using 4 metal screws (not provided). WALL MOUNT TABLE MOUNT Connect the network cable to the Video Server’s RJ45 network connector. -
Page 4: Software Installation
CD included with your package, and provides you with the following: 1. Web links to various resources and documentation 2. Discovery of all the Digimerge IP devices on the network 3. Provides Network configuration of IP Devices 4. Installs DigiConsole and... -
Page 5: Software Setup
3rd party software support links. Find Devices: Locates all available Digimerge IP devices on your network and displays a snapshot of the results. Click on any available device to display image on the right side screen display. - Page 6 SOFTwArE SET-UP Continued OPTIONAL Edit Network Parameters: The Network Parameters are automatically assigned to the Device by the network router (by using DHCP). These settings can be manually changed if desired. 1. Select the IP device you would like to edit by clicking on its icon. 2.
- Page 7 SOFTwArE SET-UP Continued Open Device in Browser: Once user names and passwords are set Opens up the DigiViewer Video Browser up by the administrator, the users (except using your default web browser (e.g. for a VIEWER level user) are required to Internet Explorer).
- Page 8 SOFTwArE SET-UP Continued 3 Levels of User Access: • Administrator (current user) • Operator (general user) Default User Name: guest Password: <leave blank> • Viewer (anonymous guest) Creating Current User Account: 1. Click SETTINGS 2. Select ACCOUNTS 3. Fill in a user name and password in the assigned fields 4.
- Page 9 This page is intentionally left blank. w w w d i g i m e r g e c o m DNS1010_Quick Installation Guide_En_R1 Page ...
- Page 10 Opens up a window to search your computer for downloaded firmware (with .bin extension). NOTE: This product will not auto- matically check for firmware updates. Please visit the Digimerge website to download the most current firmware for your product. Register: Provides you with information on the device warranty and/or free DDNS service.
- Page 11 The application is optional as we offer software solution compatibility with some of the premier IP software developers in the industry. Visit the Digimerge website for the most up to date information on compatible software solutions. Application Installation: When you install the Digiconsole...
- Page 12 DDNS SET-UP AND rEGISTrATION Port forwarding on your router and the creation of a DDNS account with Digimerge is required in order for you to have remote internet access. Open your Web Browser. Select the Create Account Enter http://ddns.digimerge.net Option http://ddns.digimerge.net...
- Page 13 Router: Refer to your for DDNS, click on the ‘register with DDNS Router’s manual for specific in- service’ link. This will bring up the Digimerge structions on port forwarding or DDNS Account login screen. Log in using check DNS1010 product page...
-
Page 14: Power Over Ethernet (Poe)
Lower Costs IP Camera (non-PoE) • Eliminate the need to run A/C power wires Digimerge IP Devices are certified for use with Microsemi PoE hardware solutions. Visit www.microsemi. • Utilize existing IT infrastructure investments com/PowerDsine for details on all available PoE hardware solutions. - Page 15 DIGIMErGE IP CAMErA LINE-UP • Full range of High resolution (520TVL+) Cameras • Dual Codec (MPEG4/MJPEG) • Hardware Solutions to Fit Most Common CCTV • Full D1 resolution (@ up to 30fps) Applications (Day/Night/PTZ/ wDr/ weatherproof/ • Complete Software Solution Included...
- Page 16 For additional information or troubleshooting help, refer to your owners manual for assistance. You can also call or email for further support. Toll Free Technical Support: 1--- or +0-- Email Support: tech@digimerge.com Website: www.digimerge.com w w w d i g i m e r g e...
