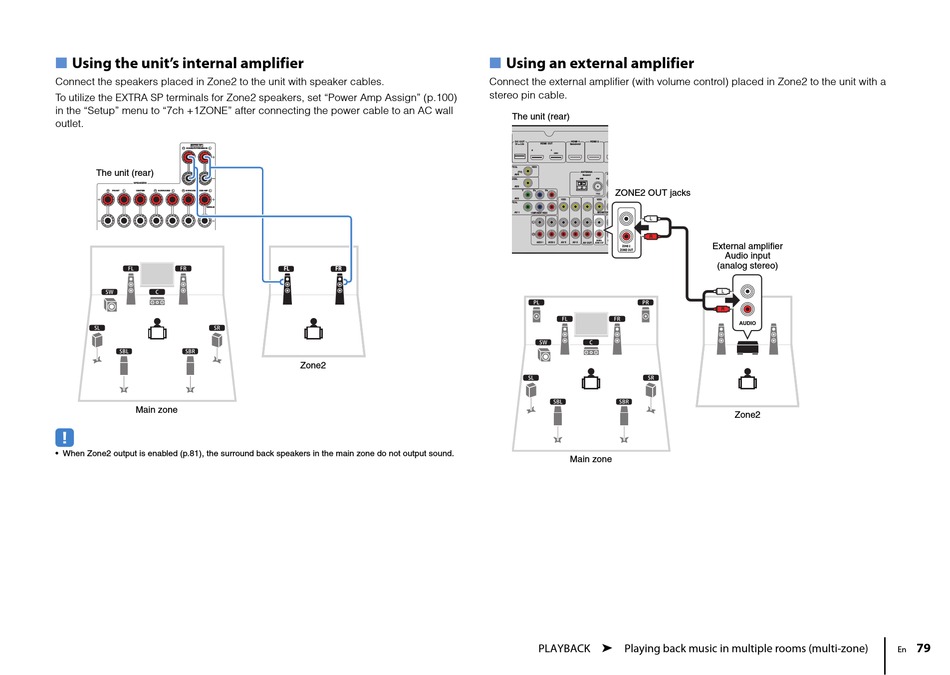

Using An External Amplifier - Yamaha RX-V777 Owner's Manual

■
Using the unit's internal amplifier
Connect the speakers placed in Zone2 to the unit with speaker cables.
To utilize the EXTRA SP terminals for Zone2 speakers, set "Power Amp Assign" (p.100)
in the "Setup" menu to "7ch +1ZONE" after connecting the power cable to an AC wall
outlet.
EXTRA SP
ZONE2/F.PRESENCE
The unit (rear)
SPEAKERS
FRONT CENTER SURROUND SURROUND BACK/BI-AMP
SINGLE
1 2
9 3
4 5
6 7
Main zone
• When Zone2 output is enabled (p.81), the surround back speakers in the main zone do not output sound.
Zone2
■

Using an external amplifier

Connect the external amplifier (with volume control) placed in Zone2 to the unit with a
stereo pin cable.
The unit (rear)
DC OUT HDMI 1 HDMI 2
HDMI OUT (BD/DVD)
5V 0.5A
2 1
ARC
PTICAL VIDEO
(TV)
ANTENNA
CO
AV4 (RADIO)
OAXIAL AM FM
AV3
Y P P R ZONE2 OUT jacks
B
AV2
VIDEO VIDEO
PTICAL
AV 1 COMPONENT VIDEO MONITOR
L
R
ZONE 2 F
AUDIO 1 AUDIO 2 AV 5 AV 6
AV OUT ZONE OUT
ZONE 2
ZONE OUT
Q W
1 2
9 3
4 5
6 7
Main zone
PLAYBACK ➤ Playing back music in multiple rooms (multi-zone)
External amplifier
Audio input
(analog stereo)
L
R
AUDIO
Zone2
