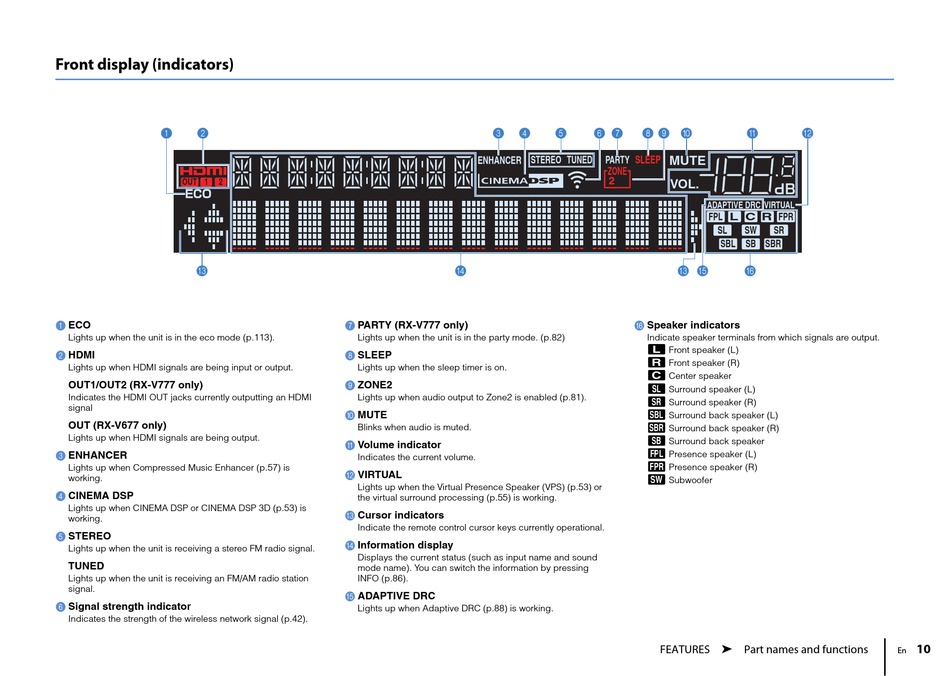

Front display (indicators)

1 2
OUT 1 2
C
1
ECO
Lights up when the unit is in the eco mode (p.113).
2
HDMI
Lights up when HDMI signals are being input or output.
OUT1/OUT2 (RX-V777 only)
Indicates the HDMI OUT jacks currently outputting an HDMI
signal
OUT (RX-V677 only)
Lights up when HDMI signals are being output.
3
ENHANCER
Lights up when Compressed Music Enhancer (p.57) is
working.
4
CINEMA DSP
Lights up when CINEMA DSP or CINEMA DSP 3D (p.53) is
working.
5
STEREO
Lights up when the unit is receiving a stereo FM radio signal.
TUNED
Lights up when the unit is receiving an FM/AM radio station
signal.
6
Signal strength indicator
Indicates the strength of the wireless network signal (p.42).
3 4
ENHANCER
D
7
PARTY (RX-V777 only)
Lights up when the unit is in the party mode. (p.82)
8
SLEEP
Lights up when the sleep timer is on.
9
ZONE2
Lights up when audio output to Zone2 is enabled (p.81).
0
MUTE
Blinks when audio is muted.
A
Volume indicator
Indicates the current volume.
B
VIRTUAL
Lights up when the Virtual Presence Speaker (VPS) (p.53) or
the virtual surround processing (p.55) is working.
C
Cursor indicators
Indicate the remote control cursor keys currently operational.
D
Information display
Displays the current status (such as input name and sound
mode name). You can switch the information by pressing
INFO (p.86).
E
ADAPTIVE DRC
Lights up when Adaptive DRC (p.88) is working.
5 6 7 8 9 :
STEREO TUNED PARTY SLEEP MUTE
ZONE
2
VOL.
ADAPTIVE DRC VIRTUAL
FPL
C E
F
Speaker indicators
Indicate speaker terminals from which signals are output.
A
Front speaker (L)
S
Front speaker (R)
D
Center speaker
F
Surround speaker (L)
G
Surround speaker (R)
H
Surround back speaker (L)
J
Surround back speaker (R)
K
Surround back speaker
B
Presence speaker (L)
N
Presence speaker (R)
L
Subwoofer
FEATURES ➤ Part names and functions
A B
L C R FPR
SL SW SR
SBL SB SBR
F
