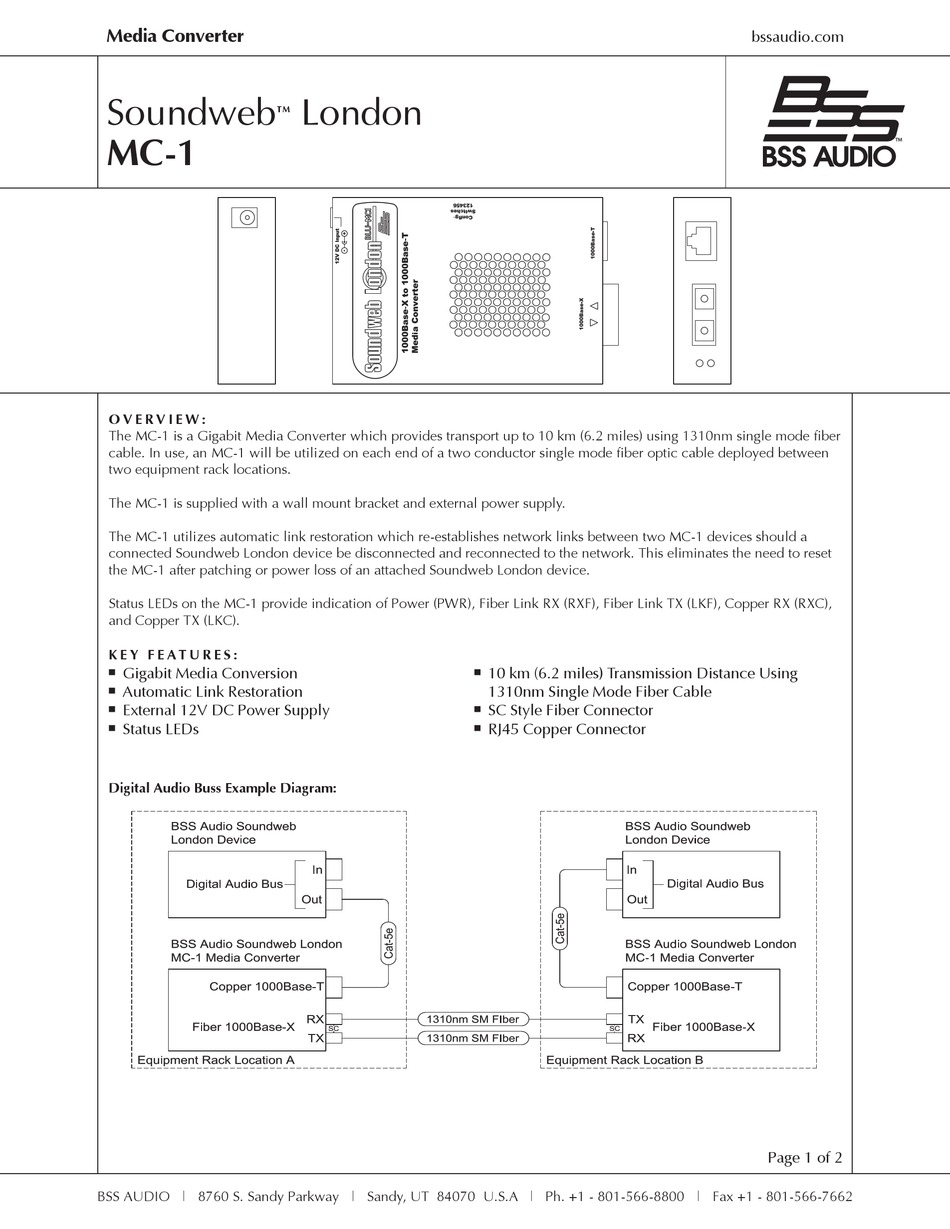

BSS Audio Soundweb London MC-1 Technical Specififcations

Media Converter

Soundweb
™
MC-1
O V E R V I E W :
The MC-1 is a Gigabit Media Converter which provides transport up to 10 km (6.2 miles) using 1310nm single mode fiber
cable. In use, an MC-1 will be utilized on each end of a two conductor single mode fiber optic cable deployed between
two equipment rack locations.
The MC-1 is supplied with a wall mount bracket and external power supply.
The MC-1 utilizes automatic link restoration which re-establishes network links between two MC-1 devices should a
connected Soundweb London device be disconnected and reconnected to the network. This eliminates the need to reset
the MC-1 after patching or power loss of an attached Soundweb London device.
Status LEDs on the MC-1 provide indication of Power (PWR), Fiber Link RX (RXF), Fiber Link TX (LKF), Copper RX (RXC),
and Copper TX (LKC).
K E y F E A t u R E s :
9 Gigabit Media Conversion
9 Automatic Link Restoration
9 External 12V DC Power Supply
9 Status LEDs
Digital Audio Buss Example Diagram:
BSS AUDIO | 8760 S. Sandy Parkway | Sandy, UT 84070 U.S.A | Ph. +1 - 801-566-8800 | Fax +1 - 801-566-7662
London
9 10 km (6.2 miles) Transmission Distance Using
9 SC Style Fiber Connector
9 RJ45 Copper Connector
1310nm Single Mode Fiber Cable
bssaudio.com
Page 1 of 2
