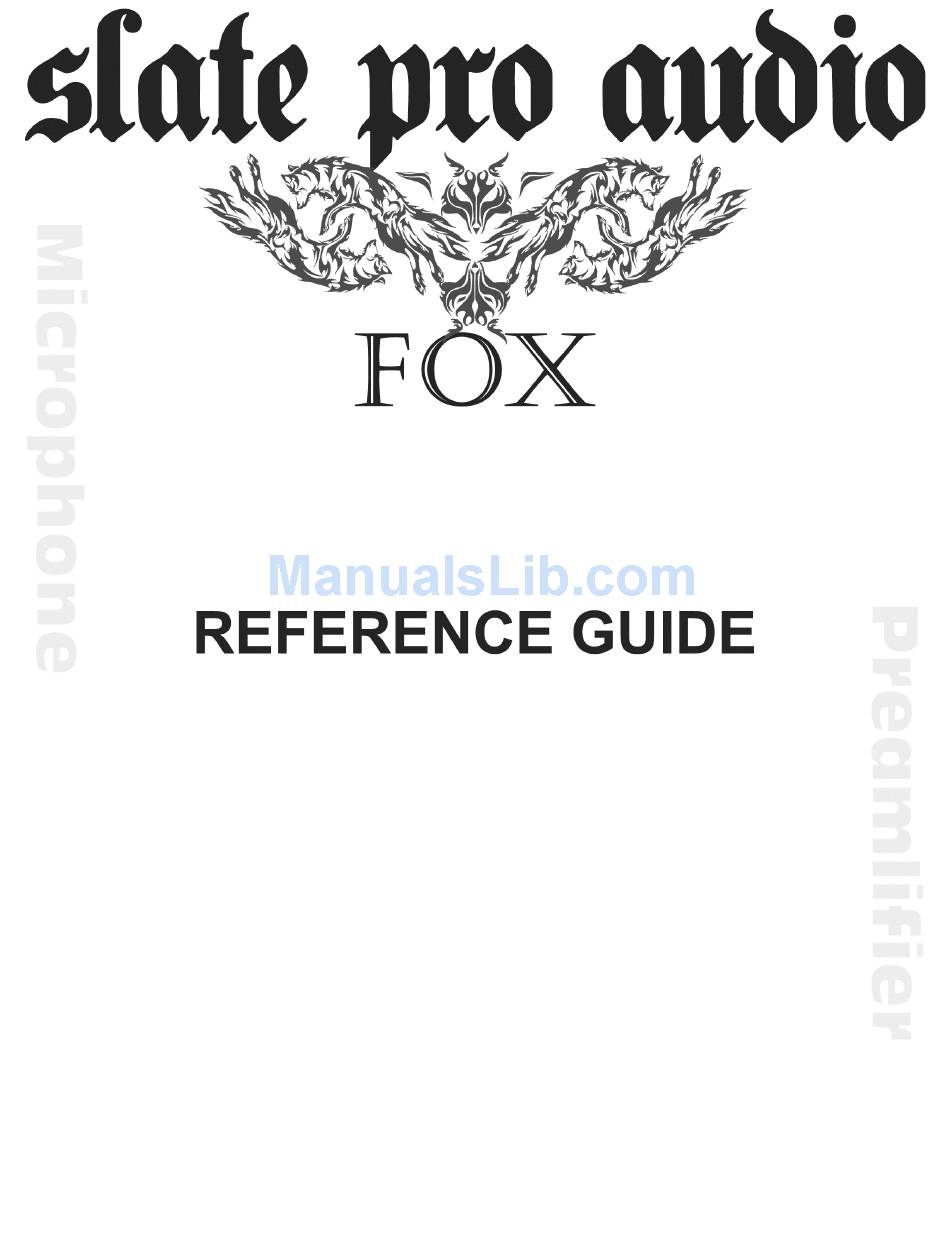

Summary of Contents for Slate FOX
- Page 2 Our hardware is proudly hand built in the USA and tested thoroughly for quality control. We guarantee satisfaction on all Slate Pro Audio products. Please do not hesitate to call us at 323- 656-2050 or email us at sales@slateproaudio.com The FOX Concept After starting my pro audio business in 2006, I quickly fell victim to an unexpected new role amongst my peers: Audio Gear Psychologist.
- Page 3 BAM! That works! On behalf of the Slate Pro Audio team, I hope you make inspiring music with the FOX dual mic preamplifier. Feel free to send me some audio clips or just say “hey” by emailing me at slate@stevenslate.com...
- Page 4 TABLE OF CONTENTS PAGE 5 FEATURES ........PAGE 6 WARRANTY INFORMATION .
-
Page 5: Features
FEATURES • Singe Rack Space • Solid State Design • Custom Input and Output Transformers • Two Discrete Combinable Preamp Circuits per Channel: Vintage and Modern • Level Controls • Hi-Z 1⁄4” Inch Instrument Input • -10dB Pad Switch • 48v Phantom Power •... -
Page 6: Warranty Information
If you cause damage to your Fox, that damage is not covered by the warranty. Don’t worry, we'll be here to fix your Fox for $75/hour plus parts. - Page 7 UNLESS PARTICULAR PURPOSE NON-INFRINGEMENT. PURCHASERS SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE REPAIR OR REPLACEMENT AS SPECIFIED HEREIN. IN NO EVENT WILL SLATE PRO AUDIO BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL CONSEQUENTIAL DAMAGES RESULTING FROM ANY DEFECT IN THE PRODUCT, INCLUDING LOST...
-
Page 8: Safety Information
Ventilation: Foxes like to keep it cool. When installing the unit in a rack or any other location, the Fox should be located so that its position does not interfere with its proper ventilation. It is normal for this unit to generate a degree of heat. - Page 9 In hopes that you might keep the visuals of your treasured analog Fox in tip top shape, follow these general rules when cleaning your Fox: • Turn the power OFF and unplug the unit • Gently wipe with a clean lint-free soft cloth •...
-
Page 10: Rack Mount Instructions
RACK MOUNT INSTRUCTIONS A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer. - Page 11 Do not use phantom with ribbons, moving coil, and other microphones which do not require phantom power. Use care, as well, to not insert or extract mic cables from the FOX when phantom power is active.
-
Page 12: Rear Panel
An IEC-type AC line-power receptacle for use with removable cords. Use only the power cord provided with the FOX unit or equivalent U/L approved type SV, SVT, SJ, or SJT AC power supply cord. Do not defeat the third pin earth ground. -
Page 13: Technical Data
TECHNICAL DATA Unit Specifications Input Impedance 1500 Ohms Gain Range 60 dB Noise (EIN) -128 dB Mic Phantom Mic Input Switchable 48 Volt Power Source Phase Switchable 0 -180 Instrument Input Jack ¼" , > 1 Megohm Input Impedance Rear panel connections Female XLR Mic Input, Parallel XLR Male/ ¼”...
