SPECIFICATION ShEET

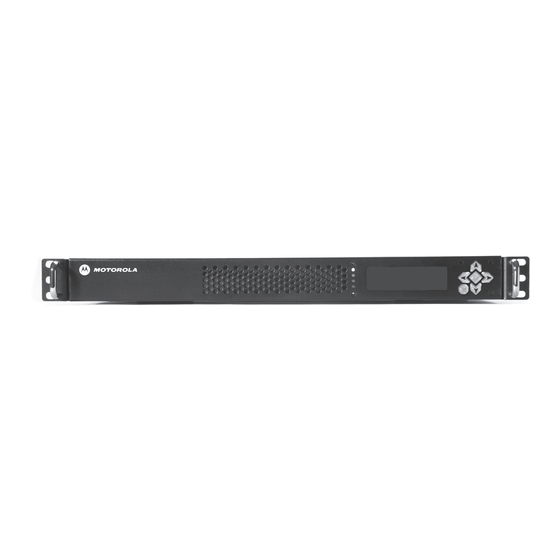

SE-5100/5150
AVC Multi-Format Video Encoder
High Performance MPEG-4 AVC HD/SD Receiver Encoder for VBR and CBR
Applications
highlights Include:
• A real-time, full resolution High Definition and
Standard Definition AVC video encoder
• Support for Main Profile Encoding @ Level 4 for
HD services and Main Profile @ Level 3 for SD
services
• Multi-pass CBR encoding
• Input flexibility
- Baseband SDI/HD-SDI (selectable HD/SD)
- MPEG-2/UDP/IP compressed input
- Off air RF input (on SE-5150)
• Integrated low resolution proxy (PIP)
• Motion Compensated Noise Reduction (MCTF) in
SD mode for enhanced video quality
• Constrained Fidelity (CF-CBR) capped VBR mode
• Statistical multiplexing capability
• Microsoft® Mediaroom™ conformance tested
• Ad insertion support
• Digital Turn Around for MPEG-2 inputs
• SNMP interface
• Web browser interface
For more information regarding any of these features
contact your Motorola sales representative.
This HD/SD platform combines receiver functions
with advanced encoding technology to deliver CBR
and VBR video services at exceptionally low bit
rates. In addition to supporting baseband video,
the compact 1RU platform offers support for analog
off air, ATSC digital terrestrial and direct MPEG-2
inputs.
The receiver functions dramatically enhance headend
architectures, reducing box count, simplifying signal
routing and redundancy support. This IP centric
platform delivers flexibility, value and exceptional
video quality from its advanced multi-pass encoding
system. The rich feature set includes HD upgrade
option, support for statistical multiplexing over an
IP infrastructure, highly efficient HE-AAC audio plus
Constrained Fidelity CBR, a capped VBR mode for
IPTV environments.
Additionally, the platform offers a low resolution
proxy output stream for program guide or monitoring
applications. This Linux based platform offers an ASI
option for the SE-5100 and is ideal for demanding
CBR and VBR applications.

Advertisement

   Related Manuals for Motorola SE-5100

   Summary of Contents for Motorola SE-5100

  • Page 1 This Linux based platform offers an ASI • Web browser interface option for the SE-5100 and is ideal for demanding CBR and VBR applications. For more information regarding any of these features...
  • Page 2 408-245-2150 MOTOROLA and the Stylized M Logo are registered in the U.S. Patent and Trademark Office. All other product or service names are the property of their registered owners. Microsoft is a registered trademark of Microsoft Corporation. Dolby is a registered trademark of Dolby Laboratories. Dolby Digital is manufactured under license from Dolby Laboratories. © Motorola, Inc. 2007 All rights...
