Monarch 433TSPW1K Manual

MONARCH 433TSPW1K
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions
CONTENTS
1 - TRANSMITTER OVERVIEW
1A - General information
1B - Technical specifications
1C - Main components
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
1A - General information
The Transmitter Solutions - Monarch transmitter is a key chain style mini
transmitter operating at 433,92 MHz. It has been designed for the
control of automatic closing systems and anti-burglar systems, thanks
to its very high security coding system (KeeLoq® Hopping code).
The code sent by the transmitter changes at each activation, avoiding
any scanning and copying risk. A special algorithm allows to keep
synchronized transmitter and receiver.
The transmitter can operate with many receivers of the range
Transmitter Solutions - 433R. Ask your installer or reseller the product
which best fits your application. The output of the receivers can be either
wiegand 26 bit ( to communicate with access control systems ) or 1-2-4
relay with NO - NO/NC output. The CR 2016 lithium batteries of the
transmitter have a shelf life of about 6 months. The product fully
complies with Part 15 of FCC Regulations and the European Directives
99/05/CE, 89/336/CEE, 73/23/CEE.
1B - Technical specifications
Operating frequency
Number of keys:
Battery :
Battery life:
Security code:
Number combinations :
Operating temperature:
Overall dimensions:
Weight:
1C - Main components
Red
LED
Dark grey
case

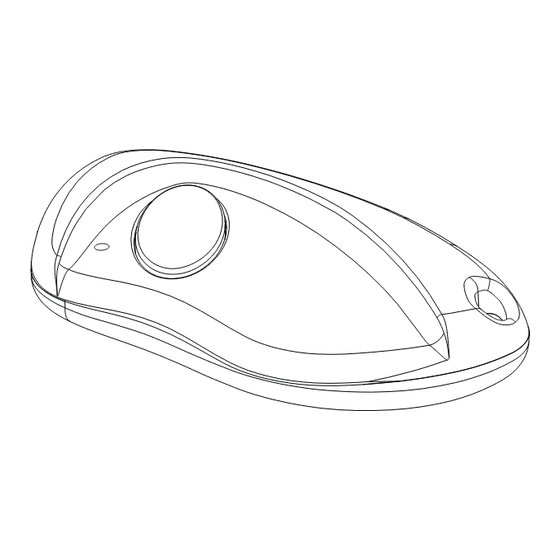

Fig. 2
433,92 MHz
1
2 x 3V lithium batteries CR2016
18 ÷ 24 months
Keeloq® Hopping code
2exp64
-20°F÷+131°F (-20°C÷+55°C)
2.4"x1.4"x0.51" (61x36x13 mm)
0.49 oz. (14 gr.)
Dark red
push-button
Key ring
holder
