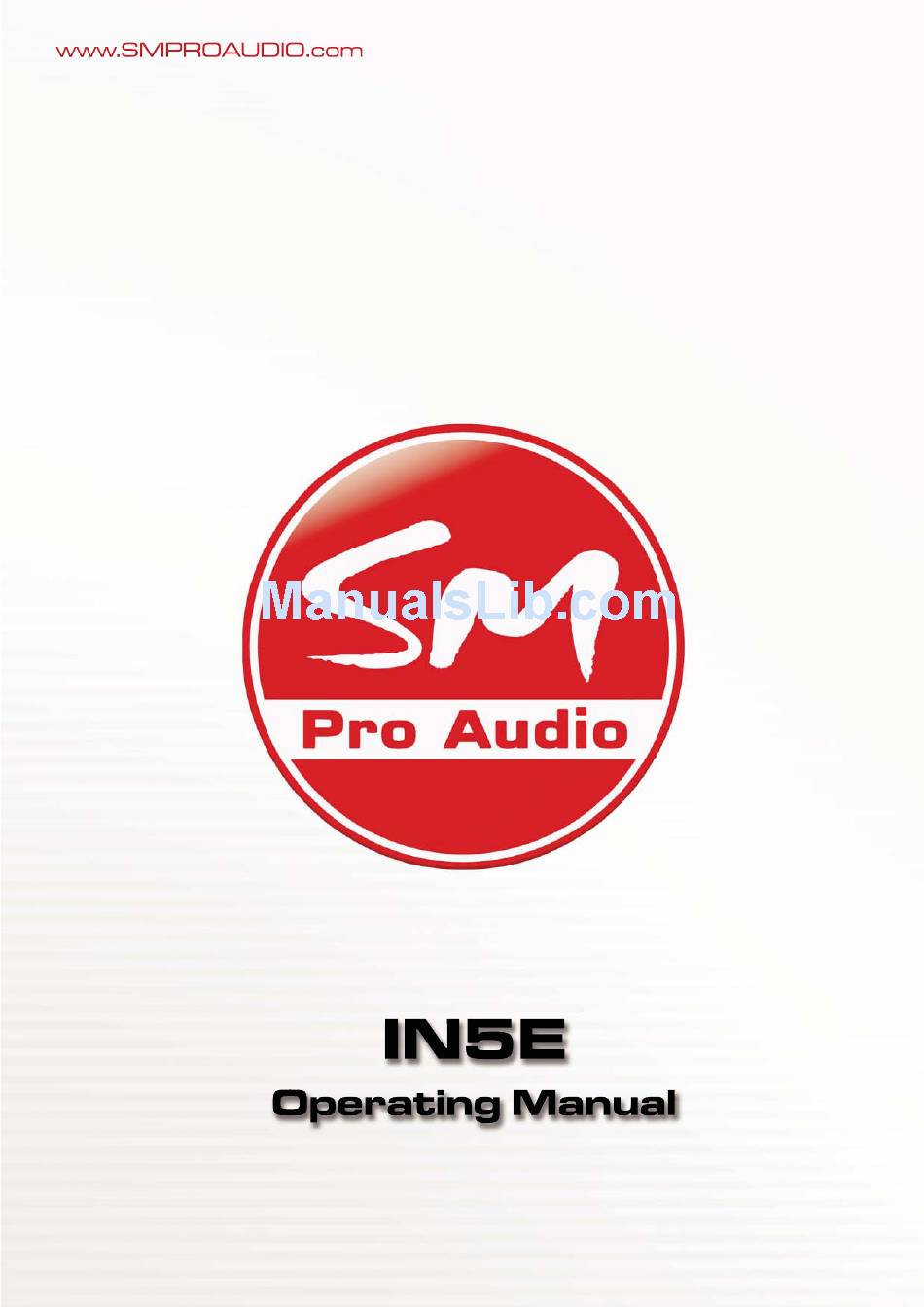

SM ProAudio IN5E Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN5E and is the answer not in the manual?

Questions and answers

Summary of Contents for SM ProAudio IN5E

  • Page 2: Safety Instructions

    SAFETY INSTRUCTIONS CAUTION: To reduce the risk of electrical shock, do not remove the cover or rear panel of this unit. No user serviceable parts inside. Please refer servicing to qualified personnel only. WARNING: To reduce the risk of fire or electrical shock do not expose this appliance to rain or moisture. DETAILED SAFETY INSTRUCTIONS: All safety and operation instructions of this manual should be read and adhered to before operation.

  • Page 3: Main Features And Foreword

    It is suitable for mixing various analog audio signals to a high quality recording output channel in either high quality low noise analog or pristine 24-bit 96 kHz digital format via USB. This makes the IN5E to a tru- ely high quality audio interface which can be directly connected to a computer. In addition to this, the...

  • Page 4: Table Of Contents

    Stereo headphone amplifiers Master volume section Power switch ~ Power on/off switch Application Guide The Purpose of the SM IN5E The SM IN5E as a recording interface unit The SM IN5E as a standard mixer Specifications Warranty Table of Contents...

  • Page 5: Introduction

    Functionality - Versatility - Mix - Record - Monitor - Convert - Inject and Digitize!!! The new IN5E from SM Pro Audio covers a huge range of applications for use in the home/project stu- dio. It is suitable for mixing various analog audio signals to a high quality recording output channel in either high quality low noise analog or pristine digital format via USB.

  • Page 6: Installation

    IN5E. This output signal carries the source signal from any/all of the inputs on the front of the IN5E, or a mixed signal including the inputs on the front and a source from the the REC inputs on the rear.

  • Page 7: Front Panel Connections And Control Knobs/Switches

    With just one standard CAT5 cable it is now possible to transmit up to three channels of audio. Perfect, if you are going to use the IN5E as recording inter- face in a studio. No more cable hassles and fear of broken audio cables during a recording session. This new connection is truely passive without any influences on th sound! Just check your local dealer and www.violetaudio.com for compatible products.

  • Page 8: Stereo Headphone Amplifiers

    Step 3 Depress the REC switch on the front panel of the IN5E for the microphone channel you are using to direct the signal to your REC outputs. This will send the signal from the microphone directly to your recording device.
  • Page 9 The IN5E can act as a pretty nifty Interface for your computer. As all major operating systems come with plug and play it’s just about connecting the IN5E via USB cable. As no drivers are needed the IN5E works with low latency drivers (Core Audio) within your Mac OS X System. Under Windows we recommend that you install the Freeware ASIO4all (www.asio4all.com) to have decent ASIO drivers within your DAW.

  • Page 10: Specifications

    1 3/4" (44.5 mm) * 19" (482.6 mm) * 8 1/2" (217 mm) Net weight approx. 3.25 kg SM ProAudio is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown.

  • Page 11: Warranty

    9. WARRANTY 9.1 WARRANTY CARD &/OR WEBSITE REGISTRATION To be protected by this warranty the purchaser of the product must complete an SM Pro Audio product registration procedure. Product registration is available via two methods: - Complete and return the enclosed warranty card within 14 days of the date of purchase to SM Pro Audio (see address below).
  • Page 12 9.4 WARRANTY REGULATIONS - Warranty can only be serviced when accompanying proof of purchase is provided. Dealers invoice and date stamp required. - SM Pro Audio will endeavor to repair or replace any product under the terms of this warranty within 30 days of receipt of the product at SM Pro Audio.
  • Page 13 EG-Konformitätserklärung Hiermit wird bestätigt, dass das Produkt SM Pro Audio IN5E den Anforderungen entspricht, die in der Richtlinie des Rates zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über die elektromagnetische Verträglichkeit (89/336/EWG) sowie in der Richtlinie des Rates betreffend elektrische Betriebsmittel zur Verwendung innerhalb bestimmter Spannungsgrenzen (73/23/EWG) festgelegt sind.
