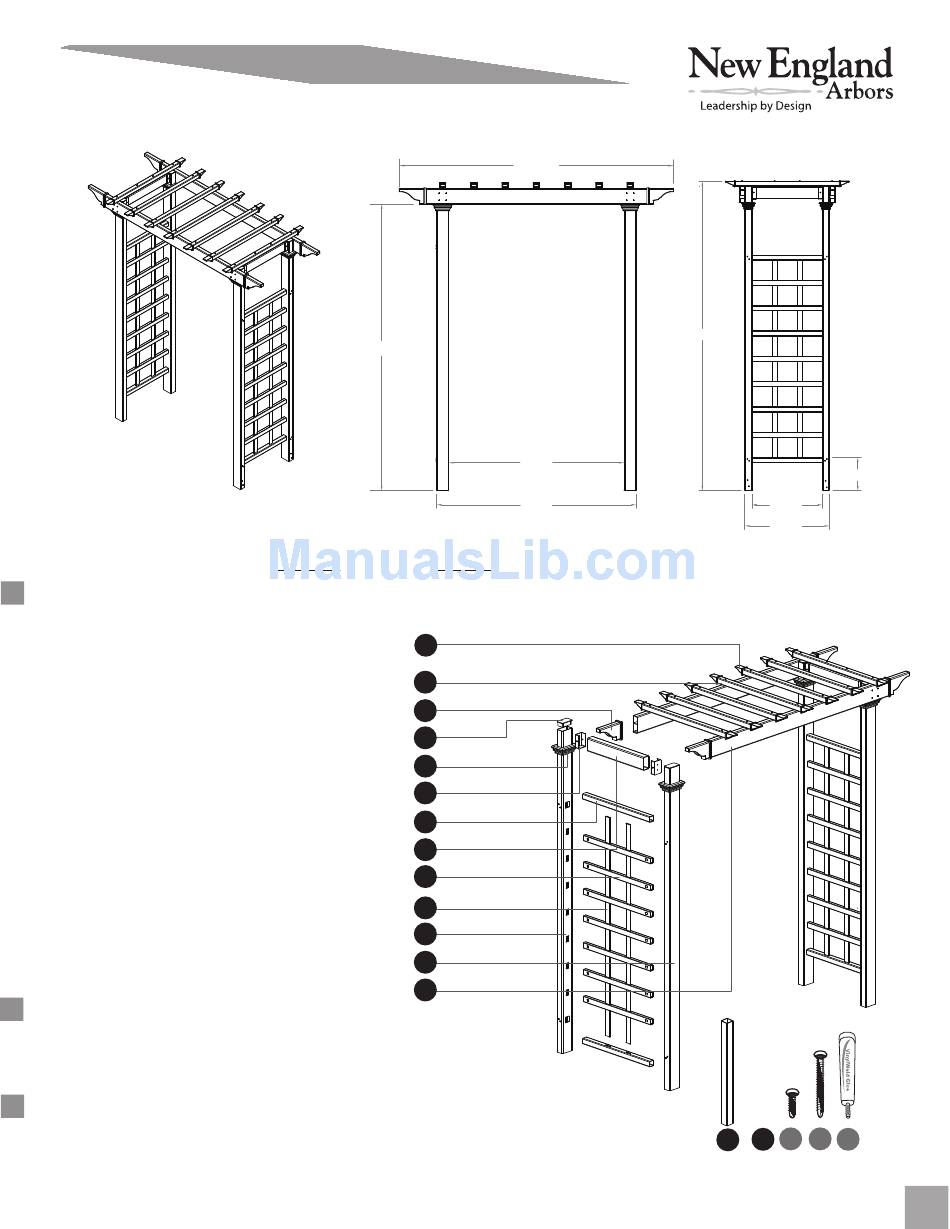

A S S E M B LY I N S T R U C T I O N S

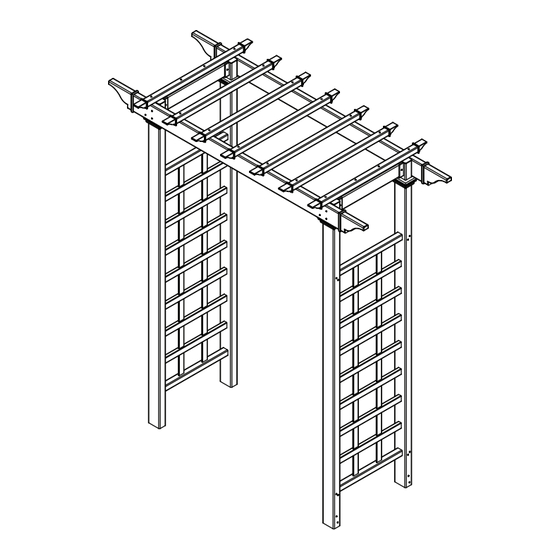

The Carolina Arbor
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Pergola Filter end caps (14)
2. Pergola Filters (7)
3. Pergola Beam end caps (4)
4. Post insert caps (4)
5. Post trim (4)
6. Brace Bracket (4)
7. Side Panel Horizontal Rails (4)
8. Braces (2)
9. Side Panel Horizontal Mid-Rails (14)
10. Side Panel Vertical Spindles (4)
11. Right Posts (2)
12. Left Posts (2)
13. Beams (2)
14. Mounting Stakes (4)
15. Hardware (in plastic bag)
a)
5/8" Self-Auguring Stainless Steel Screws (8)
b)
3" Self-Auguring Stainless Steel Screws (66)
c)
Tube of Vinyl Glue (1)
Tools You Will Need
• Cordless Drill
• Level
• Hammer
• Stool or Short Ladder
• Tape Measure
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to
avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.
£
¢
¨
¡
¢
£
¤
¥
¦
¤
§
¥
¦
¤
£
¥
¦
1
2
3
4
5
6
7
8
9
10
11
12
13
www.newenglandarbors.com
¥
¦
£
¢
£
¤
¥
¦
14
Meijer.com
¡
§
¥
¦
©
§
¥
¦
©
¥
¦
15 a
c
b
Not to Scale
1
Ver 1.0/DEC 2012
Advertisement
Related Manuals for New England The Carolina Arbor
Summary of Contents for New England The Carolina Arbor
-
Page 1: General Information
Meijer.com A S S E M B LY I N S T R U C T I O N S The Carolina Arbor www.newenglandarbors.com £ ¢ ¨ ¥ ¦ £ ¢ £ ¤ ¥ ¦ ¡ ¢ £ ¤ ¥... - Page 2 Meijer.com S T E P O N E Assemble the Side Panels www.newenglandarbors.com Layout the horizontal bottom rail and insert the two long vertical spindles followed by seven of the middle rails. The spacing should be roughly 5 1/2” apart. Subsequently, place the horizontal top rail over the two long vertical spindles as shown aside.
- Page 3 Meijer.com S T E P T W O www.newenglandarbors.com Connect Beams to Side Panels Temporarily place the bracket and brace between the post as shown. ensure that the three top surfaces (beam, post insert cap and brace) are flush to each other.
- Page 4 Meijer.com S T E P T H R E E Connect Filters and Pergola Ends For added stability, fasten two-3” screws on top of each end filters into the braces as shown. Fasten the seven filters with the screws provided, aligning To secure post trim into place, apply a generous amount of them to the pre-drilled holes on top of the beams as shown.
-
Page 5: Arbor Installation
Meijer.com S T E P F I V E Arbor Installation Arbors must be well secured to prevent tipping over from wind load etc. We have provided four ground anchors for securing the arbor either into the ground or a concrete footing. In some cases it may be acceptable to secure the arbor to an existing structure such as a fence post.
