92-2587-01 Rev.A
Wired/Wireless LAN Option

Advertisement

loading

Summary of Contents for Oneil I-class Mark II

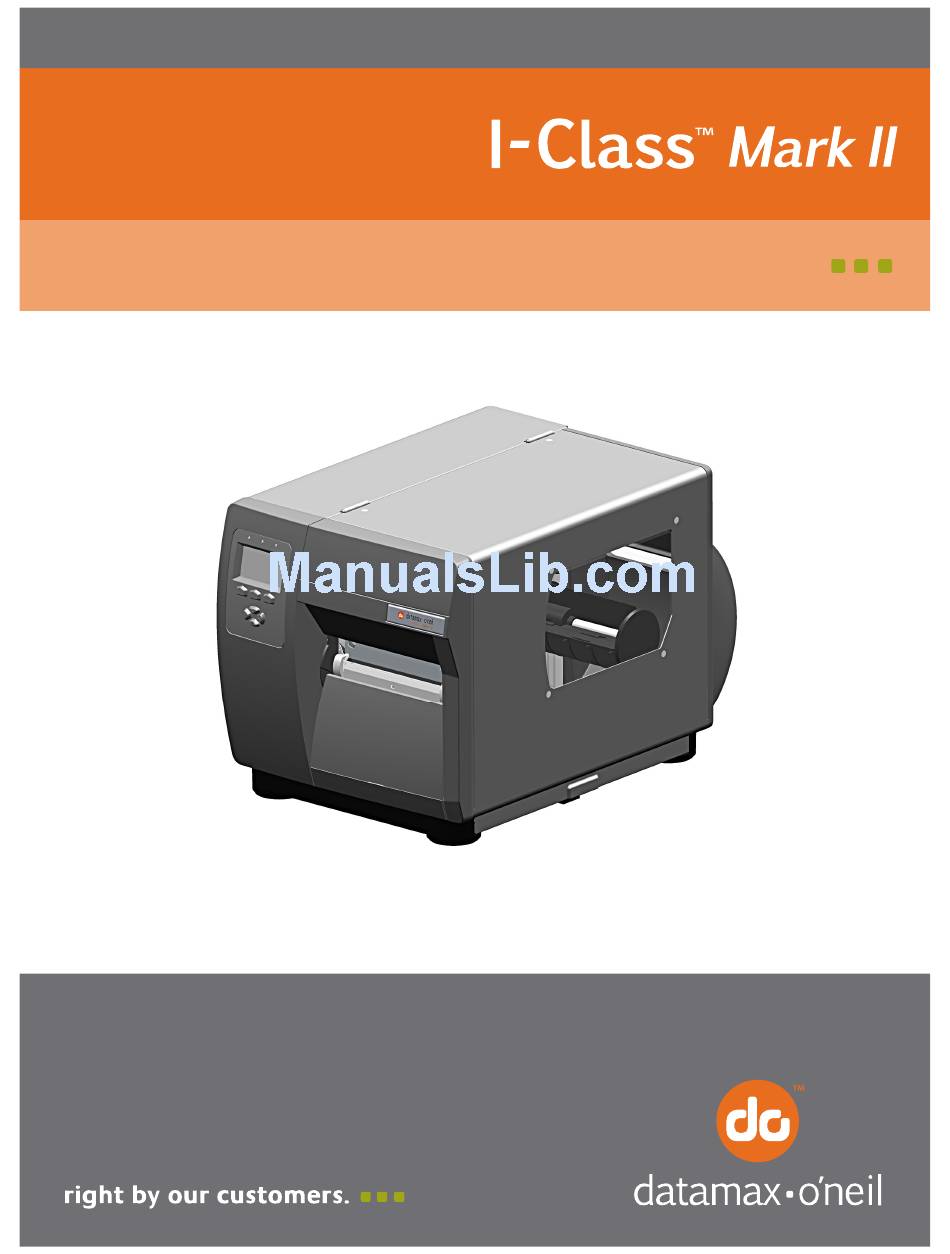

  • Page 1 92-2587-01 Rev.A Wired/Wireless LAN Option...
  • Page 3: Tools Required

    Overview This document describes the installation and use of the Wired/Wireless LAN option for the I- Class Mark II printer. Follow the steps to begin installing the option. For safety and to avoid equipment damage, turn OFF the power switch and unplug the AC power cord from the printer before starting this installation.
  • Page 4: Installing The Option

    Installing the Option Install the LAN Card as described below: A) Turn off and disconnect the power cord from the printer. Remove the three Screws from the left side cover of the printer. B) Open the printer’s cover, loosen (do not remove) the two Screws on the inside of the printer and lift the Cover Assembly up and off the printer.
  • Page 5 Cover Plate C) Remove the 5mm Screw and Cover 5mm Screw Plate from the rear of the printer. D) Install the two 6mm Standoffs into the main board in the locations shown. Standoffs...
  • Page 6 E) Install the LAN Card into the printer. First insert the “Port” end into the cut-out in the rear of the printer. Then pivot the LAN Card onto the two Standoffs. F) Install the two 5.5mm Nuts. 5.5mm Nuts G) LAN Card installation is complete. If your kit contains the Wireless Option, Proceed to “Installing Wireless Module and Antenna”...
  • Page 7 Installing Wireless Module and Antenna Install the Wireless Module and Antenna as described below:: A) Orient the Wireless Module as shown and insert it into the Module Connector, be sure the Wireless Module is fully seated. B) Install the 2.5mm Socketed Hex Screw in the hole directly below the Wireless Module. Wireless Module Socket...
  • Page 8 D) Insert the Antenna Connector through the hole in the printer’s Back Panel. E) Re-install the Nut and Washer onto the Antenna Connector and tighten using a 5/16” or 8mm Wrench. F) Connect the Antenna Connector Wire to the connector on the Wireless Module. Back Panel Antenna...
  • Page 9 G) Screw the Antenna onto the Antenna Connector and pivot the Antenna up for best reception. Antenna Antenna H) Wireless installation is complete. Re-install the printer’s cover and refer to the Operator’s Manual for connection and configuration information.
