HotBrick Firewall VPN SoHo 401 VPN Quick Install Manual

Shared broadband internet access vpn gateway 3-port switching hub, dmz port
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

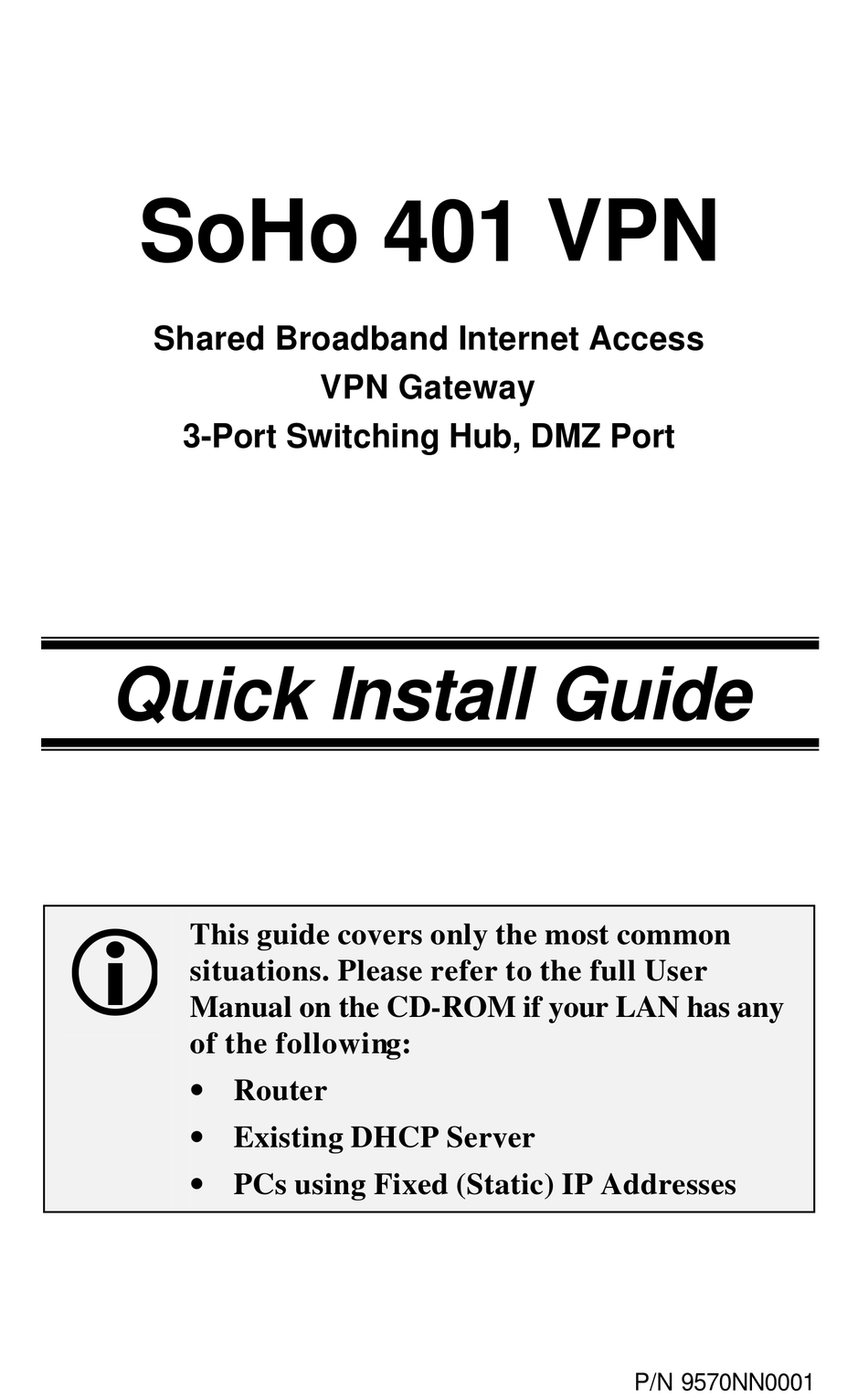

SoHo 401 VPN
Shared Broadband Internet Access
3-Port Switching Hub, DMZ Port

Quick Install Guide

i
This guide covers only the most common
situations. Please refer to the full User
Manual on the CD-ROM if your LAN has any
of the following:
VPN Gateway
Router
Existing DHCP Server
PCs using Fixed (Static) IP Addresses
P/N 9570NN0001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Firewall VPN SoHo 401 VPN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HotBrick Firewall VPN SoHo 401 VPN

  • Page 1: Quick Install Guide

    SoHo 401 VPN Shared Broadband Internet Access 3-Port Switching Hub, DMZ Port Quick Install Guide This guide covers only the most common situations. Please refer to the full User Manual on the CD-ROM if your LAN has any of the following: Router Existing DHCP Server PCs using Fixed (Static) IP Addresses...

  • Page 2: Physical Installation

    Requirements DSL or Cable modem for broadband Internet access. Standard Network cables. TCP/IP network protocol installed on each PC. Setup ΠPhysical Installation 1. Ensure the Soho 401 VPN and the DSL/Cable modem are powered OFF before commencing. Leave your DSL/Cable modem connected to its wall socket (phone line or cable input).
  • Page 3 If desired, connect a PC (server) to the DMZ port. To use multiple servers, use a standard LAN cable to con- nect the DMZ port to a normal port on another hub, and connect your servers to the hub. PCs connected to the DMZ port are isolated from your LAN.
  • Page 4 Specified (Fixed) IP Address PPPoE PPTP, Big Pond (not used in USA) 5. On the final screen of the Wizard, run the test and check that an Internet connection can be established. If the connection fails, check both your data and the Cable/DSL modem.

  • Page 5: Internet Access

    • Internet Access For Windows 9x/ME/2000 1. Select Start Menu - Settings - Control Panel - Internet Options. 2. Select the Connection tab, and click the Setup button. 3. Select "I want to set up my Internet connection manually, or I want to connect through a local area network (LAN)" and click Next.
  • Page 6 Soho 401 VPN 's DHCP Server. 1. Start your X Windows client. 2. Select Control Panel - Network 3. Select the "Interface" entry for your Network card. Nor- mally, this will be called "eth0". 4. Click the Edit button, set the "protocol" to "DHCP", and save this data.
