Voice Solo XT VSM-200P XT User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
VSM-200P XT
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the VSM-200P XT and is the answer not in the manual?

Questions and answers

Summary of Contents for Voice Solo XT VSM-200P XT

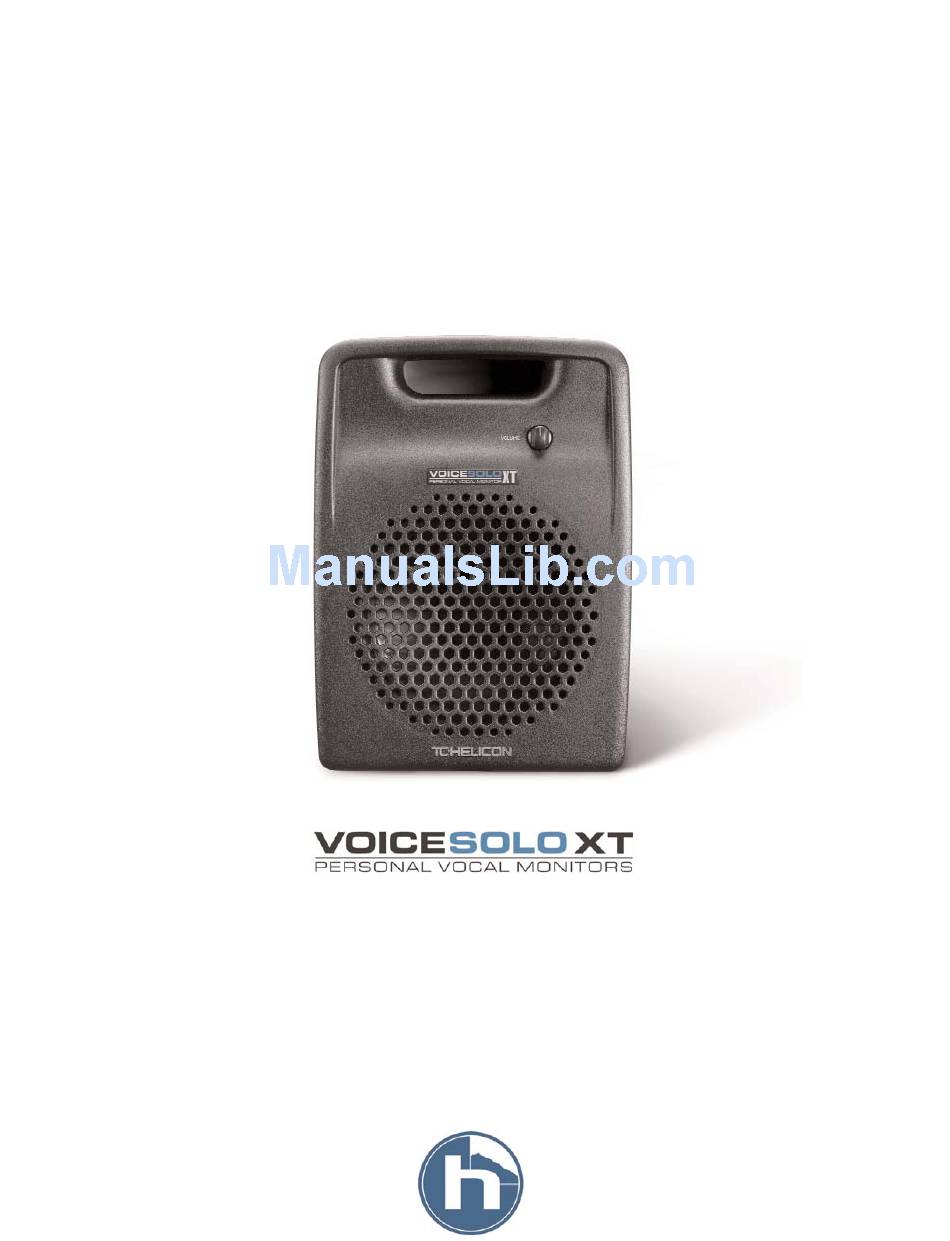

  • Page 1 VSM-200P XT USER MANUAL...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with an arrowhead symbol within an The exclamation point within an equilateral triangle is equilateral triangle, is intended to alert the user to the intended to alert the user to the presence of important presence of uninsulated “dangerous voltage”...

  • Page 3: Table Of Contents

    Using VoiceSoloXT ... .13 Specifications ....15 Specifications, interface, and features are subject to change without notice due to continued product improvement VoiceSolo VSM-200P XT Rev 1.0 English version...

  • Page 5: Introduction

    Enjoy! VSM-200P XT Features: • Improved high frequency response in the critical 4 to 10 The TC-Helicon Team kHz range resulting in higher accuracy and smoother sound.
  • Page 6 Introduction Preliminary Recommendations The VoiceSoloXT VSM series of monitors are capable of very high sound pressure levels (SPLs) especially at the close range when integrated onto a microphone stand. They were designed this way to be able to be loud enough to compete with live acoustic drum kits.

  • Page 7: Front Panel Diagram

    With less powerful amplifiers and high volume expectation, the most efficient path is to leave the VSM-200P XT volume control up full and for you to control volume with your mixer and/or amplifier. 2. Tuned bass port This allows VoiceSoloXT to produce low frequencies.

  • Page 8: Back Panel Diagram

    Chaining three VSM-200P XTs will lower the impedance to withstand for a very brief period of time. 2.6 Ohms and adding a fourth VSM-200P XT will bring the impedance to 2 Ohms. Consult your amplifier’s manual to confirm that it is capable of driving a 2 Ohm load.

  • Page 9: Mic Stand Mounting Procedure

    Mic Stand Mounting VoiceSoloXT Placement Options 1. Separate the boom from the stand by unscrewing the boom from the vertical shaft of the microphone stand. To VoiceSoloXT can be placed in 4 different ways. This do this, tighten the clutch you use to raise and lower the versatility allows you to use it as a mic stand mounted stand first.
  • Page 10 Mic Stand Mounting 3. Place VoiceSoloXT on the mic stand so the stand goes 5. Screw the Mic Boom Mount Attachment into your boom. into the hole on the bottom of the VoiceSoloXT. If you don’t need to mount VoiceSoloXT on a boom stand, you are finished with your setup.
  • Page 11 Mic Stand Mounting 7. Your VoiceSoloXT should now look like this. 2. Still holding the boom so that it does not swing away, turn the lock nut counter-clockwise until it’s snug against the bottom of the boom. Note that it’s not possible to completely tighten the lock nut with your fingers, the final action is done by swinging the boom snug against the lock nut.

  • Page 13: Using Voicesoloxt

    Using VoiceSoloXT Introduction reduced sensitivity at the back-sides of the mic, there is more sensitivity directly at the back of the mic. The following paragraphs should be read at least once to learn more about safe and successful use of VoiceSoloXT. •...

  • Page 15: Specifications

    Specifications Connectors 2 paralleled Speakon ® combo jacks that accept Speakon or 1/4” connectors Speaker Speaker: 6.5 inch ICT custom-designed point source driver including inductively coupled tweeter Nominal impedance: 8 ohms 120 Watt Program / 240 Watt Peak power handling Sensitivity (I Watt @ 1 meter): 90 dB (1 kHz octave band) Conical dispersion: 90 degrees Frequency response: 120 Hz–...
