  • Page 1 ® ktmp1 Electronic Drum/Percussion Pad Sound Module Owner’s Manual...
  • Page 2 INFORMATION FOR YOUR SAFETY! PRECAUTIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: PLEASE READ CAREFULLY BEFORE PROCEEDING (1) this device may not cause harmful interference, and (2) this device must accept any interference received, Please keep this manual in a safe place for future reference.

  • Page 3: Table Of Contents

    Contents 1. Overview 2. Panel Description 2.1 Front Panel Description 2.2 Rear Panel Description 3. Basic Operations 3.1 Adjust the pad voice tuning 3.2 Adjust the reverb level 3.3 Assign an instrument to a pad 3.4 Adjust the panning of pad voices 3.5 Adjust the sensitivity of a pad 3.6 Adjust the level of a pad 3.7 Adjust the midi note of a pad...

  • Page 4: Overview

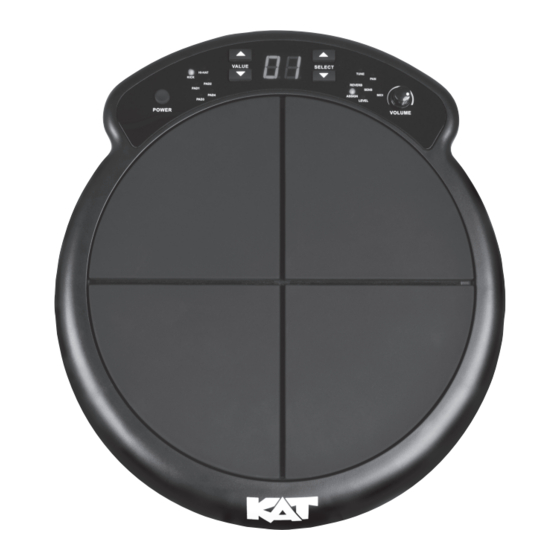

    1. Overview The KAT KTMP1 is a self-contained electronic percussion instrument with four drum pads, 50 sounds, audio and trigger I/O. The product is mountable using the included Module Mount or a standard snare drum stand for use in drum, percussion, and other performance setups.

  • Page 5: Rear Panel Description

    12. [KICK] Jack: Connect to external kick trigger using 1/4 mono cable. 13. [KICK SEL] Switch: Select the kick style, piezo or switch. (KAT Bass Drum Trigger - Sold Seperately) 14. [MIDI OUT] Jack: Connect to other MIDI DEVICE. 15. [USB] Jack: Connect to a computer that utilizes USB 2.0 (Note - USB 3.0 may not be compatible.)
  • Page 6 Typical Plug-in Scenarios Electrical Power Supply (supplied) USB 2.0 Data Output Headphones MIDI Output to Computer via Auido Hi-Hat Controller Interface, Pedal (KT-HC1 sold Keyboard separately) Controller, Pad Controller, Drum Machine Speakers, PA, Mixing Console, Direct Box, Monitors Bass Drum Trigger Pedal (sold separately)

  • Page 7: Basic Operations

    3. Basic Operations 3.1 Adjust the pad voice tuning Press: [SELECT+] or [SELECT-] button to select the tune mode, the TUNE LED will light up, when striking a pad, the 2-Digi-LED will display the tune level, press the [VALUE +] or [VALUE -] to adjust the tune level. [-4,-3,-2, -1, 00, 01, 02,03,04] The display is: 3.2 Adjust the reverb level...

  • Page 8: Adjust The Sensitivity Of A Pad

    3.4 Adjust the panning of the pad voice Press: [SELECT+] or [SELECT-] button to select the pan mode, the PAN LED will light up, when striking a pad, the 2-Digi-LED will display the pan level, press the [VALUE +] or [VALUE -] to adjust the pan level. [L4,L3,L2, L1, C, R1, R2,R3,R4] The display is: 3.5 Adjust the sensitivity of a pad...

  • Page 9: Adjust The Midi Note Of A Pad

    The pad will be assigned to HI-HAT pad when the voice number is H1 or H2. The open and close sounds of the Hi-Hat can now be controlled using the KAT KT-HC1 Hi-Hat Controller Pedal. (KT-HC1 Hi-Hat Controller - Sold Seperately) 2.

  • Page 10: Appendixes

    4. Appendixes 4.1 Voice List Voice List: Name Midi Note Name Midi Note Acoustic Bass Drum 1 36 Bongo High Slap Acoustic Bass Drum 2 36 Bongo High Dance Bass Drum 2 Bongo Low Snare 1 Bongo Low Slap Snare 2 Cascara Rap Snare Maracas...

  • Page 11: Midi Implementation Chart

    • : YES × : NO ® KATPERCUSSION.COM ® ® ©2013 KAT Percussion. KAT Percussion is a registered trademark of Alternate Mode, Inc., and is used herein under license. All rights reserved. All specifications are subject to change without notice.
