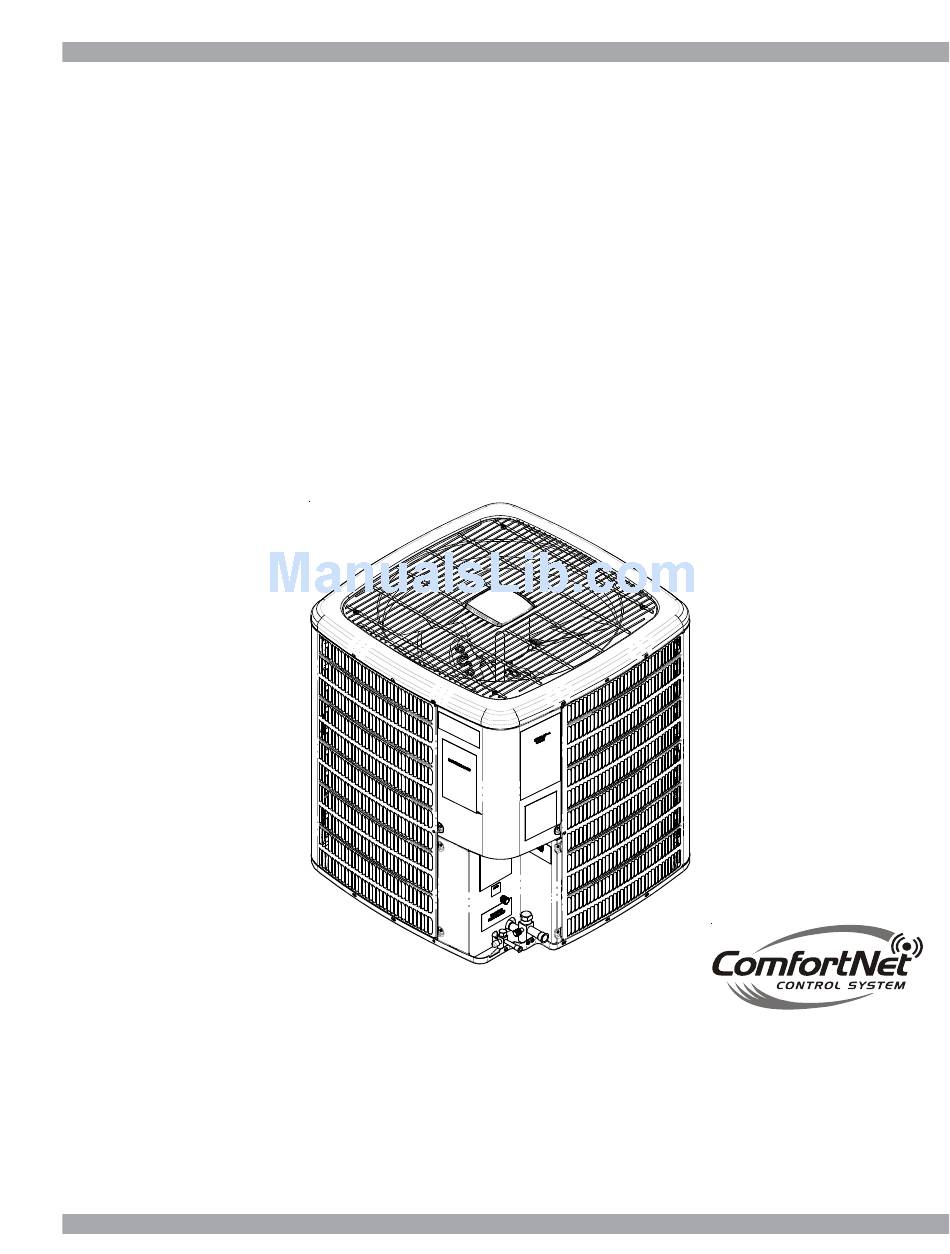

Split System Heat Pumps
•
Refer to Service Manual RS6200007 for installation, operation, and troubleshooting information.
•
All safety information must be followed as provided in the Service Manual.
•
Refer to the appropriate Parts Catalog for part number information.
•
Models listed on page 3.
This manual is to be used by qualified, professionally trained HVAC technicians only.
Goodman does not assume any responsibility for property damage or personal injury due to
improper service procedures or services performed by an unqualified person.
*SZC 16 SEER
Copyright © 2009 -
2010
Goodman Manufacturing Company, L.P.
AL
AL
AL
AL
RT6214005r1
October 2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the SZC 16 SEER and is the answer not in the manual?

Questions and answers

Summary of Contents for ComfortNET SZC 16 SEER

  • Page 1 TECHNICAL MANU TECHNICAL MANU TECHNICAL MANU AL TECHNICAL MANU TECHNICAL MANU *SZC 16 SEER Split System Heat Pumps • Refer to Service Manual RS6200007 for installation, operation, and troubleshooting information. • All safety information must be followed as provided in the Service Manual.

  • Page 2: Product Identification

    PRODUCT IDENTIFICATION The model number is used for positive identification of component parts used in manufacturing. Please use this number when requesting service or parts information. BRAND: MINOR D: Deluxe REVISION: Goodman® A: Initial Release SEER: Brand SEER Rating A: Amana® Brand MAJOR REVISION:...
  • Page 3 PRODUCT IDENTIFICATION The model number is used for positive identification of component parts used in manufacturing. Please use this number when requesting service or parts information. ASZC160241A* DSZC160241A* ASZC160361A* DSZC160361A* ASZC160481A* DSZC160481A* ASZC160601A* DSZC160601A* ASZC160601B* DSZC160601B* * Indicates minor revision & is not used for order entry or inventory management The United States Environmental Protection Agency (“EPA”) has issued various regulations re- WARNING WARNING...

  • Page 4: Product Design

    PRODUCT DESIGN Models covered by this manual come with a new 4-wire com- This unit is for outdoor installation only. Refer to figure for municating PCB. When paired with a compatible communi- minimum clearances from the sides of the unit to full walls cating indoor unit and a communicating thermostat, these and other objects.
  • Page 5 HEAT PUMP SPECIFICATIONS *SZC160241A*-*SZC160601A* Cooling Capacity, BTUH 24,000 36,000 48,000 60,000 Compressor R.L. Amps 10.3 16.7 21.2 25.6 L.R. Amps 52.0 82.0 96.0 118.0 Low Pressure Switch Open 22 PSIG 22 PSIG 22 PSIG 22 PSIG Close 50 PSIG 50 PSIG 50 PSIG 50 PSIG High Pressure Switch...
  • Page 6 HEAT PUMP SPECIFICATIONS *SZC160601B* Cooling Capacity, BTUH 60,0 00 Compressor R.L. Amps 23 .0 L.R. Amps 118 .0 Low Pressure Switch Open 22 PSIG Close 50 PSIG High Pressure Switch Open 6 10 PSIG Close 4 20 PSIG Condenser Fan Motor Horsepower F.L.
  • Page 7 COOLING PERFORMANCE DATA *SZC160241A*-LOW STAGE...
  • Page 8 COOLING PERFORMANCE DATA *SZC160241A*-LOW STAGE...
  • Page 9 COOLING PERFORMANCE DATA *SZC160361A*-LOW STAGE...
  • Page 10 COOLING PERFORMANCE DATA *SZC160361A*-LOW STAGE...
  • Page 11 COOLING PERFORMANCE DATA *SZC160481A*-LOW STAGE...
  • Page 12 COOLING PERFORMANCE DATA *SZC160481A*-LOW STAGE...
  • Page 13 COOLING PERFORMANCE DATA *SZC160601A*-LOW STAGE...
  • Page 14 COOLING PERFORMANCE DATA *SZC160601A*-LOW STAGE...
  • Page 15 COOLING PERFORMANCE DATA *SZC160601B*-LOW STAGE...
  • Page 16 COOLING PERFORMANCE DATA *SZC160601B*-LOW STAGE...
  • Page 17 COOLING PERFORMANCE DATA *SZC160241A*-HIGH STAGE...
  • Page 18 COOLING PERFORMANCE DATA *SZC160241A*-HIGH STAGE...
  • Page 19 COOLING PERFORMANCE DATA *SZC160361A*-HIGH STAGE...
  • Page 20 COOLING PERFORMANCE DATA *SZC160361A*-HIGH STAGE...
  • Page 21 COOLING PERFORMANCE DATA *SZC160481A*-HIGH STAGE...
  • Page 22 COOLING PERFORMANCE DATA *SZC160481A*-HIGH STAGE...
  • Page 23 COOLING PERFORMANCE DATA *SZC160601A*-HIGH STAGE...
  • Page 24 COOLING PERFORMANCE DATA *SZC160601A*-HIGH STAGE...
  • Page 25 COOLING PERFORMANCE DATA *SZC160601B*-HIGH STAGE...
  • Page 26 COOLING PERFORMANCE DATA *SZC160601B*-HIGH STAGE...

  • Page 27: Performance Data

    PERFORMANCE DATA LOW STAGE *SZC160241A* / CA*F3636*6**+TXV / MBVC1600**-1** *SZC160361A* / CA*F3743*6**+TXV / MBVC1600**-1** Conditions: 80° IDB, 67° IWB @ 800 CFM, LOW STAGE Conditions: 80° IDB, 67° IWB @ 600 CFM, LOW STAGE Outdoor Total Sensible Latent Total Outdoor Total Sensible Latent...
  • Page 28 PERFORMANCE DATA HIGH STAGE *SZC160361A* / CA*F3743*6**+TXV/ MBVC1600**-1** *SZC160241A* / CA*F3636*6**+TXV/ MBVC1600**-1** Conditions: 80° IDB, 67° IWB @ 1200 CFM, HIGH STAGE Conditions: 80° IDB, 67° IWB @ 875 CFM, HIGH STAGE Outdoor Total Sensible Latent Total Outdoor Total Sensible Latent Total Temp.
  • Page 29 SPLIT SYSTEM HEATING PERFORMANCE LOW STAGE EXPANDED PERFORMANCE DATA MODEL: *SZC160241A* / CA*F3636*6** + TXV / MBVC1600**-1** HEATING OPERATION Outdoor Ambient Temperature 16.6 20.8 19.7 18.5 17.3 16.0 14.9 13.7 13.1 12.1 11.1 10.5 10.1 Delta T 30.2 28.6 26.9 25.2 24.1 23.3...
  • Page 30 SPLIT SYSTEM HEATING PERFORMANCE LOW STAGE EXPANDED PERFORMANCE DATA MODEL: *SZC160601B* CAPF4961D6 MBVC2000A - LOW STAGE HEATING OPERATION Outdoor Ambient Temperature 49.9 47.3 44.5 41.6 39.7 38.5 35.8 33.0 30.8 28.4 26.2 24.7 23.8 21.3 18.9 16.5 14.1 11.5 40.2 38.1 35.8 33.5...
  • Page 31 SPLIT SYSTEM HEATING PERFORMANCE HIGH STAGE EXPANDED PERFORMANCE DATA MODEL: *SZC160241A* / CA*F3636*6** + TXV / MBVC1600**-1** HEATING OPERATION Outdoor Ambient Temperature 30.2 28.6 26.9 25.1 24.0 23.3 21.6 19.9 18.7 17.3 15.9 15.0 14.4 13.0 11.5 10.0 Delta T 31.9 30.2 28.4...
  • Page 32 SPLIT SYSTEM HEATING PERFORMANCE LOW STAGE EXPANDED PERFORMANCE DATA MODEL: *SZC160601B* CAPF4961D6 MBVC2000A - HIGH STAGE HEATING OPERATION Outdoor Ambient Temperature 71.0 67.2 63.3 59.2 56.5 54.7 50.9 46.9 44.6 41.2 37.9 35.8 34.5 30.9 27.4 23.9 20.4 16.7 37.6 35.6 33.5 31.3...

  • Page 33: Heating Specifications

    HEATING SPECIFICATIONS LOW STAGE *SZC160361A*/CA*F3743*6**+TXV/MBVC1600**-1** *SZC160241A*/CA*F3636*6**+TXV/MBVC1600**-1** Conditions: 800 CFM Indoor Air @ 70°F DB, LOW STAGE Conditions: 600 CFM Indoor Air @ 70°F DB, LOW STAGE B asic Unit witho ut Capac ity of Unit B asic Unit witho ut Capac ity of Unit Outdoo r Outdoo r...
  • Page 34 HEATING SPECIFICATIONS LOW STAGE *SZC160601B* / CA*F4860*6A*+TXV/ MBE2000**-1 Conditions:1200 CFM @ 70°F DB, LOW STAGE Basic Unit without Capacity of Unit Outdoor Auxiliary Heat With KW of Auxiliary heat Ambient capacity °F. btuh 19.2 c.o.p. 14.4 49.94 4.17 66.31 82.69 99.07 115.45 47.27...
  • Page 35 HEATING SPECIFICATIONS HIGH STAGE *SZC160361A*/CA*F3743*6**+TXV/ MBVC1600**-1** *SZC160241A*/CA*3636*6**+TXV/ MBVC1600**-1** Conditions: 1200 CFM Indoor Air @ 70°F DB, HIGH STAGE Conditions: 875 CFM Indoor Air @ 70°F DB, HIGH STAGE Basic U nit without Cap acity o f Unit Basic U nit without Capacity of Unit Outdoor Outdoor...
  • Page 36 HEATING SPECIFICATIONS HIGH STAGE *SZC160601B* / CA*F4860*6A*+TXV/ MBE2000**-1 Conditions:1800 C FM @ 70°F DB, H IGH STAGE Basi c Unit without Capacity of Uni t Outdoor Auxiliary Heat With KW of Auxiliary heat Ambient capacity °F. btuh 19.2 c.o.p. 14.4 71.02 4.45 87.40...
  • Page 37 PERFORMANCE DATA PERFORMANCE TEST All data based upon listed indoor dry bulb temperature. .00 inches external static pressure on coil of outdoor section. Indoor air cubic feet per minute (CFM) as listed in the Performance Data Sheets: If conditions vary from this, results will change as follows: 1.

  • Page 38: Wiring Diagrams

    WIRING DIAGRAMS *SZC160[24-60]1AA/AB HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
  • Page 39 WIRING DIAGRAMS *SZC160[24-48]1AC, *SZC160601BA HIGH VOLTAGE! DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH. Wiring is subject to change, always refer to the wiring diagram on the unit for the most up-to-date wiring.
