Summary of Contents for Devolo dLAN 500 AVpro UNI

  • Page 2 ® devolo dLAN 500 AVpro UNI...
  • Page 3 © 2012 devolo AG Aachen (Germany) While the information in this manual has been compiled with great care, it may not be deemed an assurance of product characteristics. devolo shall be liable only to the degree specified in the terms of sale and delivery.

  • Page 4: Table Of Contents

    1 Before we get started ............5 Thank you for placing your trust in this devolo product......5 1.1.1...
  • Page 5 Warranty conditions ........... . . 28 devolo dLAN 500 AVpro UNI...

  • Page 6: Before We Get Started

    500 AVpro UNI. Chapter 4 gives you instruc- tions for networking and some application examples The dLAN 500 AVpro UNI is a network device that for using the dLAN 500 AVpro UNI efficiently. can use the existing wiring in place at the location of...
  • Page 7 The intended dLAN 500 AVpro UNI is connection to the dLAN network. b The intended use of the mains adapter for the dLAN 500 AVpro UNI is supplying power to the dLAN 500 AVpro UNI.

  • Page 8: Introduction

    The data to be transmitted via the dLAN is modulated ance with 802.3af, 15.4 watts output power). in a dLAN device for its transmission and sent as a Power is supplied to the dLAN 500 AVpro UNI via complex modulated signal via the wires. In doing so, ...

  • Page 9: The Two Dlan Modes

    MDU dLANs is not possible. The masters of the MDU dLANs are interconnected via Ethernet switches. Thus MDU dLANs are ideally suited for floor-by-floor networking (such as in hotels). Fig. 2: Structure with the MDU network segment devolo dLAN 500 AVpro UNI...

  • Page 10: Initial Use

    This chapter offers you all the information you need for dLAN AVpro manager. starting up your dLAN 500 AVpro UNI. It explains the functions of the device and how to connect it. This software and the corresponding manual are found on the provided CD.

  • Page 11: Package Contents

    To set up a dLAN network with 500 Mbps you need a dLAN device of type Before beginning to install your dLAN 500 AVpro UNI, dLAN 500 AVpro UNI for each network con- you should make sure that your delivery is not missing nection.

  • Page 12: Leds, Ports, Toggle Switches

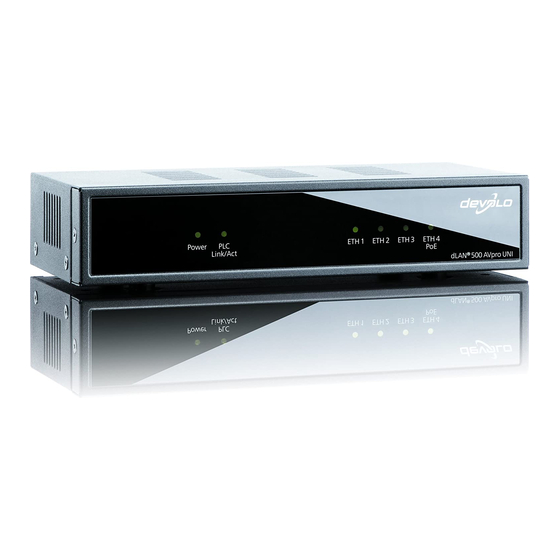

    PLC Link/Act The dLAN 500 AVpro UNI has six indicator LEDs on its b ETH1, ETH2, ETH3, ETH4. front: Fig. 4: LEDs on the front of the dLAN 500 AVpro UNI 3.3.1 LEDs Table 1: Function of the Power LED Status...
  • Page 13 'Peer-to-Peer' and 'MDU'. By default, the dLAN 500 AVpro UNI is operated in a dLAN which is organised in 'Peer-to-Peer' mode. In this mode, all connected dLAN devices can reach each other directly and transmit data to and from each other.
  • Page 14 The flashing of the 'ETH1' to 'ETH4' LEDs indicates that a data transmission to the corresponding interfaces is taking place, but does not reveal anything about the intensity of the data transfer at the respective interface. devolo dLAN 500 AVpro UNI...

  • Page 15: Ports

    14 Initial use 3.3.2 Ports Fig. 5: Ports On the back of the dLAN 500 AVpro UNI there are plug connector, you can also connect the tele- eight ports: phone cable here. b Four RJ45 Gigabit Ethernet jacks 'ETH1' to 'ETH4' When using telephone lines or two-wire of the Ethernet switches.
  • Page 16 PLC. Connect the dLAN 500 AVpro UNI to the mains adapter provided here. You may connect the mains ad- apter to the dLAN 500 AVpro UNI...

  • Page 17: Toggle Switch 'Tp/Coax Plc

    Move the toggle switch to 'TP/Coax' only if you will also use this setting for all devices in the dLAN (or in the corre- sponding dLAN segment). Otherwise the device immediately loses its dLAN connection! devolo dLAN 500 AVpro UNI...

  • Page 18: Connecting The Dlan 500 Avpro Uni

    Connect the dLAN 500 AVpro UNI to its mains adapter. Connect the mains adapter to the net- work cable and plug the power plug into a 230 V 3.5 Installing the dLAN AVpro...
  • Page 19 18 Initial use and thereby reliably secure the network against unau- thorised access. In the user manual of the dLAN AVpro mana- ger you will find additional descriptions and information on how to configure your dLAN network. devolo dLAN 500 AVpro UNI...

  • Page 20: All About The Network

    4.1 Networking and Internet access modulated in the frequency band from 2 to 68 MHz. If the dLAN 500 AVpro UNI units are operated on a co- Using the dLAN 500 AVpro UNI you can link network axial network, which is used not only for the data...

  • Page 21: Building Networking

    20 All about the network 4.2 Building networking With the dLAN 500 AVpro UNI you can flexibly use the power line and coaxial line) in a dLAN, use two dLAN existing lines in the building for data transmission. devices to build up a repeater for coupling these me- Even when using different cabling systems, the dLAN dia.
  • Page 22 Since there is no telephone jack in apartment No. 5, the dLAN connection is made here via the power line, and done so using a repeater consisting of two dLAN devolo dLAN 500 AVpro UNI...
  • Page 23 Fig. 9: Office connection via dLAN using the local telephone wiring In this example (see Fig. 9), various terminal devices of an office reach the local Internet connection by means of dLAN via the telephone wiring within the building. devolo dLAN 500 AVpro UNI...
  • Page 24 In this example (see Fig. 10), two buildings with spa- tially separated electric mains circuits are networked with one another via dLAN using a two-wire telephone cable, which means they can share an Internet connec- tion. devolo dLAN 500 AVpro UNI...

  • Page 25: Poe Operation

    24 All about the network 4.3 PoE operation The ETH4 port on the dLAN 500 AVpro UNI can provide a power supply in accordance with IEEE 802.3 af class '0' for a device connected to this. To do so, the PoE function of this port has to be enabled.

  • Page 26: Using Coaxial Filters

    If these in- terference signals impede other applications on the line, you have to use a filter. To decouple the dLAN 500 AVpro UNI signals from the transfer point of the TV signal, we recommend using a coaxial filter.
  • Page 27 26 All about the network devolo dLAN 500 AVpro UNI...

  • Page 28: Appendix

    To switch the device off, pull the power plug. liquid has been spilled on the device or b To disconnect the device from the power supply objects have fallen into the device. grid, pull the power plug. the device has been exposed to rain or water. devolo dLAN...

  • Page 29: Disposal Of Old Devices

    Rather, in Germany, they can be given to a period begins at the day of delivery from the devolo dealer. War- ranty services carried out by devolo do not result in an extension of municipal collection point free of charge. Contact your the warranty period nor do they initiate a new warranty period.
  • Page 30 Claims for compensation of lost profits, indirect or consequen- receipt. tial detriments, are excluded. devolo is not liable for lost data or retrieval of lost data in Suspension of the warranty cases of slight and ordinary negligence. All warranty claims will be deemed invalid...
  • Page 31 30 Appendix devolo dLAN...
  • Page 32 7 Management software 17 dLAN adapter 8 Master 8 dLAN AVpro manager 18 MDU 8 dLAN signal 25 Multiple Dwelling Unit 8 Docsis modem 25 Network segment 8 Encryption 5 Expert mode 8, 12 devolo dLAN 500 AVpro UNI...
  • Page 33 Repeater 20 Warranty terms 5 RJ11 14 Windows 17 RJ45 14 Safety notes 5 Set-top box 19 Signal level 25 Slave 8 Spring terminal 7, 14 Standard mode 12 Streaming HDTV 5 System requirements 10 devolo dLAN 500 AVpro UNI...
