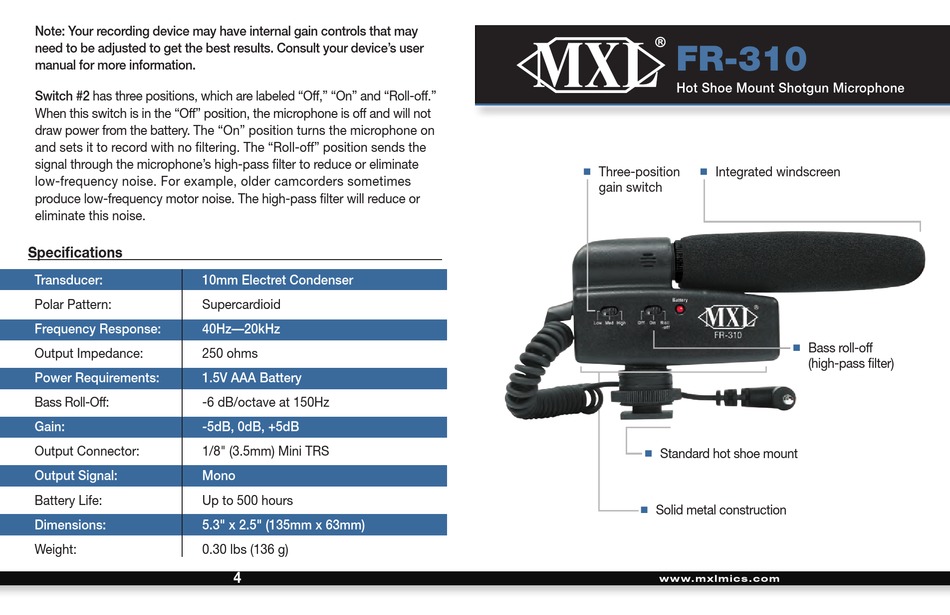

MXL FR-310 Specifications

Note: Your recording device may have internal gain controls that may
need to be adjusted to get the best results. Consult your device's user
manual for more information.
Switch #2 has three positions, which are labeled "Off," "On" and "Roll-off."
When this switch is in the "Off" position, the microphone is off and will not
draw power from the battery. The "On" position turns the microphone on
and sets it to record with no filtering. The "Roll-off" position sends the
signal through the microphone's high-pass filter to reduce or eliminate
low-frequency noise. For example, older camcorders sometimes
produce low-frequency motor noise. The high-pass filter will reduce or
eliminate this noise.

Specifications

Transducer: 10mm Electret Condenser
Polar Pattern: Supercardioid
Frequency Response: 40Hz—20kHz
Output Impedance: 250 ohms
Power Requirements: 1.5V AAA Battery
Bass Roll-Off: -6 dB/octave at 150Hz
Gain: -5dB, 0dB, +5dB
Output Connector: 1/8" (3.5mm) Mini TRS
Output Signal: Mono
Battery Life: Up to 500 hours
Dimensions: 5.3" x 2.5" (135mm x 63mm)
Weight: 0.30 lbs (136 g)
4

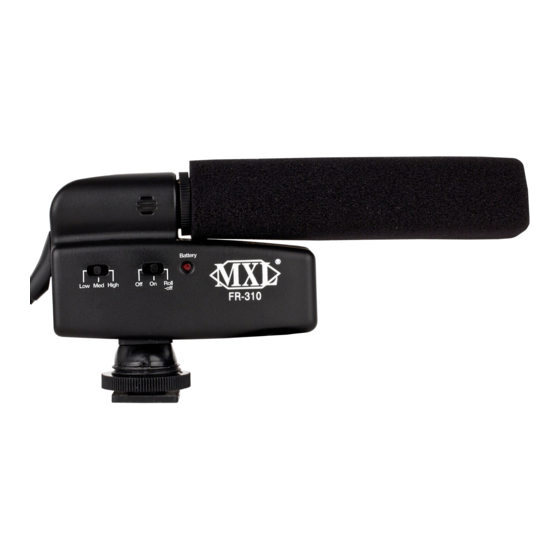

FR-310
Hot Shoe Mount Shotgun Microphone
Three-position Integrated windscreen
 
gain switch
Standard hot shoe mount

Solid metal construction

www.mx lmi cs .c om
Bass roll-off

(high-pass filter)
