Schlage WCO100 Quick Manual

24129744

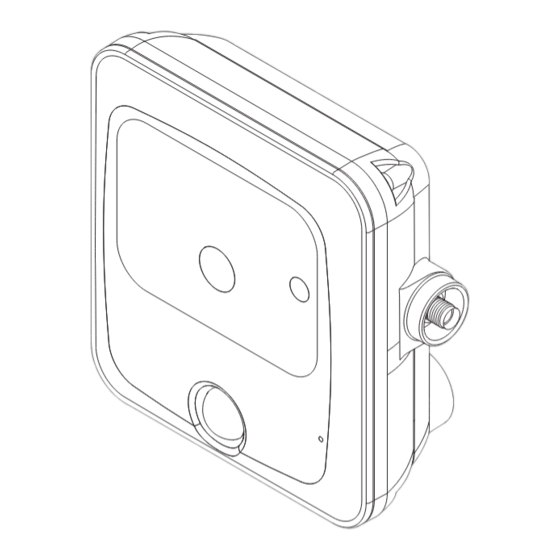

WCO100 Schlage Home
Outdoor Camera
Light
Sensor
Lens
Power LED
PIR Sensor
Microphone
(not used)
1
Attach antenna to the camera
• Turn the antenna clockwise on the antenna mount.
• The antenna should be in an upright position for best
signal reception.
2
Locate MAC ID, Ethernet and Power.
Write the MAC ID in the box at the top of this page for later reference.
DO NOT plug in Ethernet or power before enrolling!
3
Log into your account at www.mynexia.com
• Camera can be used only with Nexia Home Intelligence system.
• Account must be active before continuing. See nexiahome.com for more information.
4
Enroll the Camera
a. Make sure Ethernet and power are NOT plugged into camera before you begin.
b. On www.mynexia.com, click the Cameras tab.
Note: If this is a new account: Select "Schlage Home Outdoor Camera" in the Enrollment list. Follow on-screen instructions.
c. Click the Add Camera button.
d. Follow the on-screen instructions.
e. Click on Edit Camera Settings to complete wireless setup.
Antenna Ethernet
Port
MAC ID
Power
Port
Reset Button
WCO100 Camera MAC ID
0 0 0 E
Twelve (12) characters
Package Contents:
• Outdoor Camera
• External Antenna
• 56 inch (142 cm) Power Adapter
• Swivel Connector
• Mounting Stand
• Mounting Base
• Mounting Screws (3)
• Ethernet Cable (with water sealing cap)
• 118 inch (300 cm) Power Extension Cable
Final position,
upright
