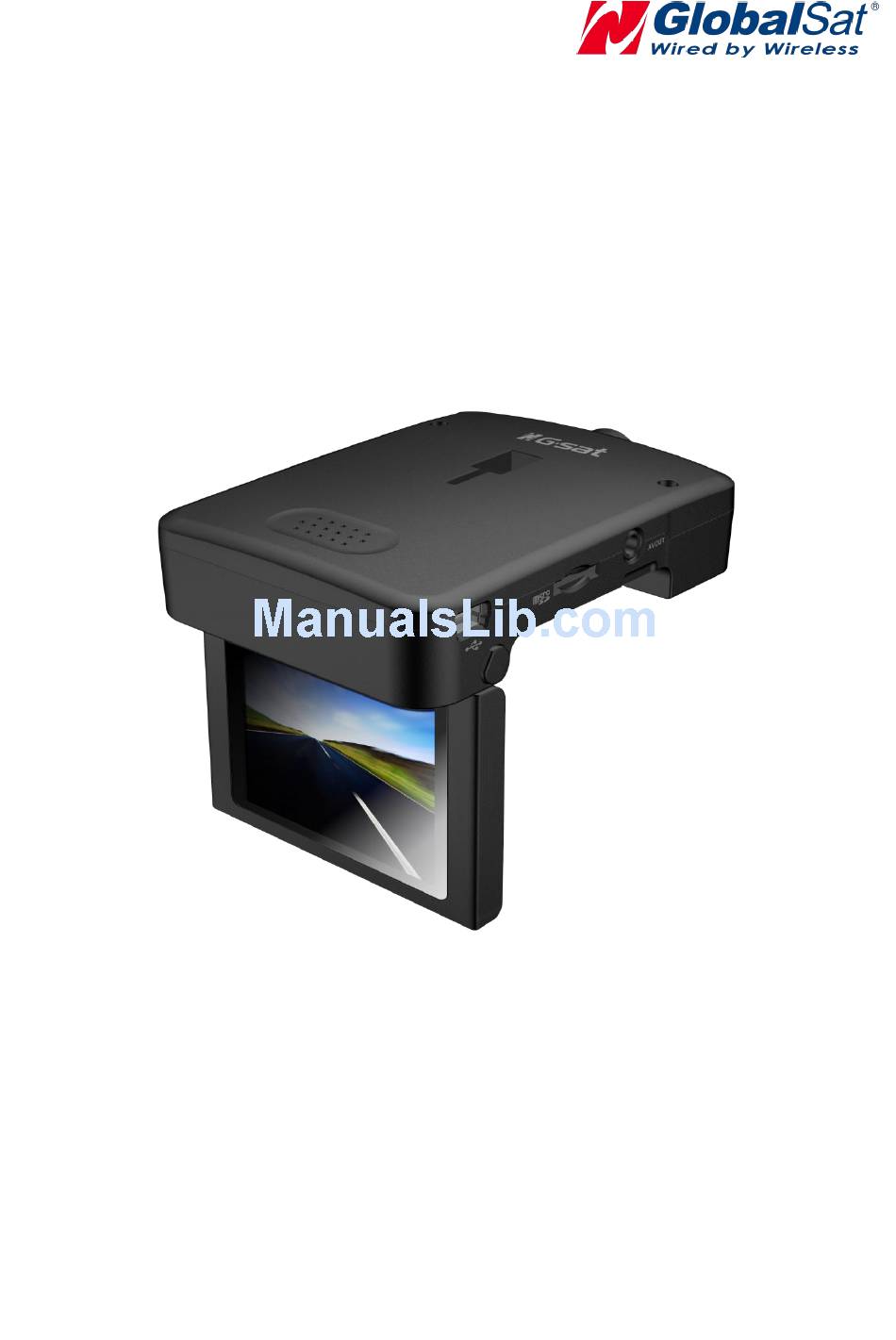

- Page 1 Globalsat RV-1000S HD User Manual 2013/01/11 V.2.2 Page 1...
-
Page 2: Table Of Contents
INDEX Notice 01. Product specifications 02. Package content 03. Suggested Installation Position 04. Device description 05. Description of screen and function keys 05-1. Screen of power-on： 05-2. Function Key : 05-3. Screen of main menu 05-4. Setting description : 05-4-01. Time Setting : 05-4-02. - Page 3 IMPORTANT: PLEASE READ FIRST There are 2 methods to be able to watch the videos or see the files recorded on the RV-1000S, please refer below: 1.) To see the files stored in the SD Card and watch the videos with the RVPlayer Software, your computer must have a SD Card Reader (either built-in into the computer or through an adapter (Adapter NOT included)).
-
Page 4: Notice
5.The material of the case is plastic. Please keep it away from sharp objects. 6.Please only use the GlobalSat specific car charger to charge the device. 7.Power off the device before cleaning it. Clean the camera lens with a soft cloth. Do not clean this device with liquid cleanser. -
Page 5: Product Specifications
01. Product specifications Item Description CMOS shot; able to view the angle of 120 degree Image component 1280 x 720 Pixels MJPG 30fps， Image Format The output format is AVI Compatible with Micro SD card (It is suggested to use a Memory card slot memory card with Class 6 or higher) GPS chipset... -
Page 6: Package Content
02. Package content CD-ROM (user manual, video player RV-1000S software) User Manual Car charger(DC 5V / 1A Mini USB) RV-1000S Car Holder Memory Card (Micro-SD) (Optional) Page 6... -
Page 7: Suggested Installation Position
03. Suggested Installation Position Suggested installation Position Suggested recording angle Please adjust the recording angle according to your own car. The suggested installation and recording angle is only for your reference. Outside view from inside of the car Page 7... -
Page 8: Device Description
04. Device description Car Holder Socket Speaker Display Rec. LED Microphone Power LED GPS Fix LED Camera Page 8... - Page 9 Micro SD card slot Mini USB Port(Socket for in-car charger) AV-Out Page 9...
-
Page 10: Description Of Screen And Function Keys
05. Description of screen and function keys Icons on Upper Display： ICON Descriotion ICON Descriotion Recording Charging GPS fixed No GPS fix Manually turned on file Audio recording is off protection File protection enabled by G-Sensor 05-1. Power-on Screen： Page 10... - Page 11 05-2. Function Key: Function Key Function 1. Short press this key to power on the device while the device is off. Long press this key for 3 seconds to power off the device while the device is on. 2. In power-on status, short click this key will open the main menu. Please do it while your car is stopped or in a safe location, because entering main menu will stop the recording.
- Page 12 05-3. Screen of main menu In power-on status, short press key would enter main menu. There are 11 settings in the menu. Page 12...
- Page 13 05-4. Setting descriptions: 05-4-01. Time Setting : The device will show the incorrect date/time on the first use. The date/time would be automatically adjusted after getting it’s first GPS fix. You could change the date and time keys. And then press to save the setting.
- Page 14 05-4-04. TV-Out You could choose the AV Output format by keys. And then press to select the setting. Note： The format of AV output in most parts of the Asian areas and all of the American areas is NTSC. The format of AV output in European areas is PAL. For details, please refer to the manual of your TV or display.
- Page 15 05-4-08. Language : You could select the displayed language keys. And then press select the setting. 05-4-09. Screen Timeout： You could select the screen timeout setting while device is operating by keys. And then press to select the setting. 05-4-10. G-Sensor sensitivity You could set G-Sensor/gravity sensitivity to protect the recording not to be over-written by cycle recording.
- Page 16 06. LED: There are 3 LEDs that indicate power, GPS status and recording status. 06-1. Power LED： It is off in power-off status. It is red when battery power is low. It is orange when device is charging. 06-2. GPS LED： It stays on when device does not get a GPS fix.
