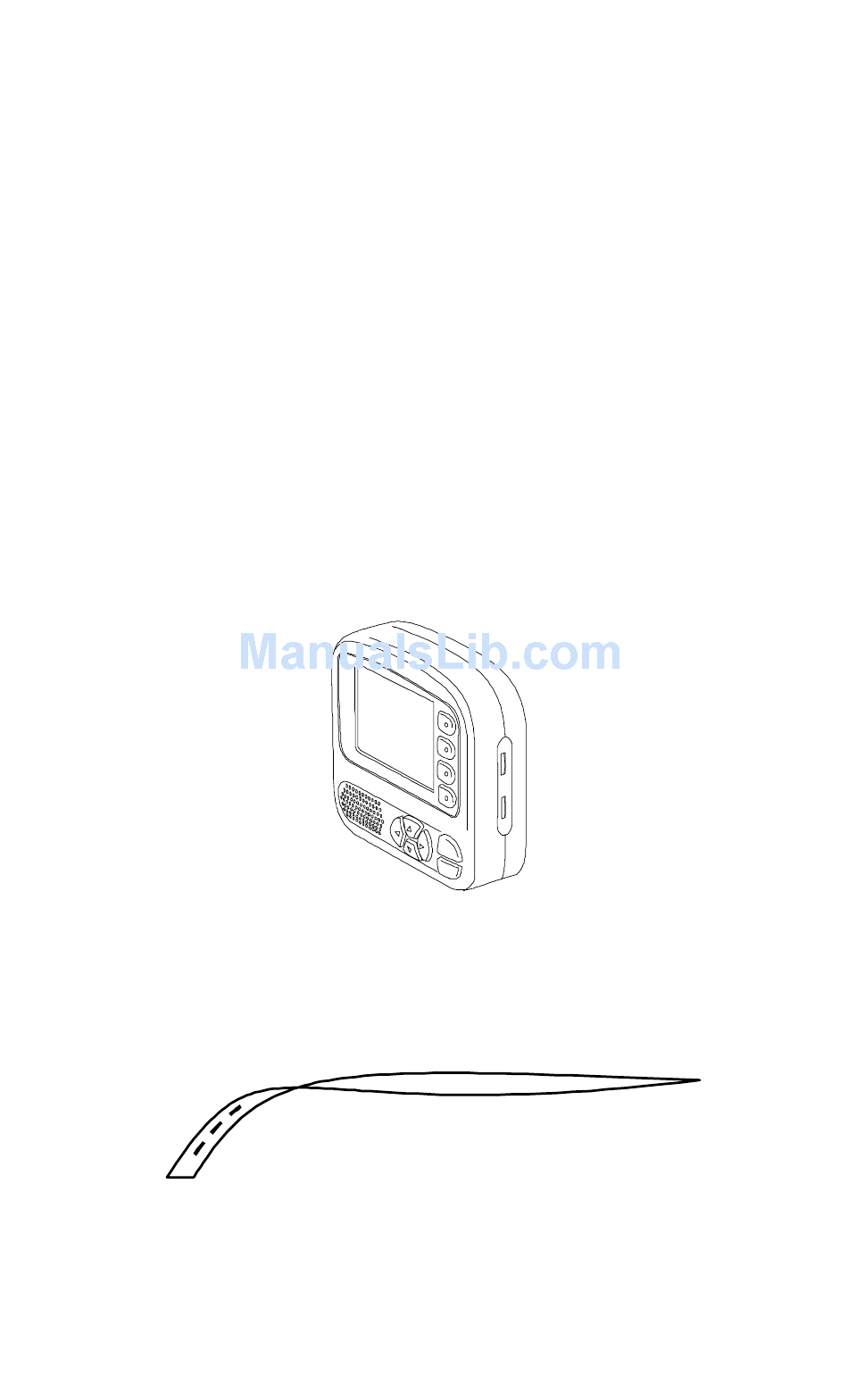

- Page 1 NavMate® Navigation System Installation Manual Ver 1.0 ORIZON N A V I G A T I O N...
- Page 2 NavMate® Installation Manual 1.0 COMPONENTS TABLE 1. Components COMPONENT Controller Controller Brackets Display unit Display Bracket* GPS Antenna Video Cable Wire Harness User Manual Map CD** *Not included with kit. Vehicle-specific InDash brackets and an adapter for the NavMate display unit may be ordered from Panavise.
- Page 3 NavMate® Installation Manual 2.0 SAFTY INFORMATION AND PRECAUTIONS Before installing and using the system, please read the following precautions. Failure to do so may result in damage to the system. 2.1 Controller 1) Do not interrupt power to the system while the software is updating. This may result in corruption of the controller memory.
- Page 4 NavMate® Installation Manual 3.0 INSTALLATION 3.1 Determine system layout 1) Determine the location to connect to the vehicle speed signal. Please call 1- 86NAVMATE1(1-866-286-2831) for VSS help. 2) Determine the location to connect to the remaining vehicle signals required by NavMate.
- Page 5 NavMate® Installation Manual TABLE 2. Signal/Power Signal/Power Ground (battery minus) Reverse gear signal Ignition signal Vehicle speed signal (sine wave) Vehicle speed signal (square wave) Not used Not used Not used Not used Not used Not used Not used Not used Not used Not used System power source...
- Page 6 NavMate® Installation Manual 3.4 Mount components and tuck cables 1) Controller mounting Mount the controller to the vehicle using the brackets provided. The controller must be firmly attached to the vehicle for the system to function properly. Do not overtighten. Do not mount the controller upside down. The controller must be mounted level to within 5 degrees with the vehicle parked safely on reasonably level ground.
