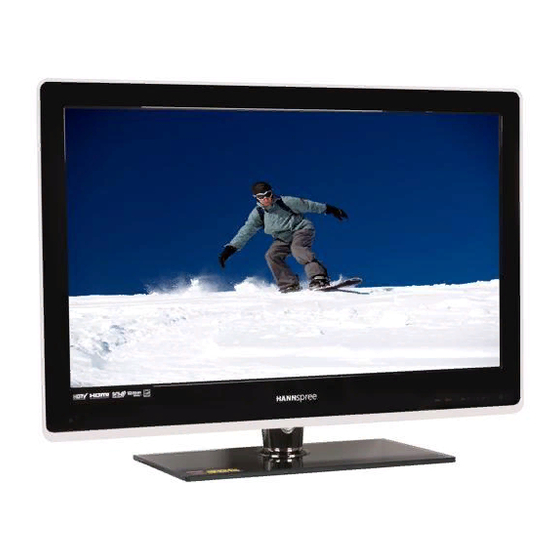

Summary of Contents for HANNspree SV32AMUB
-
Page 2: Table Of Contents
Table of Contents Regulatory Information ..............3 Description of Warning Symbols ..........4 Safety Notices ................5 Important Safety Instructions ............6 Preface ..................9 Warranty and Service ..............9 1. Getting Started ..............12 1.1 Package Contents ............12 1.2 Features ................. - Page 3 Table of Contents 2.3.10 Performing PVR (Personal Video Recording) ..31 3. Adjusting On-Screen Display (OSD) Settings ......33 3.1 OSD Setting Menus ............34 3.2 Adjusting Picture Settings ..........34 3.3 Adjusting Audio Settings ..........35 3.4 Adjusting Channel Settings ..........36 3.5 Adjusting V-CHIP Settings ..........
-
Page 4: Regulatory Information
Regulatory Information FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Description Of Warning Symbols
Description of Warning Symbols CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING CAUTION This symbol is used to alert users to This symbol is used to alert users to pay attention to important the risk of electric shocks due to descriptions regarding usage, dangerous and uninsulated maintenance (repair), and additional... -
Page 6: Safety Notices
Safety Notices Installation Safety Notes Location Avoid allowing the TV to get prolonged exposure to sunlight or other strong sources of heat. Leave sufficient distance between the TV and the wall to provide enough space for the emission of heat. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. -
Page 7: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 8 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
- Page 9 Personal safety 1. To avoid overloading the power supply, never plug too many electrical devices into an outlet, power strip, or extension cable. 2. Dangerous high-voltage electric power components are located inside the TV. To avoid electric shock, do not disassemble the casing. 3.
-
Page 10: Preface
Preface Thank you for purchasing a Hannspree LED-LCD HDTV. Your new TV will allow you to enjoy superior audio and video while enriching your lifestyle with advanced technology. Please carefully read this manual in its entirety before setting up, using or operating your TV. - Page 11 No part of this manual may be reproduced in any form by any means without the prior written authorization of Hannspree. The TV described in this manual may include copyrighted software of Hannspree (or other third parties). Hannspree (or other third parties) preserves the exclusive rights for copyrighted software, such as the right to distribute or reproduce the copyrighted software.
- Page 12 Trademark Notice Hannspree products incorporate High-Definition Multimedia Interface (HDMI™) technology. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. License Notice and Trademark Acknowledgment Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
-
Page 13: Getting Started
Getting Started Package Contents Make sure the following components are included in the box. Please contact Hannspree Customer Service immediately if anything is missing or damaged. Attention Card User Manual Quick Start Guide INPUT AUDIO CABLE INFO MENU GUIDE RETURN... -
Page 14: Features
Features • Built-in TV tuner • Audio/ Video support: – PC audio input – YPbPr input – CVBS input – 3.5 mm stereo earphone output – VGA input – HDMI input – USB 2.0 (Photo/Music/Movie) – R/L audio inputs for CVBS and YPbPr –... -
Page 15: Control Panel
Control Panel Description Button Function Power Press to turn the TV on or off. Press to open the input source list or Input source INPUT return to the previous screen on the OSD menu. Press to open the OSD menu or Menu MENU confirm a selection on the OSD menu. -
Page 16: Input And Output Jacks
Input and Output Jacks Left side: Description Connector Function Service only. Not available for users. SERVICE Service port Support JPEG, MP3, and Movie files. (Please refer to page 27 for supported file USB 2.0 formats.) VIDEO Connect to an external device, such as a VCR, Set-Top-Box, or a DVD Composite inputs player. - Page 17 Description Connector Function Connect to an external device, such as a DVD player, set-top box, or a HDMI 1 input PC’s DVI/ HDMI port. Connect to an external device, such as a DVD player, set-top box, or a HDMI 2 input PC’s DVI/ HDMI port.
-
Page 18: Remote Control
Remote Control 1. INPUT: Press to open the 14. LAST: Press to return to input source list. the last channel INPUT selected. 2. Power: Press to turn the AUDIO CABLE TV on or off. 15. MUTE: Press to mute INFO MENU audio. - Page 19 Note: • For best results, use the remote control within a proper distance from the front of the TV. Do not exceed an angle of 30 degrees when pointing at the • The operational distance may be shortened when the signal sensor is directly exposed to strong light.
-
Page 20: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries 1 Open the battery compartment cover at the back of the remote control. 2 Insert the batteries paying attention to the polarity markings (+ and -) inside the battery compartment. 3 Close the battery compartment cover. - Page 21 CAUTION • If the remote control is not used for a long period, remove the batteries and store them properly. • Handle damaged or leaking batteries carefully, and wash hands with soap if they come in contact with leaked chemical fluids. •...
-
Page 22: Setting Up Your Tv
Setting up your TV Basic Connections 2.1.1 Power Connection 1 Connect the power cord to the AC IN input jack on the rear of the TV. 2 Insert the plug at the other end of the power cord into a power outlet. 2.1.2 Connecting an Antenna or Cable TV Connect one end of the VHF/UHF (Antenna) or CATV cable to VHF/UHF jack on the... -
Page 23: Connecting External Devices
Connecting External Devices Connect external devices such as VCRs, Set-Top-Box, DVD players, video game consoles, earphones, or a PC to the TV using the appropriate ports on the rear of the 2.2.1 Connecting External Earphones Headphones Speakers (Built-in Amplifiers) Note: •... -
Page 24: Connecting To Av Devices
2.2.2 Connecting to AV Devices HDMI IN OPTICAL VIDEO Audio Cable SPDIF/ (Optional) Optical Cable (Optional) HDMI Cable Video Cable (Optional) (Optional) Audio/Video Cable (Optional) HDMI VIDEO L SPDIF (Cable/Satellite box) Home Theater Game Console System... -
Page 25: Connecting A Vcr/ Set-Top Box/ Dvd Player Using Video Inputs
2.2.3 Connecting a VCR/ Set-Top Box/ DVD Player Using Video Inputs Connect the TV to a VCR/ Set-Top Box/ DVD player using the video inputs. Video Cable Audio Cable (Optional) (Optional) (Cable/Satellite box) Video Cable (Optional) VIDEO (Cable/Satellite box) Audio Cable (Optional) -
Page 26: Connecting A Pc Using Vga
2.2.4 Connecting a PC using VGA Connect the TV to your PC to use it as the monitor using the VGA port. 1 Connect the VGA port of the TV to the VGA output of the PC. 2 Connect the AUDIO IN of your TV to the line out port of the PC to listen to audio from the PC. -
Page 27: Connecting Hdmi
2.2.6 Connecting HDMI HDMI (High Definition Multimedia Interface) assures that the best video signal is always sent from source to the TV. Refer to the following illustration to connect an HDMI device to the TV. HDMI IN DVD Player HDMI Cable (Optional) Note: When the HDMI cable is connected, connecting the audio cable is not necessary. -
Page 28: Connecting Usb 2.0
2.2.8 Connecting USB 2.0 Connect the USB 2.0 flash drive to the TV using the USB port as shown. JPEG, MP3, and Movie files are supported. Connect the USB 2.0 flash drive to the TV to enjoy the PVR (Personal Video Recording) feature. -
Page 29: Using The Tv
Maximum File Audio Video Codec Video Note Format Codec Resolution AAC Code only MPEG 4 support object .mp4 1920 x 1080 type = 2(LC), H.264/AVC 5(SBR), 29(PS) AAC Code only MPEG I/II MPEG I/II support object 1920 x 1080 type = 2(LC), H.264/AVC .trp 5(SBR), 29(PS) -
Page 30: Setup Wizard
2.3.2 Setup Wizard When turning on the TV for the first time, the Setup Wizard is displayed to guide you through the basic Setup Wizard 1 configuration of the TV. OSD Language English 1 Press on the remote control to set the OSD Español Language. -
Page 31: Selecting Channels
2.3.5 Selecting Channels • Press on the control panel or on the remote control to increase the channel number. • Press on the control panel or on the remote control to decrease the channel number. • Enter the specific channel number by pressing the number keys on the remote control. -
Page 32: Viewing Images And Playing Music
2.3.9 Viewing Images and Playing Music 1 Insert the USB 2.0 flash drive into the USB port. Photo 2 Press INPUT on the remote control to enter the Return Include all Play img_9866.jpg img_9867.jpg Multimedia screen. Repeat Interval 1 sec 3 Press 1/2/3 on the remote control to select img_9868.jpg img_9869.jpg... - Page 33 • Record: While viewing DTV programs, press Record on the remote control to start recording Name Clear all Play SHARK_20100101_162005.pvr and save the video in PVR list. Press Stop Delete SHARK_20100101_162006.pvr Repeat stop recording. USB 1/mnt/sda/PVR/SHARK_20100... 2 of 2 • Playback: While viewing DTV program, press Play on the remote control to display PVR playlist Movie...
-
Page 34: Adjusting On-Screen Display (Osd) Settings
Adjusting On-Screen Display (OSD) Settings The On-Screen Display (OSD) menu provides a quick and simple method to adjust the TV settings. The OSD menu can be accessed through the buttons either on the control panel or the remote control. ADJUSTABLE ITEMS: Displays the settings/ values of the adjustable items. -
Page 35: Osd Setting Menus
OSD Setting Menus Follow the instructions indicated on the bottom of the screen. Press the control panel or arrow keys on the remote control to scroll through the menus. Press INPUT on the control panel or OK key on the remote control to select an item. -
Page 36: Adjusting Audio Settings
• Vivid Motion can be set to Off or On. • Recall can be used to reset the original factory settings. Note: The items available on the OSD may vary depending on the input signal source. Adjusting Audio Settings Press MENU to enter the OSD Main Menu Audio Mode Picture Equalizer... -
Page 37: Adjusting Channel Settings
Note: • The items available on the OSD may vary depending on the input signal source. • HELIOS Sound makes individual sounds clearer and lifts the sound position • SRS TruSurround XT creates surround sound effect from only two speakers, providing rich bass and clear vocals. -
Page 38: Adjusting V-Chip Settings
Adjusting V-CHIP Settings Press MENU to enter the OSD Main Menu New Password Picture Change Password screen. Audio Lock Unrated Block Press on the remote control or Channel MPAA on the control panel to select TV Rating V-CHIP Can. English V-CHIP menu. -
Page 39: Adjusting Setup Settings
Press MENU to exit the Setup menu. The Setup menu can be used to adjust the Setup Wizard, OSD Language, OSD TIme, Daylight Saving, Time Zone, On Time, Off Time, Hannspree Light, Melody, CC Mode, and Analog CC settings. • Setup Wizard can be used to set up OSD Language, Clock Mode, Time Zone, TV RF Source, and channel scan. -
Page 40: Adjusting Pc Settings
Adjusting PC Settings Press INPUT on the remote control to select H Position Picture PC as the input source. V Position Audio Phase Press MENU to enter the OSD Main Menu Clock PC Setting screen. Auto Adjust Setup Press on the remote control or on the control panel to select Picture menu. -
Page 41: Troubleshooting
Troubleshooting Situation Solution • Connect the power cord properly. • Check if the power LED is on or not. • Press on the control panel or remote control. No picture and sound. • press INPUT to cycle through connected video sources. •... -
Page 42: Specifications
Specifications SV32AMUB LCD Panel Size 31.5 inch TFT Screen Format 16:9 Panel Resolution 1366 (H) x 768 (V) TV System ATV: NTSC DTV: ATSC HDMI Input x 5 YPbPr Input x 2 Composite Input x 1 Video System VGA (PC) Input x 1 Tuner Input x 1 USB 2.0 (Movie) - Page 43 SV32AMUB: PC Mode Support Timing Nominal Horizontal Vertical Resolution Pixel Hsync Vsync HDMI Mode Frequency Frequency YPbPr (active dot) Clock polarity polarity (KHz) (Hz) (MHz) 640x480@60Hz 31.469 59.941 25.175 SVGA 800x600@60Hz 37.879 60.317 40.000 1024x768@60Hz 48.363 60.004 65.000 SXGA 1280x1024@60Hz 63.981...
-
Page 44: Appendix: Remote Control Guide
Appendix: Remote Control Guide Introduction The electronic equipment type switch buttons are used for switching the current electronic equipment type on the remote control. The remote control includes 4 electronic equipment types: DVD, AUDIO, CABLE and The remote control keypad matrix includes 4 electronic equipment type switch buttons (DVD, AUDIO, CABLE and TV). -
Page 45: Searching Codes
6. During the setting process, only digit keys ‘0’ through ‘9’ are valid inputs, while other buttons are deemed invalid and do not affect the code setting. For example, inputting “02” then pressing RETURN does affect the “02” already input. 6.1.2 Searching Codes If the desired electronic equipment code for setting can not be found on the list in the... -
Page 46: Setting Volume Lock
6.1.3 Setting Volume Lock Operating procedures are as follows: 1. Press the corresponding electronic equipment button. The indicator light will come on for 2 seconds then it goes off; after 3 seconds, the indicator light will come on again, showing that the setting mode has been entered. 2. -
Page 47: Factory Setting Mode
4. During the setting process, releasing the electronic equipment button exits the setting mode immediately without changing the status prior to setting. 5. Buttons other than CH+/CH- are not functional during search. Channel buttons include CH+ and CH-. 6.1.5 Factory Setting Mode Factory setting operation procedures are as follows: 1. - Page 48 6. Default volume lock setting: Electronic VOL+, VOL- and Mute Note equipment Provided by Transmit TV code manufacturer CABLE Transmit CABLE code Unlocked AUDIO Transmit AUDIO code Unlocked Transmit DVD code Unlocked 7. Default channel lock setting: Electronic CH+ and CH- Note equipment Provided by...
-
Page 49: Description
6.1.6 Description There is no multi-function code setting operation under TV mode but a fixed code for the TV manufacturer. Therefore, code setting and code-searching functions are disabled under this mode; other functions such as volume lock, channel lock and code display are operable. -
Page 50: Component Program Codes
Component Program Codes Setup Code for VCR’s Setup Code for VCR’s 2102 2005, Setup Code for VCR’s GoldStar 2022, 2006, 2023 Admiral 2012, 2022 2005, 2011, Craig 2024, 2015 HaoJie 2024 Aiko 2025 2913, 2004, Curtis Mathes Harman/ Aiwa 2005, 2027 2020 2016, 2006 Kardon... - Page 51 Setup Code for VCR’s Setup Code for VCR’s Setup Code for VCR’s Magnin 2024 Olympus 2004 2013, 2004, 2024, 2008, 2077 Marantz 2004, 2016 2087, 2020, Optimus 2005, 2012, 2017, 2026 2004, 2005, Marta 2005 Realistic 2012, 2011, 2017 2021, 2022, Matsushita 2004, 2020 Orion...
- Page 52 Setup Code for VCR’s Setup Code for VCR’s Setup Code for DVD’s Tashiko 2005 XR-1000 2004, 2015 2060, 2073, 2092, 2063, Go Video 2089, 2076, Tatung 2010, 2014 Yamaha 2006 2100 Technics 2004, 2020 Greenhill 2058 Setup Code for DVD’s 2004, 205, Teco Harman/...
- Page 53 Setup Code for DVD’s Setup Code for DVD’s Setup Code for Cable Norcent 2078 2034, Digi 0024 Sony 20864, 2083 2029, 2046, Diector 0019 Onkyo 2064 2085 Dumont 0024 Oritron 2051 Sylvania 2054 Gehua 0019 Panasonic 2028, 2101 Symphonic 2054 0019, 0033, General 2029, 2036,...
- Page 54 Setup Code for Cable Setup Code for Satellite Setup Code for Satellite Regal 0016, 0014 0018, 0023, Panasonic 0013, 0026 0025, 0044, 0013, 0029, Runco 0001 Paysat 0028 0057, 0028, DirecTV 0034, 0058, Samsung 0001, 0010 0044, 0029, 0060, 0043, 0057, 0028, Philips 0007, 0051,...
- Page 55 Setup Code for CD Setup Code for CD Setup Code for CD Carver 3019, 3022 Panasonic 3004 Yamaha 3006 3001 Parasound 3027 Zonda 3019 Philips 3030, 3019 3019 Electronics Pioneer 3038, 3005 Dynamic Setup Code for Audio 3022 Bass Polk Audio 3019 Amp’s Fisher...
- Page 56 Setup Code for Audio Setup Code for Audio Amp / Tuner’s Amp / Tuner’s Carver 3042 Teac 3049 Denon 3051, 3040 Technics 3043, 3055 Fonmix 3051 Thorens 3042 Harman/ Victor 3010 3014 Kardon Wards 3002 Hitachi 3047 3021, 3048, Yamaha Integra 3017 3041...
-
Page 57: Setting The Tv On The Wall
Setting the TV on the Wall Appropriate ventilation distances: Setting up your TV with appropriate ventilation distances. Refer to the illustrations below for the minimal ventilation distances recommended. 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches 4 inches Dissembling the stand base: Disconnect all the cables and cords from the TV to prevent breakage. - Page 58 Installing the LED-LCD HDTV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. Hannspree bears no responsibility for improper mounting or mounting that results in accident or injury. You can...
-
Page 59: Using The Cable Organizer
Using the Cable Organizer Insert the cable clamp into the square hold on the rear of the TV. Route the cables through the cable clamp.
