Summary of Contents for Laney LX 10

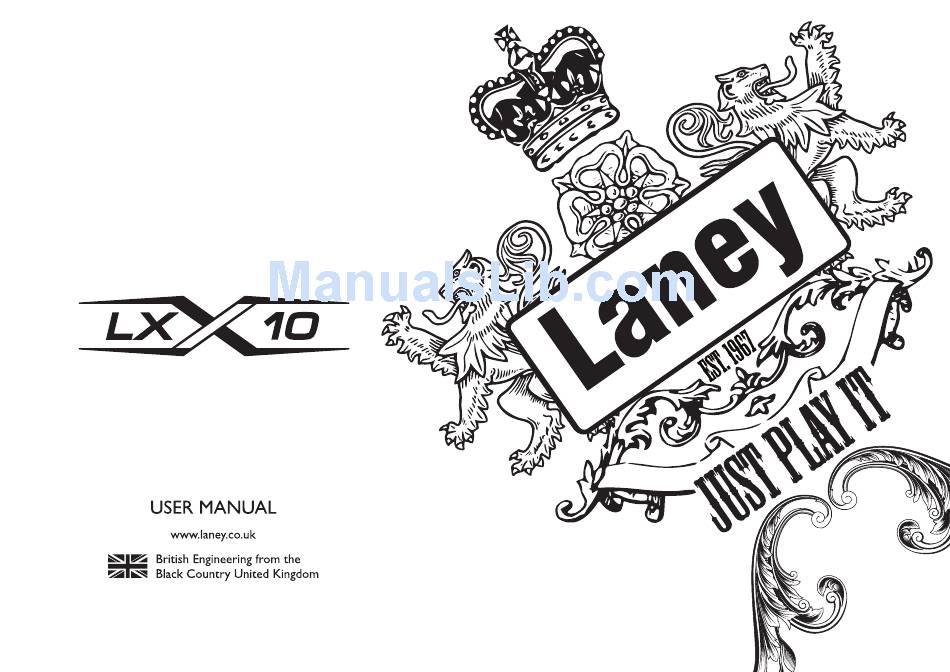

  • Page 1 GUITAR AMPLIFIER...
  • Page 2 WELCOME...

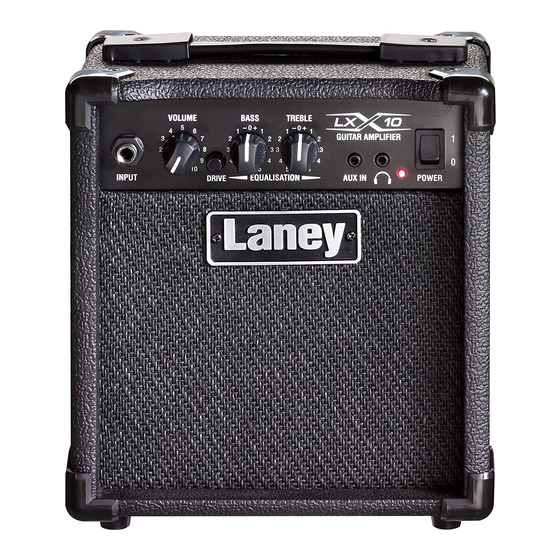

  • Page 3 INTRODUCTION The ultra compact LX10, brings the renowned big tones of the LX range to a compact portable guitar amp. The 10-Watt LX10 is capable of producing some great tones. Housing a big sounding 5” driver and 2 band EQ the LX10 produces a nice open clean sound and hitting the on board DRIVE switch allows you to kick in some serious, great sounding distortion.
  • Page 4 FRONT PANEL CONTROLS VOLUME BASS TREBLE GUITAR AMPLIFIER INPUT DRIVE EQUALISATION AUX IN POWER Input: This socket should be used for connecting your instrument to the amplifier. Only use a good quality screened cable. Volume: Sets the overall listening level of the amplifier. Drive: Switch in to activate drive channel, adjust the volume to suit, and get some serious distortion! EQ Controls: Traditional Bass &...
  • Page 5: Rear Panel

    L Z B 1 2 3 4 CAUTION - RISK OF ELECTRIC SHOCK DO NOT OPEN DESIGNED IN THE UK BY LANEY ATTENTION - RISQUE DE DÉCHARGE ÉLECTRIQUE, NE S'OUVRE PAS MADE IN CHINA. FABRIQUE EN CHINE. CAUTION: TO REDUCE THE RISK OF FIRE REPLACE FUSE WITH SAME TYPE AND RATING.
  • Page 6 CONNECTIONS Options Guitar CD/MP3 Headphones General Notes Amplifier connection: In order to avoid damage, it is advisable to establish and follow a pattern for turning on and off your equipment. With all system parts connected, turn on source equipment, MP3/CD players, etc. BEFORE turning on your guitar amplifier. Similarly when turning off your system always turn down the Volume controls on your guitar amplifier and then turn off its power before turning off other equipment.
  • Page 7: Specifications

    Unit Weight 2.6Kg Electronic Equipment) Directive Packing Weight 3.2Kg applicable in your country. BLOCK DIAGRAM GUITAR INPUT DISTORTION SECTION In the interest of continued development, Laney INTERNAL LOUDSPEAKER reserves the right to amend product specification without prior notification. AUX IN HEADPHONES...
