Siemens Nixdorf MCM 21T1 Service Manual

N3 chassis
Hide thumbs Also See for MCM 21T1:
Table of Contents

Advertisement

Quick Links

Download this manual
MCM 21T1

SERVICE MANUAL

AEP Model
Chassis No. SCC-L04S-A
N3
CHASSIS
SPECIFICATIONS
COLOR Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCM 21T1 and is the answer not in the manual?

Questions and answers

Related Manuals for Siemens Nixdorf MCM 21T1

Summary of Contents for Siemens Nixdorf MCM 21T1

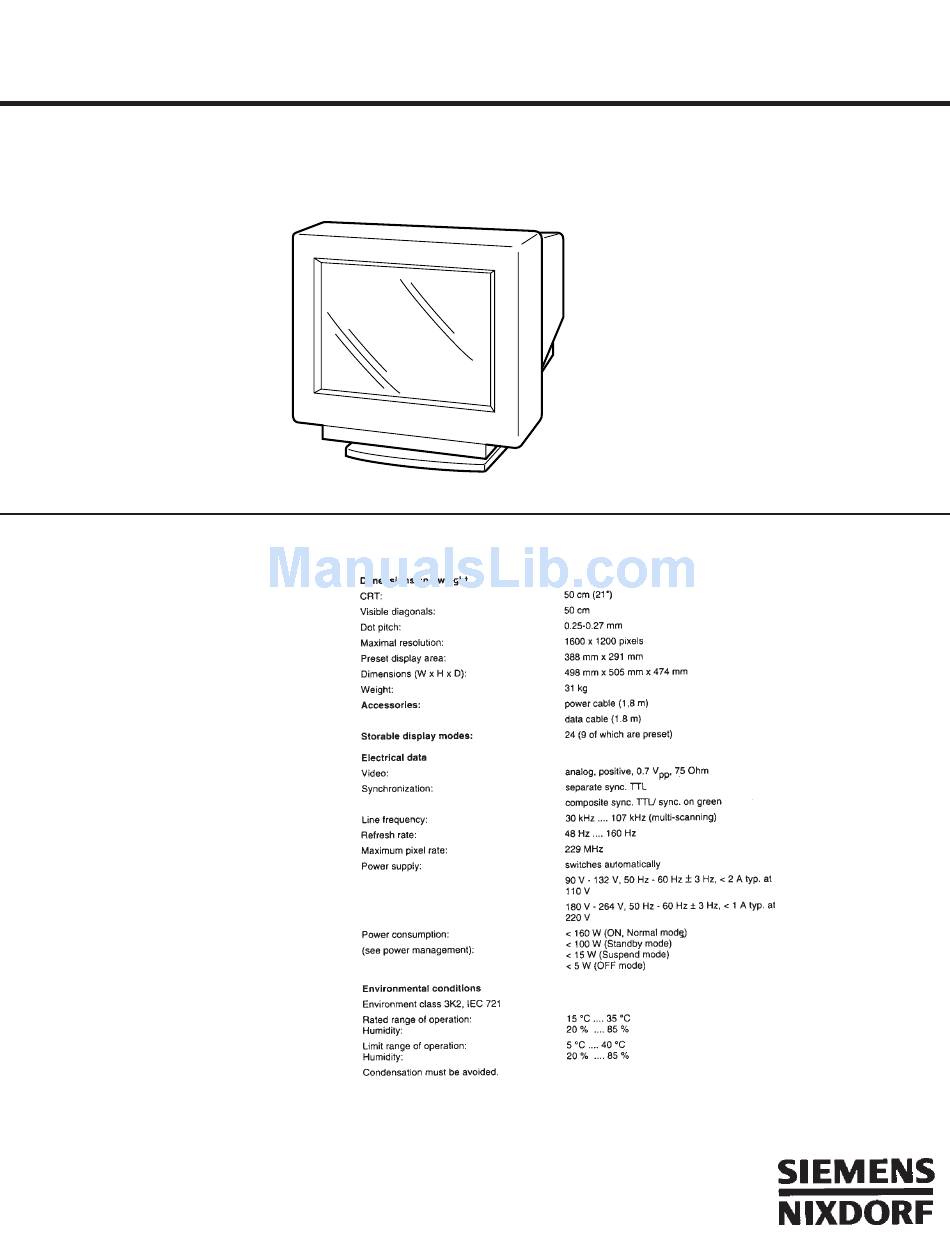

  • Page 1: Service Manual

    MCM 21T1 SERVICE MANUAL AEP Model Chassis No. SCC-L04S-A CHASSIS SPECIFICATIONS COLOR Monitor...
  • Page 2 MCM 21T1 SAFETY CHECK-OUT After correcting the original service problem, perform the fol- LEAKAGE TEST lowing safety checks before releasing the set to the customer: The AC leakage from any exposed metal part to earth ground 1. Check the area of your repair for unsoldered or poorly-sol- and from all exposed metal parts to any exposed metal part hav- dered connections.
  • Page 3 POWER SAVING FUNCTION This monitor meets the power-saving guidelines set by VESA and Note Energy Star, as well as the more stringent NUTEK . If no video signal is input to the monitor, the “NO INPUT SIG- If the monitor is connected to a computer or video graphics board NAL”...

  • Page 4: Timing Specification

    TIMING SPECIFICATION MODE AT PRODUCTION MODE 1 MODE 2 MODE 3 MODE FOR CUSTOMER E-VGA VESA VESA SNI-100Hz VESA VESA SNI-100Hz RESOLUTION 720 X 400 720 X 400 640 X 480 640 X 480 640 X 480 640 X 480 800 X 600 800 X 600 800 X 600...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Section Title Page 1. GENERAL ..............1-1 2. DISASSEMBLY 2-1. Cabinet Removal ..........2-1 2-2. D Board Removal ..........2-1 2-3. G Board Removal ..........2-2 2-4. A Board Removal ..........2-2 2-5. L Board Removal ..........2-3 2-6.

  • Page 17: Disassembly

    DISASSEMBLY 2-1. CABINET REMOVAL Four screws (+ BVTP 4 x 16) Screw cover Four screws (+ BVTT 4 x 8) Two claws Top cover Screw cover Cabinet Four screws (+ BVTT 4 x 8) Video shield 2-2. D BOARD REMOVAL Screw Two screws (+ P 3.5 x 20)

  • Page 18: G Board Removal

    2-3. G BOARD REMOVAL Two screws (+BVTP 3 x 10) Screw (+ BVTT 4 x 8) G shield Two screws (+ BVTT 4 x 8) G board Three hooks Open the G block in the direction Two printed circuit board holders of the arrow .

  • Page 19: L Board Removal

    2-5. L BOARD REMOVAL CN5001 CN5004 CN5002 CN5003 L board Four printed circuit board holders 2-6. I/O TERMINAL BOARD ASSY REMOVAL CN401 CN511 CN402 Three screws (+ BVTT 3 x 8) I/O terminal board assy...

  • Page 20: Service Position

    2-7. SERVICE POSITION CAUTION : SHORT D,G boards Rear shield If the claw is hooked, opening and closing the board is impossible. Do not try to do it by force. D board (Refer to 2-2.) A board (Refer to 2-4.) If the claw is hooked, opening and closing G board...

  • Page 21: Picture Tube Removal

    2-9. PICTURE TUBE REMOVAL Open the D block (Refer to 2-2.) Four screws (+ BVTT 4 x 8) Two connectors 6P (DY) A board 10P (DY) Anode cap Open the G block (Refer to 2-3.) Neck assy Deflection yoke Picture tube •...

  • Page 22: Safety Related Adjustment

    MCM 21T1 SECTION 3 SAFETY RELATED ADJUSTMENT When replacing or repairing the shown below table, the a) HV Regulator Circuit Check following operational checks must be performed as a 1) Confirm that the voltage of the pin 2 of CN901 on safety precaution against X-rays emissions from the unit.

  • Page 23: Adjustments

    ADJUSTMENTS Note: Hand degauss must be used on stand-by or power-off condition. This model has an automatic earth magnetism correction function by using an earth magnetism sensor and a LCC coil. When using a hand degauss while monitor (LCC coil) is being operated, it sometimes gets magnetized, and the system may not work properly as a result.

  • Page 24: Convergence Rough Adjustment

    Connect the communication cable of the computer to the connector located on the D board on the monitor. Run the service software and then follow the instruction. 1-690-391-21 A-1500-819-A 3-702-691-01 Interface Unit Connector Attachment IBM AT Computer To BUS CONNECTOR as a Jig D-sub mini Din...
  • Page 25 TO FBT FV1 FV2 HV IC401 IC402 IC403 RGB SWITCH RGB PRE-AMP RGB OUT V901 PICTURE TUBE CN402 Q101 R IN 2 R_IN2 R_OUT R_IN R_OUT R_IN R_OUT G IN 2 G_IN2 G_IN G_OUT BUFFER Q201 B IN 2 B_IN2 G_OUT G_IN G_OUT...
  • Page 26 CN520 CN504 CN512 (U-COM,DEFLECTION) (POWER SW) LLC_RB POWER LLC_RT CN891 H CONV HTR_SW LLC_LB S891 IC012 V CONV STBY 8V LLC_LT AC L IN POWER LLC_LB AC L OUT CN511 V CLK C.SYNC_1 V.SYNC_1 C.SYNC_2 PS504 V.SYNC_2 CN605 DDC_SDA_1 IC002 IC001 IC006 DDC_SCL_1...

  • Page 27: Schematic Diagrams And Printed Wiring Boards

    5-3. CIRCUIT BOARDS LOCATION Note: The components identified by shading and mark ! are critical for safety. Replace only with part . FRAME SCHEMATIC DIAGRAM number specified. • All voltages are in V. CONNECTOR PANEL • Readings are taken with a 10 M digital multimeter. R IN 1 •...
  • Page 28 — D BOARD (Conductor Side) — — D BOARD (Component Side) — µ-COM, DEFLECTION • D BOARD SEMICONDUCTOR LOCATION Q660 D–2 D513 E–1 Q661 D–2 D514 A–4 A–1 – Conductor Component Side Side Q701 D–1 D–4 – D516 D–2 Q703 C–1 C–4 –...

  • Page 29: L Boards

    • D BOARD WAVEFORMS • D BOARD VOLTAGE LIST Ref. Pin No. Voltage [V] Ref. Pin No. Voltage [V] ROTATION+ TO L BOARD TO L BOARD IC002 ROTATION- CN5002 CN5001 11.2 CN520 CN512 CN509 5.0 Vp-p (4MHz) 4.3 Vp-p (H) 2.0 Vp-p (H) 600 Vp-p (H) IC004...
  • Page 30 STBY+5V (POWER SENSOR) +15V C811 • GA BOARD Q7504 2SA1037AK CN7501 Q801 TO D BOARD VOLTAGE LIST 2SC3311A CN801 R7509 B-TO-B LED DRIVE Q802 CN501 :CHIP 2SC3311A R814 :S-MICRO L LED DRIVE Ref. Pin No. Voltage [V] • L BOARD IC5101, 5301, 5401 LA6510 R7510 LED0 C7504...
  • Page 31 (ga) V.STAT, H.STAT, LLC, POWER SUPPLY USER CONTROL POWER SENSOR GEO MAGNETIC SENSOR — G BOARD — — L BOARD (Conductor Side) — — L BOARD (Component Side) — G BOARD Terminal name of semiconductors in silk screen printed circuit ( Ref.
  • Page 32 C458 IC403 IC401 IC402 C412 +12V C101 M52755FP-TP RGB PRE-AMP M52722P RGB DRIVE 0.01 C312 FA4111 BLOCK 0.01 B:CHIP B:CHIP RGB OUT C402 STBY+5V +12V C102 R475 C305 R122 47 16V R339 R314 B:CHIP 0.01 C322 :CHIP B:CHIP :CHIP C201 B_VCC1 C306 :CHIP...
  • Page 33 VIDEO AMP • A BOARD RGB OUT SEMICONDUCTOR LOCATION — A BOARD (Conductor Side) — — A BOARD (Component Side) — Conductor Component Side Side IC401 A–1 IC402 B–3 B–1 IC403 B–3 B–1 IC404 A–2 IC406 A–1 A–3 IC408 A–1 A–3 IC409 C–1...

  • Page 34: Semiconductors

    5-4. SEMICONDUCTORS BA9756FS-E2 LA6510 NJM4558M µPC1093J 2SA1091-O M62352GP-75E µPC4558G2 2SC2362K-G M62352GP-75ED 24LC16BT/SN 24LC21AT/SN TOP VIEW TOP VIEW 20 pin SOP 8 pin SOP LA7841L µPC78L05J 2SA1175-HFE CXA2043Q 2SA1309A-QRSTA MARKING SIDE VIEW NJM78L05A 2SC2784 NJM78L09A 2SC2785-HFE TA78L05S 2SC3311A-QRSTA TA78L09S LETTER SIDE 7 pin SIP TOP VIEW LM324M...
  • Page 35 2SC4015TV2 DTZ-TT11-16B D5LC20U P6KE200AG23 DTZ10B CATHODE DTZ13B DTZ24B DTZ33B DTZ4.7C DTZ5.1B MA111 RD12SB2 RD5.6SB ANODE UDZ-TE-17-10B UDZ-TE-17-12B UDZ-TE-17-13B 2SC5047-CA EGP20G RD6.2M-B1 UDZ-TE-17-16B ERA34-10 UDZ-TE-17-24B RGP02-17EL-6433 UDZ-TE-17-33B RGP02-17PKG23 UDZ-TE-17-4.7B RGP02-20EG23 UDZ-TE-17-5.1B RGP02-20EL-6394 UDZ-TE-17-5.6B RGP15GPKG23 UDZ-TE-17-6.2B UF4005PKG23 CATHODE 2SK1120LBSONY2 RM11A ANODE 2SK2098-01MR RM11C CATHODE CATHODE...

  • Page 36: Exploded Views

    EXPLODED VIEWS • Items with no part number and no • Items marked " * " are not stocked since The components identified by shading description are not stocked because they they are seldom required for routine ¡ and mark are critical for safety.

  • Page 37: Picture Tube

    6-2. PICTURE TUBE The components identified by shading ¡ and mark are critical for safety. 7-685-663-71 +BVTP 4X16 Replace only with part number specified. ¢ 7-685-881-09 +BVTT 4X8 7-685-883-01 +BVTT 4X12 REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK ¡...

  • Page 38: Electrical Parts List

    MCM 21T1 MCM 21T1 The components identified by shading SECTION 7 ¡ and mark are critical for safety. Replace only with part number specified. ELECTRICAL PARTS LIST REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK NOTE: • All variable and adjustable resistors have •...
  • Page 39 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK C435 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V D102 8-719-062-51 DIODE 1PS226-115...
  • Page 40 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK L301 1-412-478-11 INDUCTOR 0.15UH R126 1-216-097-91 RES,CHIP 100K 1/10W L401...
  • Page 41 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK R241 1-216-025-91 RES,CHIP 1/10W R417 1-216-089-91 RES,CHIP 1/10W R243 1-216-043-91 RES,CHIP...
  • Page 42 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. (a)(ga)(g) Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK SG301 1-517-499-21 GAP, SPARK R7512 1-216-089-91 RES,CHIP 1/10W SG401 1-519-526-11 LAMP, NEON...
  • Page 43 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK C692 1-111-016-11 ELECT 0.0012F 20% 10V <IC> C693 1-130-495-00 FILM 0.1MF...
  • Page 44 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. (g)(d) Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK R620 1-215-485-00 METAL 470K 1/4W R695 1-249-443-11 CARBON 0.47...
  • Page 45 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK C009 1-164-004-11 CERAMIC CHIP 0.1MF 10% 25V C069 1-163-021-91 CERAMIC CHIP 0.01MF...
  • Page 46 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK C531 1-163-021-91 CERAMIC CHIP 0.01MF 10% 50V C908 1-136-169-00 FILM 0.22MF...
  • Page 47 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK D010 8-719-976-99 ZENER DIODE DTZ5.1B D907 8-719-158-49 ZENER DIODE RD12SB2...
  • Page 48 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK <COIL> Q528 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 Q660 8-729-033-26 TRANSISTOR DTA114GKAT146 L001...
  • Page 49 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK R043 1-216-065-91 RES,CHIP 4.7K 1/10W R506 1-249-397-11 CARBON 1/4W F...
  • Page 50 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK R564 1-216-697-91 METAL CHIP 0.50%1/10W R730 1-219-746-11 CARBON 1/2W R565 1-216-671-11 METAL CHIP 6.8K...
  • Page 51 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. (d)(h) Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK ¡ T902 X-4035-170-1 TRANSFORMER ASSY, FLYBACK R930 1-216-033-00 RES,CHIP...
  • Page 52 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. (h)(j)(l) Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK <SWITCH> C5205 1-164-489-11 CERAMIC CHIP 0.22MF 10% 16V C5206 1-164-004-11 CERAMIC CHIP 0.1MF...
  • Page 53 MCM 21T1 The components identified by shading ¡ and mark are critical for safety. Replace only with part number specified. REF.NO. PART NO. DESCRIPTION REMARK REF.NO. PART NO. DESCRIPTION REMARK R5003 1-216-295-91 SHORT R5310 1-216-073-00 RES,CHIP 1/10W R5005 1-216-689-11 RES,CHIP...
