LG LMU369HV Submittal Data

Job Name/Location:
Date:
PO No.:
Architect:
Engr:
Rep:
(Company)
LMU369HV

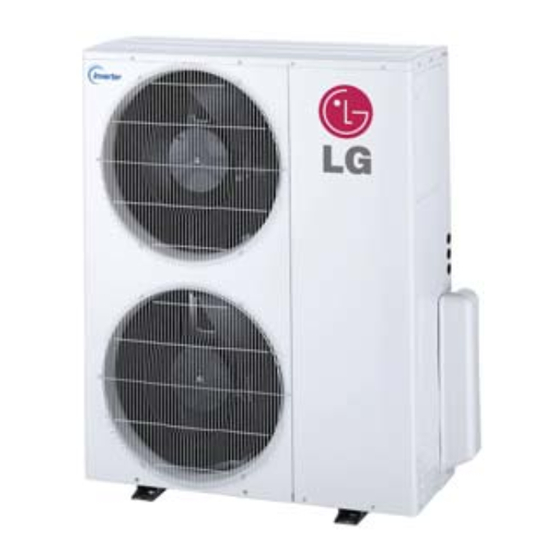

Multi F Inverter Heat Pump Outdoor Unit

Performance:

Capacity (Btu/h)
Cooling Power Input (kW)
Heating Power Input (kW)
Cooling Nominal Test Conditions:
Indoor: 80°F DB/67°F WB
Outdoor: 95°F DB/75°F WB

Electrical:

Power Supply (V¹/Hz/Ø)
MOP (A)
MCA (A)
Cooling Rated Amps (A)
Heating Rated Amps (A)
Compressor (A)
Fan Motor (A)
MOP ‐ Maximum Overcurrent Protection MCA ‐ Minimum Circuit Ampacity

Piping:

Refrigerant Charge (lbs)
Liquid Line (in, OD)
Vapor Line (in, OD)
Max Total Piping (ft)²
Max ODU to IDU Piping (ft)
Piping Length (no add'l refrigerant, ft)
Max Elevation between ODU and IDU (ft)
Max Elevation between IDU and IDU (ft)
ODU ‐ Outdoor Unit IDU ‐ Indoor Unit
Controls Features:
•Auto opera on •Low ambient opera on to
•Auto restart opera on 14F (cooling mode)
•Defrost/Deicing •Restart delay (3‐minutes)
•Inverter (variable •Self diagnosis
speed compressor) •So start
Standard Features:
•Limited Five Year Compressor Warranty
•Limited Two Year Func onal Parts Warranty
Optional Accessories:
PI‐485 Integration Board (PMNFP14A0)
AC Smart II (PQCSW320A1E)
AC Ez (PQCSZ250S0)
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG Life's Good" is a registered trademark of LG Corp. /www.lghvac.com
For:
GC:
Mech:
(Project Manager)
34,000
2.72
3.58
Heating Nominal Test Conditions:
Indoor: 70°F DB/60°F WB
Outdoor: 47°F DB/43°F WB
208‐230/60/1
25
16.8
18.6
19.0
12.1
0.55
7.72
1/4 (4 Each)
3/8 (4 Each)
246.1
82.0
98.4
49.2
24.6
File Resubmit
Approval
Other
Operating Range:
Cooling (°F DB)
Heating (°F WB)
Unit Data:
Refrigerant Type
Refrigerant Control
Sound Pressure (±3 dB(A))²
Net Unit Weight (lbs)
Shipping Weight (lbs)
Heat Exchanger Coating
Min Number of Indoor Units
Max Number of Indoor Units
Communication Cable (No. x AWG)³
AWG ‐ American Wire Gage

Compressor:

Quantity
Type
Oil/Type

Fan:

Type
Quantity
Fan Motor/Drive
Airflow Rate (CFM)
Notes:
1.Acceptable opera ng voltage: 187V‐253V.
2.Piping lengths are equivalent.
3.Sound Pressure levels are tested in an anechoic chamber under ISO Standard 1996.
4.All communica on cable to be minimum 18 AWG, 2‐conductor, stranded, shielded and
must comply with applicable local and national code.
5.See Engineering Manual for sensible and latent capaci es.
6.Power wiring cable size must comply with the applicable local and na onal code.
7.This data is rated 0 above sea level, with 24.6 of refrigerant line and a 0 level
difference between outdoor and indoor units. All capacities are net with a combination
ratio between 95 – 105%.
8.Must follow installa on instruc ons in the applicable LG installa on manual.
Tag #:
Twin‐Rotary Inverter
Brushless Digitally Controlled/Direct
DFS‐SB‐AD‐004‐US 013A08
14‐118
0‐64
R410A
EEV
57
209.4
222.6
GoldFin™
2
4
4 X 18
1
FVC68D
Propeller
2
2,119
Page 1 of 5
