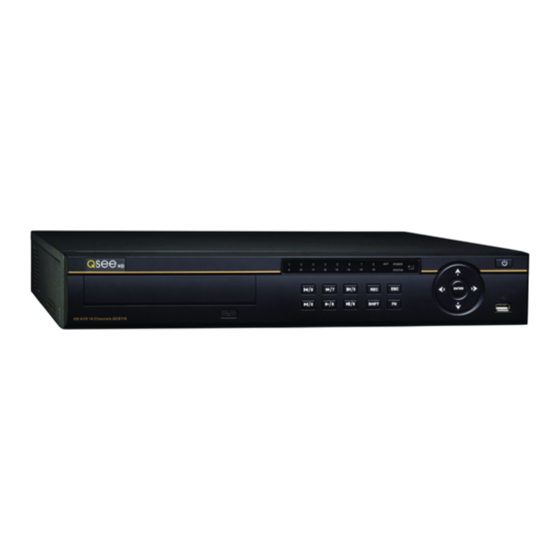

Q-See QC8116 Specifications

16 Channel NVR | Real-Time| 1080p Resolution | 16 POE Ports
QC8116
Assemble a surveillance arsenal what offers the ultimate in flexibility and clarity. Q-See's sixteen channel NVR with sixteen
integrated POE ports offers an effortless solution for high-end protection. Thanks to the integrated POE (Power Over Ethernet) ports,
up to sixteen IP cameras can be directly connected to the NVR with just a single cat5e Ethernet cable. For even more versatility, the
QC8116 NVR can connect to and record from offsite cameras through just an internet network. Enjoy this added convenience of an
extra layer of security by placing the NVR in a safe, low-risk location separate from the cameras!This NVR also comes standard with
an array of remote monitoring features to always keep you connected. Check in on any of the cameras from smart phone or tablet.
The NVR can even be configured to send out real-time email alerts when motion is detected.
In addition to set of impressive standard features, the QC8116 records in real-time 1080p resolution. At 30 frames per second,
recorded video plays back smoothly and clearly. High definition 1080p provides more viewing pixels (1920x1080 pixels), which
translates into a higher resolution image with amazing detail and superior recognition. With a Q-See NVR, you don't need to trade
crystal clear video for choppy playback!
As the frontrunner in innovation, Q-See is the trusted leader in surveillance solutions for home and business, delivering peace of
mind anywhere, anytime.
FEATURES:
• Sixteen Channel Real-Time NVR
• High Definition 1080p Recording
• Sixteen Integrated POE Ports
• Remote Monitoring Via Free Apps
• HDMI Port For High Resolution Playback
• Connect up to 16 High Definition IP Cameras
SPECIFICATIONS:
NVR
Model
Video Compression
Max Hard Drive Storage
Backup Via
Power
Recording Option
Resolution
Recording Mode
Video Inputs/Outputs
Audio Inputs/Outputs
Alarm Sensor Inputs/Outputs
Network Interface
Pan/Tilt/Zoom Control
Viewing
NTSC
Live Display Resolution
Display Modes
QC8116(NVR)
Advanced H.264
Supports 4 SATA HDD up to 4 TB each (Not Included)
PC, Flash Drive, USB Hard Drive
AC 110 / 240V
NTSC: 1080p: Real Time: 480 FPS (30 FPS Per Channel),
NTSC: 1080p (1920x1080),
Motion Detection, Time Schedule, Alarm Trigger, Manual
16 POE Input(s) / 1 BNC Input(s) / 1 VGA Output(s) / 1 HDMI Output(s) / 1 BNC Output(s)
1 BNC Input(s) / 1 BNC Output(s)
16 Input(s) / 4 Output(s)
RJ-45 for Router Connection Enabling Remote Monitoring
1 RS-485 Connection
1920x1080, 1280x720
Single Camera, Split Screen Multi-Camera, Auto-Sequence
