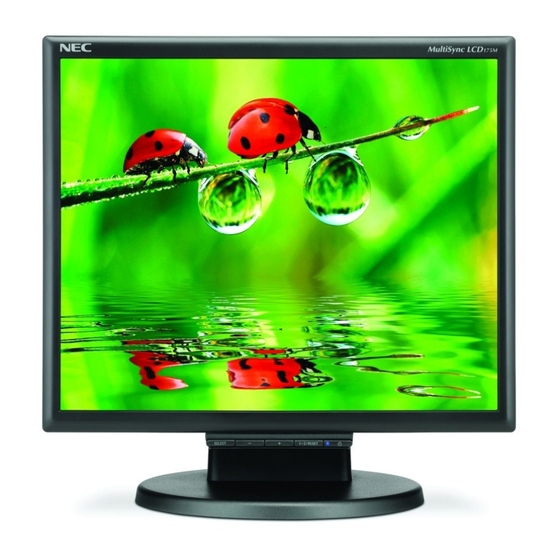

One World Touch DM-1700 Specifications


Using NEC Model LCD175M-BK

5-Point Multi- Touch

Integrated Speakers


3 Year Limited Warranty

Product Specifications:
Size/Type
Touch Technology
Brightness
Contents of Packaging
Contrast Ratio
Dimensions
Display Colors
Input Video Signal
Input
Limited Warranty
Operating Altitude
Operating Humidity
Operating Temperature
Pixel Pitch
Power Consumption
Resolutions Supported
One World Touch, LLC • 3003-B Howard Lane, Austin TX 78728 • 512.341.9300 Main •
17" Multi-Touch LCD Monitor
(DM-1700 Model)
17 inch Diagonal/ Active Matrix LCD Display
Projective Capacitive 5-Point Multi-Touch
(typical) 250 cd/m2
User's Manual, Power Cord, Video Cable(s), Setup Sheet & Driver CD
(typical) 1000:1
Net (with stand):
14.5 in. (W) x 14.1-16.1 in. (H) x 9.1 in. (D)
368 mm (W) x 358.5-408.5 mm (H) x 230 mm (D)
Net (without stand):
14.5 in. (W) x 12.6 in. (H) x 2.4 in. (D)
368 mm (W) x 320.5 mm (H) x 61 mm (D)
More than 16 million
(Dependent upon display card used)
ANALOG: 0.7 Vp-p/75 Ohms
DVI-D and VGA 15 pin D-sub
3 Years Parts and Labor including Backlight
3048m / 10,000 ft.
30-80%
5-35°C / 41-95°F
.264 mm
On: 21W
Power saving mode: 0.4W
720 x 400 at 70 Hz
640 x 480 at 60 Hz-75 Hz
800 x 600 at 56 Hz-75 Hz
832 x 624 at 75 Hz
1024 x 768 at 60 Hz-75 Hz
1152 x 864 at 70 Hz-75Hz
1152 x 870 @ 75 Hz
1280 x 1024 @ 60-75 Hz
1280 x 960 @ 60-75 Hz
1280 x 1024 @ 60-75 Hz
NOTE: Some systems may not support all modes listed.
www.oneworldtouch.com
