Kenwood RXD-M55-H Service Manual

Kenwood micro hi-fi component system service manual
Hide thumbs

Advertisement

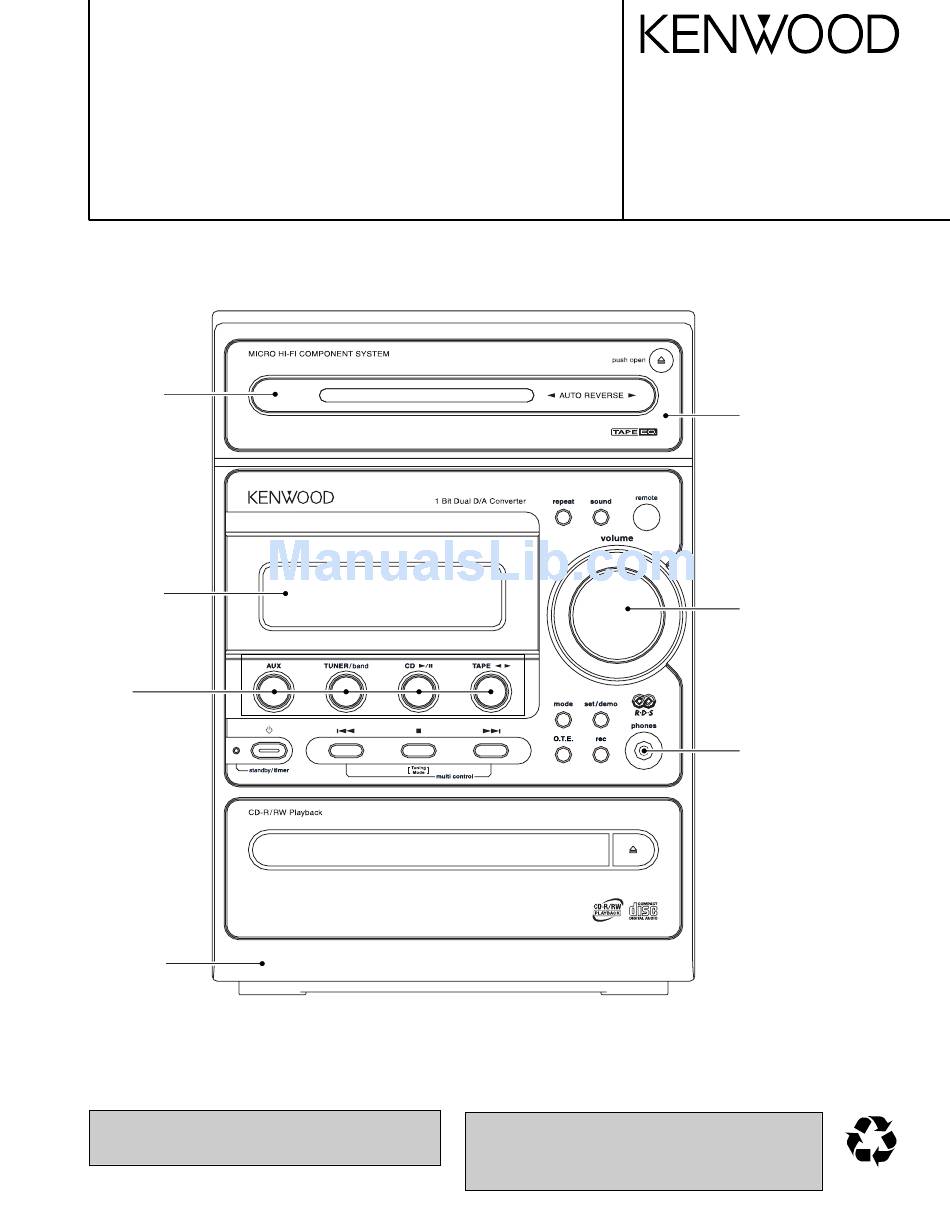

MICRO HI-FI COMPONENT SYSTEM
RXD-M55-H/M55-N/M55-S
RXD-M55E-H/M55E-N/M55E-S
SERVICE MANUAL
Front glass *
(B10-)
Front glass *
(B10-)
Knob *
(K29-)
Panel ass'y *
(A60-)
In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser
product safety.
© 2002-4 PRINTED IN KOREA
B51-5790-00 (K/K) 3729
* Refer to parts list on page 25.
KENWOOD-Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
Cassette lid *
(A53-)
Knob *
(K29-)
Miniature Phone jack
(E11-0399-05)
70%
