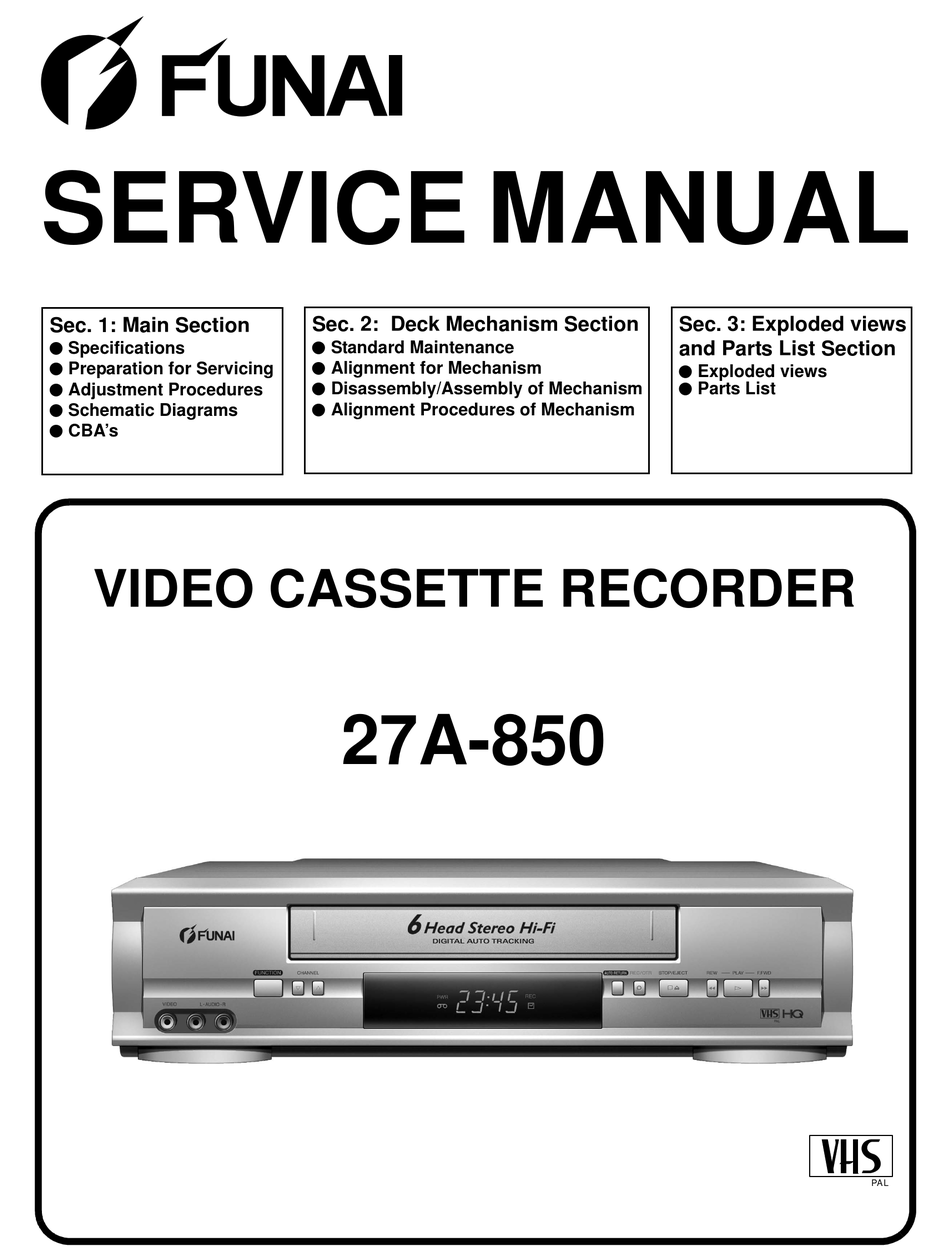

SERVICE MANUAL
Sec. 1: Main Section
I Specifications
I Preparation for Servicing
I Adjustment Procedures
I Schematic Diagrams
I CBA's
VIDEO CASSETTE RECORDER
Sec. 2: Deck Mechanism Section
I Standard Maintenance
I Alignment for Mechanism
I Disassembly/Assembly of Mechanism
I Alignment Procedures of Mechanism
27A-850
Sec. 3: Exploded views
and Parts List Section
I Exploded views
I Parts List
PAL

Advertisement

Table of Contents
loading

Related Manuals for FUNAI 27A-850

Summary of Contents for FUNAI 27A-850

  • Page 1 Parts List Section I Specifications I Alignment for Mechanism I Preparation for Servicing I Exploded views I Disassembly/Assembly of Mechanism I Parts List I Adjustment Procedures I Alignment Procedures of Mechanism I Schematic Diagrams I CBA’s VIDEO CASSETTE RECORDER 27A-850...

  • Page 2: Table Of Contents

    MAIN SECTION VIDEO CASSETTE RECORDER 27A-850 Sec. 1: Main Section I Specifications I Preparation for Servicing I Adjustment Procedures I Schematic Diagrams I CBA’s TABLE OF CONTENTS Specifications ................1-1-1 Important Safety Precautions.

  • Page 3: Specifications

    SPECIFICATIONS Description Unit Minimum Nominal Maximum Remark 1. Video 1-1. Video Output (PB) Vp-p FL6A 1-2. Video Output (R/P) Vp-p SP Mode, 1-3. Video S/N Y (R/P) W/O Burst 1-4. Video Color S/N AM (R/P) SP Mode 1-5. Video Color S/N PM (R/P) SP Mode 1-6.

  • Page 4: Important Safety Precautions

    IMPORTANT SAFETY PRECAUTIONS Product Safety Notice I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder Some electrical and mechanical parts have special droplets, etc.) do not remain inside the set. safety-related characteristics which are often not evi- K.

  • Page 5: Safety Check After Servicing

    Safety Check after Servicing Chassis or Secondary Conductor Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original posi- Primary Circuit Terminals tions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.

  • Page 6: Standard Notes For Servicing

    STANDARD NOTES FOR SERVICING Circuit Board Indications How to Remove / Install Flat Pack-IC a. The output pin of the 3 pin Regulator ICs is indi- 1. Removal cated as shown. With Hot-Air Flat Pack-IC Desoldering Machine:. (1) Prepare the hot-air flat pack-IC desoldering Top View Bottom View machine, then apply hot air to the Flat Pack-IC...
  • Page 7 With Soldering Iron: (4) Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply (1) Using desoldering braid, remove the solder from all soldering iron to center of the flat pack-IC and heat pins of the flat pack-IC.

  • Page 8: Instructions For Handling Semi-Conductors

    2. Installation Instructions for Handling Semi-conductors (1) Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA Electrostatic breakdown of the semi-conductors may so you can install a replacement flat pack-IC more occur due to a potential difference caused by electro- easily.

  • Page 9: Preparation For Servicing

    PREPARATION FOR SERVICING How to Enter the Service Mode About Optical Sensors Caution: An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically. What to do for preparation Insert a tape into the Deck Mechanism Assembly and press the PLAY button.

  • Page 10: Cabinet Disassembly Instructions

    CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart (1): Identification (location) No. of parts in the figures (2): Name of the part This flowchart indicates the disassembly steps to gain (3): Figure Number for reference access to item(s) to be serviced. When reassembling, (4): Identification of parts to be removed, unhooked, follow the steps in reverse order.
  • Page 11 (L-2) (L-2) [4] Jack CBA (S-5) Desolder [2] Front Assembly Fig. 4 (L-1) Fig. 2 (S-2) (S-2) (S-3) (S-2) (S-3) (S-4) [3]VCR Chassis (S-3) Unit (S-2) Fig. 3 1-5-2 HE450DC...
  • Page 12 [7] Cylinder Shield Cylinder Assembly FE Head (S-7) SW507 AC Head LD-SW Assembly [6] Main CBA [8] Jack Board (L-3) [5] Deck Assembly [5] Deck Assembly Cam Gear Hole Shaft [6] Main CBA Hole (S-6) LD-SW [6] Main CBA Fig. 6 (S-6) TOP VIEW From...

  • Page 13: Electrical Adjustment Instructions

    ELECTRICAL ADJUSTMENT INSTRUCTIONS General Note: "CBA" is an abbreviation for Head Switching Position Adjustment "Circuit Board Assembly." Purpose: NOTE: To determine the Head Switching point during 1.Electrical adjustments are required after replacing playback. circuit components and certain mechanical parts. Symptom of Misadjustment: It is important to do these adjustments only after all repairs and replacements have been com- May cause Head Switching noise or vertical jitter...

  • Page 14: Block Diagrams

    BLOCK DIAGRAMS Servo/System Control Block Diagram IC501 AL+5V TP507 (SERVO/SYSTEM CONTROL) MAIN CBA SW507 SENS-INH RS501 LD-SW REMOTE D502 REMOCON-IN KEY- 1 SENSOR SWITCH S-LED Q504 AL+5V LD-SW KEY- 2 ST-S CTL(+) CTL(-) SWITCH FP562 ST-S SENSOR CBA IC561 END-S LED CLOCK (FIP DRIVE) T-REEL...

  • Page 15: Video Block Diagram

    Video Block Diagram REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC MAIN CBA FROM IC501 (OSD) IIC-BUS SDA SERVO/SYSTEM CONTROL BLOCK IIC-BUS SCL CHARACTER COLOR IC301 Q351 BUFFER (Y/C SIGNAL PROCESS) (DECK ASSEMBLY) SERIAL V-IN1 Y. DELAY DECORDER SERVO/SYSTEM CYLINDER ASSEMBLY TU-VIDEO CONTROL BLOCK CL253 V(R)-1...

  • Page 16: Audio Block Diagram

    Audio Block Diagram PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC MAIN CBA N-A-PB TO Hi-Fi N-A-REC AUDIO BLOCK IC301 (AUDIO SIGNAL PROCESS) TUNER PB-ON LINE MUTE (DECK ASSEMBLY) SP/LP-ON ACE HEAD ASSEMBLY REC-ON Q401 CL287 CL504 A-PB/REC AUDIO 4 A-PB/REC Q402 HEAD A-COM...
  • Page 17 Hi-Fi Audio Block Diagram PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC JACK CBA CL509 JK751 MAIN CBA A-OUT1(L) A-OUT JK101 CL101 CL151 A-OUT1(R) A-IN1(R) A-IN1(R) A-IN1(L) A-IN1(L) A-OUT A-OUT1(R) 6 A-OUT1(R) A-OUT1(L) A-OUT1(L) 12 SUB JACK CBA JK102 CL102 CL152 A-IN2(R) A-IN2(R) A-IN2(L)
  • Page 18 Power Supply Block Diagram CAUTION CAUTION ! NOTE : FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit. The voltage for parts in hot circuit is measured using If Main Fuse (F001) is blown, check to see that all components in the power supply REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.

  • Page 19: Function Indicator Symbols

    FUNCTION INDICATOR SYMBOLS Note: The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR. On-screen modes will also be momentarily displayed on the tv screen when you press the operation buttons. Display panel "...

  • Page 20: Schematic Diagrams / Cba's And Test Points

    SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes Notes: WARNING 1. Do not use the part number shown on these draw- ings for ordering. The correct part number is shown Many electrical and mechanical parts in this chassis in the parts list, and may be slightly different or have special characteristics.
  • Page 21 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply.
  • Page 22 Main 1/6 Schematic Diagram 1-8-3 1-8-4 HE4F0SCM1...
  • Page 23 Main 2/6 & Sensor Schematic Diagram 1-8-5 1-8-6 HE4F0SCM2...
  • Page 24 Main 3/6 Schematic Diagram 1-8-7 1-8-8 HE4F0SCM3...
  • Page 25 Main 4/6 & Jack Schematic Diagram HE4F0SCM4 1-8-9 1-8-10...
  • Page 26 Main 5/6 Schematic Diagram CAUTION ! NOTE : CAUTION ! For continued protection against fire hazard, The voltage for parts in hot circuit is measured using Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. replace only with the same type fuse.
  • Page 27 Main 6/6 Schematic Diagram 1-8-13 1-8-14 HE4F0SCM6...
  • Page 28 AFV Schematic Diagram 1-8-15 1-8-16 HE4F0SCAFV...
  • Page 29 Main CBA Top View CAUTION ! BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER CAUTION ! For continued protection against fire hazard, SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. replace only with the same type fuse.
  • Page 30 Main CBA Bottom View CAUTION ! BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER CAUTION ! For continued protection against fire hazard, SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. replace only with the same type fuse.
  • Page 31 Jack CBA Top View Jack CBA Bottom View BHE470F01013-C 1-8-21 1-8-22...
  • Page 32 Sub Jack CBA Top View Sub Jack CBA Bottom View BHE470F01013-B AFV CBA Top View AFV CBA Bottom View BHC400F01091 1-8-23 1-8-24...

  • Page 33: Waveforms

    WAVEFORMS (TP301 of Main CBA) UPPER (TP502 of Main CBA) LOWER C-PB 10mV x 10 RF-SW 0.5V x 10 5msec (J23 of Main CBA) UPPER (TP502 of Main CBA) LOWER V-OUT 0.1V x 10 RF-SW 0.5V x 10 50usec (J23 of Main CBA) V-OUT E-E 10usec 50mV x 10...

  • Page 34: Wiring Diagram

    WIRING DIAGRAM AC CORD FRONT VIDEO AUDIO AUDIO IN (R) IN (L) ANT-IN ANT-OUT CN701 SENSOR CBA 1 NU (BHB300F01014) 3 GND AFV CBA TU-AUDIO(R) (DECK ASSEMBLY) SENSOR CBA (BHC400F01091) TU-AUDIO(L) (BHB300F01014) P-ON+5V AC HEAD ASSEMBLY P-ON+5V CL287 CL504 IIC-BUS SCL AUDIO AE-H AE-H...

  • Page 35: Ic Pin Function Descriptions

    IC PIN FUNCTION DESCRIPTIONS IC501( SERVO / SYSTEM CONTROL IC ) Signal Active Function Name Level “H” ≥ 4.5V, “L” ≤ 1.0V N.U. Not Used Signal Active Function Name Level N.U. Not Used Input Signal from N.U. Not Used IN SC2-IN Pin 8 of SCART2 SCART 2 RGB 27 OUT RGB-...
  • Page 36 Signal Active Signal Active Function Function Name Level Name Level LPF Connected Audio Mute Control 83 OUT A-MUTE-H Terminal (Slicer) Signal (Mute = “H”) N.U. Not Used CTL Frequency Characteristics 84 OUT FF/REW-L N.U. Not Used Switching Signal (FF/REW=”L”) N.U. Not Used N.U.

  • Page 37: Lead Identifications

    LEAD IDENTIFICATIONS 2SC1815-BL(TPE2) LTV-817(B.C)-F BN1L4M-T 2SC1815-Y(TPE2) EL817(A,B,C) BN1F4M-T 2SC1815-GR(TPE2) BA1F4M-T 2SC3266-Y (TPE2) KTA1266(GR) 2SC2120-Y(TPE2) KTC3199(Y,GR,BL) KTC3203(Y) 2SC2785(J.H.F.K) 2SC1815-BL(TPE2) KRA103M 2SA1020(Y) KRC103M KTC3205(Y) KRA104M 2SA1015-GR(TPE2) KTA1281(Y) E C B E C B PT204-6B-12 CAT24WC04JI LC74793JM-TRM MID-32A22 PT-6958-FN-TP BR24C04F-W MSP3407G-QG-B8 KTA1504GR-RTK MSP3407G-QG-B8-V3 RN1511(TE85R) KTA1504Y-RTK FMG4A T148...
  • Page 38 DECK MECHANISM SECTION VIDEO CASSETTE RECORDER 27A-850 Sec. 2: Deck Mechanism Section I Standard Maintenance I Alignment for Mechanism I Disassembly/Assembly of Mechanism I Alignment Procedures of Mechanism TABLE OF CONTENTS Standard Maintenance ..............2-1-1 Service Fixtures and Tools.

  • Page 39: Standard Maintenance

    STANDARD MAINTENANCE Service Schedule of Components H: Hours : Check I: Change Deck Periodic Service Schedule Ref.No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H Cylinder Assembly Loading Motor Assembly Pulley Assembly B587 Tension Lever Assembly AC Head Assembly B573,B574 Reel S, Reel T Capstan Motor...
  • Page 40 Cleaning Cleaning of Audio Control Head Clean the head with a cotton swab. Cleaning of Video Head Procedure Clean the head with a head cleaning stick or chamois 1.Remove the top cabinet. cloth. 2.Dip the cotton swab in 90% isopropyl alcohol and Procedure clean the audio control head.

  • Page 41: Service Fixtures And Tools

    SERVICE FIXTURE AND TOOLS J-1-1, J-1-2 Ref. No. Name Part No. Adjustment J-1-1 Alignment Tape FL6A Head Adjustment of Audio Control Head J-1-2 Alignment Tape FL6N8 Azimuth and X Value Adjustment of Audio Control (1 speed only) Head / Adjustment of Envelope Waveform FL6NS8 (2 speed only) Guide Roller Adj.Screwdriver...

  • Page 42: Mechanical Alignment Procedures

    MECHANICAL ALIGNMENT PROCEDURES Explanation of alignment for the tape to correctly run B. Method to place the Cassette Holder in the tape- starts on the next page. Refer to the information below loaded position without a cassette tape on this page if a tape gets stuck, for example, in the 1.
  • Page 43 1.Tape Interchangeability Alignment Note: To do these alignment procedures, make sure that the Tracking Control Circuit is set to the center position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.) Equipment required: Dual Trace Oscilloscope VHS Alignment Tape (FL6NS8) Guide Roller Adj.
  • Page 44 1-A. Preliminary/Final Checking and 3. Check to see that the tape runs without creasing at Alignment of Tape Path Take-up Guide Post [4] or without snaking between Guide Roller [3] and AC Head. (Fig. M3 and M5) Purpose: 4. If creasing or snaking is apparent, adjust the Tilt To make sure that the tape path is well stabilized.
  • Page 45 1-D. Azimuth Alignment of Audio/Con- 6. Press CH DOWN button on the unit until the CTL waveform has shifted from its original position (not trol/ Erase Head the position achieved in step 5, but the position of Purpose: CTL waveform in step 4) by approximately -2msec. To correct the Azimuth alignment so that the Audio/ Make sure that the envelope is simply attenuated Control/Erase Head meets tape tracks properly.

  • Page 46: Disassembly/Assembly Procedures Of Deck Mechanism

    DISASSEMBLY/ASSEMBLY PROCEDURES OF DECK MECHANISM Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS on page 1-5-1.) All the following procedures, including those for adjustment and replacement of parts, should be done in Eject mode;...
  • Page 47 REMOVAL INSTALLATION STEP START- REMOVE/*UNHOOK/ /LOC. PART ADJUSTMENT Fig. No. UNLOCK/RELEASE/ CONDITION UNPLUG/DESOLDER Loading Arm (SP) (+)Refer to Alignment [34] [26] DM2,DM14 Assembly Sec.Pg.2-4-8 Loading Arm (TU) (+)Refer to Alignment [35] [34] DM2,DM14 Assembly Sec.Pg.2-4-8 M Brake (TU) Assembly [36] [16],[26] DM1,DM15 (HI)

  • Page 48: Top View

    Top View [44] [45] [49] [46] [14] [13] [11] [15] [38] [10] [12] [37] [36] [43] [32] [41] [31] [40] [42] Fig. DM1 Bottom View [19] [35] [34] [25] [23] [24] [26] [27] [22] [28] [20] [33] Fig. DM2 2-4-3 U27HSPAL2DA...
  • Page 49 (S-1) (S-1) (L-1) (L-3) (L-2) (S-1A) (P-1) Fig. DM5 [49] Fig. DM3 [50] Pin D (L-12) Pin C Pull up Slide Pin A Pin B Slot A (S-2) Slots B Slot A First, while pushing the locking tab as shown in the right, slide and pull up the right side on [2] to release Pin A and Pin B from the slots A.
  • Page 50 (S-4) (S-5) [14] (S-6) [15] Desolder from bottom (S-3) Lead with White Stripe Belt View for A Fig. DM7 Fig. DM9 Adj. Screw [11] [17] (L-4) (L-5) (P-3) [16] [13] [18] [12] (P-4) [10] (P-2) (S-7) Pin of [12] Pin of [10] Fig.
  • Page 51 [26] (S-8) (C-3) (S-9) (L-8) [23] (L-7) [24] (C-5) (C-4) (C-2) [28] [25] [29] [30] [19] Cap Belt [27] Fig. DM11 turn (C-1) [22] [20] (L-6) [31] [21] Position of Mode Lever when installed Pin of [37] Pin of [33] Pin of [36] Bottom View [26]...
  • Page 52 (P-5) [45] [33] [44] Refer to the Alignment [46] Section, Page 2-4-8. (L-11) [35] [32] (L-9) [34] Fig. DM16 Fig. DM14 [38] [36] [43] (P-6) turn [39] (L-10) turn [47] [42] [48] Slide turn Fig. DM17 [37] (C-7) [41] (C-6) [40] Fig.

  • Page 53: Alignment Procedures Of Mechanism

    ALIGNMENT PROCEDURES OF MECHANISM The following procedures describe how to align the Alignment 1 individual gears and levers that make up the tape load- Loading Arm (SP) and (TU) Assembly ing/unloading mechanism. Since information about the state of the mechanism is provided to the System Install Loading Arm (SP) and (TU) Assembly so that Control Circuit only through the Mode Switch, it is their triangle marks point to each other as shown in...
  • Page 54 EXPLODED VIEWS AND PARTS LIST SECTION VIDEO CASSETTE RECORDER 27A-850 Sec. 3: Exploded views and Parts List Section I Exploded views I Parts List TABLE OF CONTENTS Exploded Views ............... . 3-1-1 Mechanical Parts List .

  • Page 55: Exploded Views

    EXPLODED VIEWS Front Panel 3-1-1 HE450FEX...
  • Page 56 Cabinet 2L011 2B18 2L011 2L011 2L011 JACK CBA 2L011 2L012 2L022 2L042 2L021 2L021 2L051 2L021 2L021 2L041 2L022 2L041 2L021 SUB JACK CBA SENSOR CBA 2L031 AFV CBA 2L041 MAIN CBA 2L099 2B46 3-1-2 HE450CEX...
  • Page 57 Packing X20A X20B X20C X20E X20D X20F Some Ref. Numbers are not in sequence. Unit 3-1-3 HE4F0PEX...

  • Page 58: Chassis (S

    DECK EXPLODED VIEWS Deck Mechanism View 1 Mark Description Floil G-684G or Multemp MH-D (Blue grease) SLIDUS OIL #150 B494 L1467 L1191 B553 B411 B567 L1053 B410 L1051 Chassis Assembly Top View (Lubricating Point) B501 L1450 L1450 L1466 B121 B126 B492 B571 Chassis Assembly...
  • Page 59 Deck Mechanism View 2 Mark Description Floil G-684G or Multemp MH-D (Blue grease) SLIDUS OIL #150 B587 B521 B487 SANKOUL FG84M (Yellow grease) B416 B591 B590 B522 B499 L1406 B148 B573 B508 B574 B592 B585 B518 B558 B564 B557 B414 B572 B565 L1151...
  • Page 60 Deck Mechanism View 3 Mark Description Floil G-684G or Multemp MH-D (Blue grease) SLIDUS OIL #150 L1321 B347 L1321 B355 B354 B483 L1341 B425 B482 B562 B300 B563 B313 B529 B360 B359 B361 B555 B303 Some Ref. Numbers are not in sequence. B514 3-1-6 U27HSPA2DEX...

  • Page 61: Mechanical Parts List

    MECHANICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Description Part No. ! have special characteristics important to safety. X20E! OWNER'S MANUAL(GERMAN) HE4F0ED 0VMN03632 Before replacing any of these components, read care- X20F! OWNER'S MANUAL(ENGLISH) HE4F0ED 0VMN03633 fully the product safety notice in this service manual.

  • Page 62: Electrical Parts List

    ELECTRICAL PARTS LIST PRODUCT SAFETY NOTE: Products marked with a Ref. No. Description Part No. ! have special characteristics important to safety. C026 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470 Before replacing any of these components, read care- C053 ELECTRIC DOUBLE LAYER CAP0.047F/5.5V Z CA0J473NE003 fully the product safety notice in this service manual.
  • Page 63 Ref. No. Description Part No. Ref. No. Description Part No. CHIP CERAMIC CAP. CG J 68pF/50V CHD1JJ3CG680 C421 ELECTROLYTIC CAP. 33µF/6.3V M H7 CE0KMAVSL330 C325 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 C422 ELECTROLYTIC CAP. 4.7µF/25V M H7 CE1EMAVSL4R7 CHIP CERAMIC CAP.
  • Page 64 Ref. No. Description Part No. Ref. No. Description Part No. C484 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100 C701 CHIP CERAMIC CAP. B K 0.047µF/50V or CHD1JK30B473 C485 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 CHIP CERAMIC CAP. B K 0.047µF/25V CHD1EK30B473 CHIP CERAMIC CAP.
  • Page 65 Ref. No. Description Part No. Ref. No. Description Part No. D051 RECTIFIER DIODE 1N4005 NDQZ001N4005 L561 INDUCTOR 68µH-K-26T LLAXKATTU680 D052 RECTIFIER DIODE 1N4005 NDQZ001N4005 L562 INDUCTOR 56µH-K-26T LLAXKATTU560 D053 RECTIFIER DIODE 1N4005 NDQZ001N4005 L701 INDUCTOR 10µH-K-26T LLAXKATTU100 D054 RECTIFIER DIODE 1N4005 NDQZ001N4005 L702 CHOKE COIL 47µH-K or...
  • Page 66 Ref. No. Description Part No. Ref. No. Description Part No. CARBON RES. 1/4W J 1.2k Ω Q405 CHIP TRANSISTOR FMG4A T148 or QQ2Z000FMG4A R065 RCX4JATZ0122 CHIP RES.(1608) 1/10W J 47k Ω CHIP TRANSISTOR RN1511(TE85R) QQ2Z00RN1511 R066 RRXAJR5Z0473 CARBON RES. 1/4W J 680 Ω Q406 CHIP TRANSISTOR KTC3875Y-RTK NQ1Y0KTC3875...
  • Page 67 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES.(1608) 1/10W J 12k Ω CHIP RES.(1608) 1/10W J 330k Ω R408 RRXAJR5Z0123 R516 RRXAJR5Z0334 CHIP RES.(1608) 1/10W J 5.6k Ω CHIP RES.(1608) 1/10W J 560 Ω R409 RRXAJR5Z0562 R517 RRXAJR5Z0561 CHIP RES.(1608) 1/10W J 1k Ω...
  • Page 68 Ref. No. Description Part No. Ref. No. Description Part No. CHIP RES.(1608) 1/10W J 1k Ω R852 RRXAJR5Z0102 TP507 PCB JUMPER D0.6-P6.0 JW6.0T CHIP RES.(1608) 1/10W J 1k Ω R853 RRXAJR5Z0102 TU701 TUNER UNIT TMDG2-631A UTUNPLBAL012 CARBON P.O.T. 100k Ω B SWITCHES VR501 VRCB104HH014...
  • Page 69 Ref. No. Description Part No. Ref. No. Description Part No. D105 ZENER DIODE DZ-11BSAT265 or NDTA00DZ11BS CAPACITORS ZENER DIODE MTZJT-7711A QDTA00MTZJ11 CHIP CERAMIC CAP. F Z 0.1µF/50V or CHD1JZ30F104 COILS CHIP CERAMIC CAP. F Z 0.1µF/25V or CHD1EZ30F104 L101 BEAD CORE B16 RH 3.5X10X1.3 XL03010XM001 CHIP CERAMIC CAP.

  • Page 70: Deck Parts List

    DECK PARTS LIST NOTE: Ref. No. Description Part No. Four different, but interchangeable, types of B558 PINCH ARM(A) ASSEMBLY(5) MK12 0VSA13788 (LOADING MOTOR) may be installed in these models. B411 PINCH SPRING MK12 0VM414644 Please confirm B558 (LOADING MOTOR) type by a B414 M BRAKE(SP) ASSEMBLY(HI) MK12 0VSA13655...
  • Page 71 Ref. No. Description Part No. L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ GBMS3060 L1341 SCREW, P-TIGHT 2X8 PAN HEAD + GPMP2080 L1406 AC HEAD SCREW MK9 0VM410964 L1450 SCREW, SEMS M2.6X5 PAN HEAD+ CPM39050 L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ GBMS9060 L1467 SCREW, S-TIGHT M2.6X5 WASHER HEAD+ GCMS9050...
