Summary of Contents for Mark Audio AS601

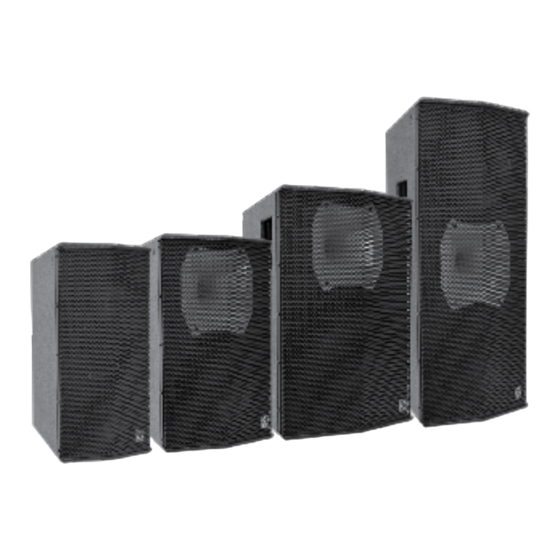

- Page 1 AS601 AS602 AS101 AS121 AS121F AS102 Owner’s Manual v 08.jun.2010...
- Page 2 Congratulations on your purchase of a Markaudio product! Markaudio is a division of Parsek srl dedicated to pro audio sound reinforcement solutions. Building on the top-level reputation built up over many years by our industry-leading bass amplification brand Markbass, Markaudio boasts the same high level of innovation and engineering.
- Page 3 WELCOME TO THE WORLD OF MARKAUDIO 1. AS601, AS602, AS101, AS121, AS121F, AS102 - INTRODUCTION The quality and design of Markaudio cabinets are state-of-the-art. The AS 601 is equipped with a single 6” speaker and a 1” dynamic compression driver and hyperbolic horn.
-
Page 4: Important Safety Instructions
2. IMPORTANT SAFETY INSTRUCTIONS Read these instructions; Keep these instructions; Heed all warnings; Follow all instructions; Do not use this apparatus near water; Clean only with dry a cloth; Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions;... -
Page 5: Précautions D'emploi
2. PRÉCAUTIONS D’EMPLOI Lire ces instructions; Conserver ces instructions; Suivre tous les conseils d’utilisations; Suivre toutes les instructions; Ne pas utiliser cet appareil au bord de l’eau; Nettoyer uniquement avec un chiffon humide; Ne pas bloquer le système de ventilation. Installer conformément aux instructions du fabricant;... - Page 6 CONTROL PANEL - AS601 POWER JACK (1) - VDE power jack for connecting the power cable from the unit to a wall power source. FUSE (2) - Fuse housing. ON/OFF SWITCH (3) - On/off power switch. COOLING (4) - Forced ventilation stabilizes the working temperature of electronic components for continuous performance, even after a long period of operation.
- Page 7 CONTROL PANEL - AS602 AS101 AS121 AS121F AS102 POWER JACK (1) - VDE power jack for connecting the power cable from the unit to a wall power source. FUSE (2) - Fuse housing. ON/OFF SWITCH (3) - On/off power switch. COOLING (4) - Forced ventilation stabilizes the working temperature of electronic components for continuous performance, even after a long period of operation.
-
Page 8: Controls And Connections
4. TECHINCAL DETAILS AS601 AS602 Acoustic Specs Sound Pressure Maximum peak SPL 124 dB 129 dB Frequency Response ±3dB 67 Hz - 20 kHz 64 Hz - 20 kHz Frequency Range ±10dB without Virtual Sub 63 Hz - 20 kHz 58 Hz - 20 kHz ±10dB with Virtual Sub... - Page 9 AS101 AS102 AS121 AS121F 129 dB 132 dB 130 dB 62 Hz - 20 kHz 60 Hz - 20 kHz 65 Hz - 20 kHz 58 Hz - 20 kHz 56 Hz - 20 kHz 58 Hz - 20 kHz 46 Hz - 20 kHz 45 Hz - 20 kHz 46 Hz - 20 kHz...
- Page 12 Product specifications are subject to change without notice. Italy - Via Po, 52 - 66020 San Giovanni Teatino (Ch) Tel. +39 085 446 3755 - Fax +39 085 440 7764 www.markaudio.it - info@markaudio.it...
