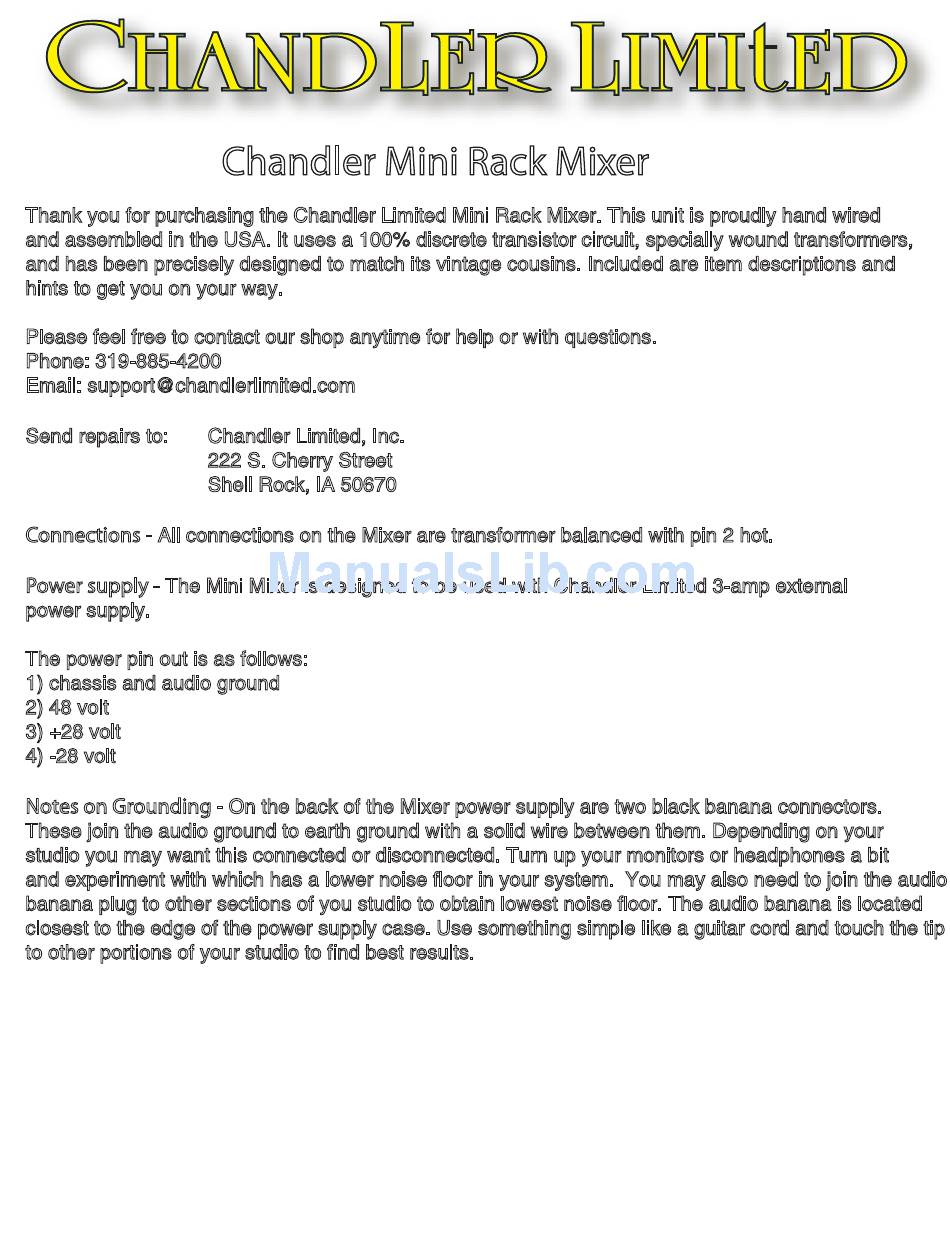

Thank you for purchasing the Chandler Limited Mini Rack Mixer. This unit is proudly hand wired
and assembled in the USA. It uses a 100% discrete transistor circuit, specially wound transformers,
and has been precisely designed to match its vintage cousins. Included are item descriptions and
hints to get you on your way.
Please feel free to contact our shop anytime for help or with questions.
Phone: 319-885-4200
Email: support@chandlerlimited.com
Send repairs to:
Connections -
All connections on the Mixer are transformer balanced with pin 2 hot.
Power supply -
The Mini Mixer is designed to be used with Chandler Limited 3-amp external
power supply.
The power pin out is as follows:
1) chassis and audio ground
2) 48 volt
3) +28 volt
4) -28 volt
Notes on Grounding -
These join the audio ground to earth ground with a solid wire between them. Depending on your
studio you may want this connected or disconnected. Turn up your monitors or headphones a bit
and experiment with which has a lower noise floor in your system. You may also need to join the audio
banana plug to other sections of you studio to obtain lowest noise floor. The audio banana is located
closest to the edge of the power supply case. Use something simple like a guitar cord and touch the tip
to other portions of your studio to find best results.
Chandler Mini Rack Mixer
Chandler Limited, Inc.
222 S. Cherry Street
Shell Rock, IA 50670
On the back of the Mixer power supply are two black banana connectors.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chandler Limited Mini Rack Mixer
Summary of Contents for Chandler Limited Mini Rack Mixer
- Page 1 Chandler Mini Rack Mixer Thank you for purchasing the Chandler Limited Mini Rack Mixer. This unit is proudly hand wired and assembled in the USA. It uses a 100% discrete transistor circuit, specially wound transformers, and has been precisely designed to match its vintage cousins. Included are item descriptions and hints to get you on your way.
- Page 2 The Modules Dual Input - This module is transformer balanced with an input impedance of 10k. Each channel uses a discrete Chandler line amp and is an all discrete class A design. Pan - A standard mixer pan control with a 6db change from center to full left or right. Volume - This is set to unity gain at its full position.
- Page 3 Applications Continued Stereo Insert using External Input - Since pressing the External pushbutton separates the Stereo Buss and Control Room sections, this can create an insert point. Hit the External button, patch the Stereo Output to the input of your mix compressor and the output of the compressor to the rear panel External Input connectors.
