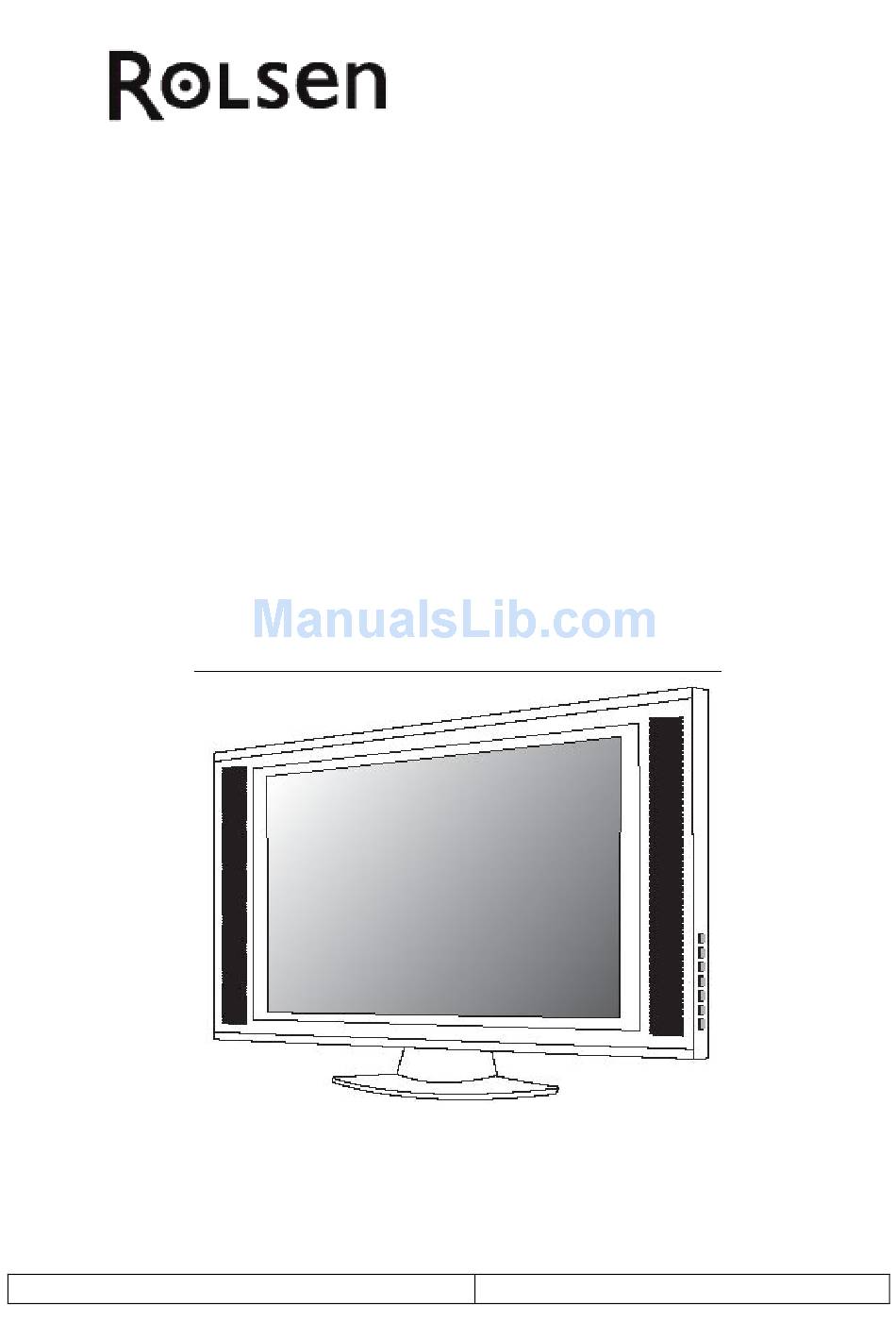

- Page 1 COLOR TFT-LCD TV SERVICE MANUAL MODEL : RL-17S10 CAUTION !! BEFORE SERVICING THE TFT-LCD TV, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. RL-17S10 SERVICE MANUAL PAGE:1...
-
Page 2: Table Of Contents
External In/Out Ports -------------------------------------------------------- 13 Adjustment --------------------------------------------------------------------- 14 Block Diagram ----------------------------------------------------------------- 18 Schematic Diagram ---------------------------------------------------------- 19 Wave Form ---------------------------------------------------------------------- 20 Troubleshooting --------------------------------------------------------------- 25 Replacement Parts List ----------------------------------------------------- 27 PCB Layout --------------------------------------------------------------------- 34 Exploded View ----------------------------------------------------------------- 39 RL-17S10 SERVICE MANUAL PAGE:2... -
Page 3: Safety Precautions
In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit RL-17S10 SERVICE MANUAL PAGE:3... -
Page 4: Servicing Precautions
4.Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. RL-17S10 SERVICE MANUAL PAGE:4... -
Page 5: Specifications
Audio In : 0.4Vrms, over 10K§ Ù Video In : 1Vp-p, over 75§ Ù 8. Function CATV/Hyper band Auto Program Manual Program Auto Sleep Quick view ACMS(Auto channel Memory System) PSM(Picture Status memory) SSM(Sound Status memory) ARC(Aspect Ratio Control) RL-17S10 SERVICE MANUAL PAGE:5... - Page 6 Û 22 PAL 6.5 / 60Hz ¡ Û 23 SECAM 5.5 / 60Hz ¡ Û 24 SECAM 6.0 / 60Hz ¡ Û 25 SECAM 6.5 / 60Hz ¡ Û 26 SECAM L / L' TOTAL SYSTEM RL-17S10 SERVICE MANUAL PAGE:6...
- Page 7 NTSC 3.58/4.5MHz/60Hz only 21 PAL 6.5MHz / 60Hz player 22 SECAM 5.5MHz/60Hz 23 SECAM 6.0MHz/60Hz 24 SECAM 6.5MHz/60Hz 25 NTSC-3.58 / 5.5MHz Play-back for special 26 NTSC-3.58 / 6.0MHz Video Tape Recorder 27 NTSC-3.58 / 6.5MHz RL-17S10 SERVICE MANUAL PAGE:7...
- Page 8 If possible, use the VESA 1024x768 PC video mode to obtain the best image quality for your LCD TV. ¨ Ï Some dot defects may appear on the screen, like Red, Green or Blue spot. however, this will have no impact or effect on the monitor performance. RL-17S10 SERVICE MANUAL PAGE:8...
- Page 9 Viewing Angle<CR≥10> : Hor [Left/Right] 88Deg (Typ) / 88Deg (Typ), Ver [High(Top)/Low(Bottom)] 88Deg (Typ) / 88Deg (Typ) Luminance(Typ) : 450 cd/§ ³ (Typ) Contrast Ratio(Typ) : 400(Typ) Display Color : 16,777,216 Color Back Light : 6 CCFL RL-17S10 SERVICE MANUAL PAGE:9...
-
Page 10: Control Descriptions
S-VIDEO or PC mode. Clears the menu from the screen. 7. MENU Displays a main menu. 8. I / II Selects the language during dual language broadcast. Selects the sound output. 9. Q.VIEW Returns to the previously viewed channel. RL-17S10 SERVICE MANUAL PAGE:10... - Page 11 15. ARC (Aspect Ratio Control) Selects a screen mode 16:9 or 4:3. 16. SCART Selects the SCART mode. 17. VIDEO Selects the VIDEO mode. 18. S-VIDEO Selects the S-VIDEO mode. 19. PC Selects the PC mode. RL-17S10 SERVICE MANUAL PAGE:11...
- Page 12 Illuminates red when the TV is in power stand-by mode. Illuminates green when the TV is switched power on mode. 7.REMOTE CONTROL SENSOR: ¡ Ý ¡ Ý Accepts the IR signal of remote controller. <SIDE VIEW> RL-17S10 SERVICE MANUAL PAGE:12...
-
Page 13: External In/Out Ports
Connect the audio outputs of an S-VIDEO VCR to the AV-IN audio inputs. 7. A/V IN inputs Connect the Audio/Video outputs of external equipment to these inputs. 8. ANT(Antenna input) Connect the RF cable from the ANT Port of home or office to the ANT. of the set. RL-17S10 SERVICE MANUAL PAGE:13... -
Page 14: Adjustment
3. Press YELLOW button on the Remote Controller several times to find AGC. 4. Press Volume UP/DOWN button until the AGC Voltage is the same as the Table below. 5. Press OK button to memorize the data. 6. Press TV/AV button to exit SVC mode. RL-17S10 SERVICE MANUAL PAGE:14... - Page 15 Not apply to ACMS ACMS Apply to ACMS Used except for CHINESS or AUSTRALIA CH+AU Used CHINESS or AUSTRALIA BG/I/DK BG/I/DK/L BG/I/DK/M 50 PR * * means current program NO. Opt 1 Translate HEX into DEC(DATA3VALUE1) RL-17S10 SERVICE MANUAL PAGE:15...
- Page 16 TURK GRE2 TURK GRE3 TURKEY/GREECE ARAB ERA ARAB ENG ARAB CULTURE ARAB HEB1 ARAB HEB2 ARAB/HEBREW FARS ENG PARSI FARS FRA FARS ALL 50 PR * * means current program NO. Opt 2 Translate HEX into DEC(DATA4) RL-17S10 SERVICE MANUAL PAGE:16...
- Page 17 FUNCTION REMARK 6-KEY Local key option 4-KEY W/O COMPONENT Disable COMPONENT Enable AMERICA English, French, Espanol ENG 2EA English, Espanol, Portugunese LANG KOREA Korea, RESERVED English AMERICA Tuning option of each country KOREA TUNE JAPAN RESERVED RL-17S10 SERVICE MANUAL PAGE:17...
-
Page 18: Block Diagram
BLOCK DIAGRAM Block Diagram RL-17S10 SERVICE MANUAL PAGE:18... -
Page 20: Schematic Diagram
(1V-p-p, Input = Vertical color pattern) (0.7V-p-p, Input = Vertical color pattern) 3) Component Cr input, 4) S-video C signal input. (0.7V-p-p, Input = Vertical color pattern) 5) S-video Y signal input.(15.7Khz,1Vp-p) 6) CVBS Video signal input.(15.7Khz,1Vp-p) RL-17S10 SERVICE MANUAL PAGE:20... - Page 21 NOTE!!: Video = Gray scale pattern input / Audio = 1Khz input at volume step 40. 7) Tuner sound IF output (4.5Mhz) 8)Tuner mono audio output 9) Tuner 33V input (about 32V~34V) 10)Tuner CVBS video output (15Khz,1Vp-p) 11)IC601 Pin#27,28 Audio output. 12)IC605 Audio output RL-17S10 SERVICE MANUAL PAGE:21...
- Page 22 NOTE!!: Video = Gray scale pattern input / Audio = 1Khz input at volume step 40. 13) IC501 Pin#28 clock output.(13.6Mhz,1.25Vp-p) 14) IC501 Pin#54 clock output.(15.7Khz,3.5Vp-p) 15) IC501 Pin#56 clock output.(15.7Khz,3.5Vp-p) 16) IC501 Pin#57 clock output.(50Hz,3.5Vp-p) 17)IC804 Output (ST-BY DC 5V) 18) IC803 Output (DC 12V) RL-17S10 SERVICE MANUAL PAGE:22...
- Page 23 NOTE!!: Video = Gray scale pattern input / Audio = 1Khz input at volume step 40. 19) IC801 Output (DC 5V) 20)IC801 OSC (about 52Khz, 12Vp-p) 21)IC802 OSC (Tuner 33V input) 22)Panel Dot clock input (80.53Mhz,0.7Vp-p) 23) Panel DE clock input 24) Panel VSync input (60Hz,3.5Vp-p) RL-17S10 SERVICE MANUAL PAGE:23...
- Page 24 WAVE FORM NOTE!!: Video = Gray scale pattern input / Audio = 1Khz input at volume step 40. 25) Panel HSync input (31.6Khz,3.5Vp-p) 26)P805 Pin#5 Inverter on/off (High=on) RL-17S10 SERVICE MANUAL PAGE:24...
-
Page 25: Troubleshooting
Check IC01 Sound OK Pin70(LLC) Pin99(FPHS) Pin100(FPVS) Check IC501 Pin101(FPDE) Pin 28/54/56/57 O.K? O.K? Check IC501 Check signals Video Inputs From IC01~ Pin71 ~ 75 IC05 ~ P 03 Check Vcc, X-tal And IIC of IC01 RL-17S10 SERVICE MANUAL PAGE:25... -
Page 26: Trouble Shooting
Check Headphone Jack of J402 Check CVBS Check IC101 No Text Signal from Pin70 Pin12 (CVBS) of IC501 to Pin12 of IC101 Check Pin38~ 4 1 of IC101 (R.G.B.FB) Replace IC101 Check Pin 1/2/3/79 of IC501 RL-17S10 SERVICE MANUAL PAGE:26... -
Page 27: Replacement Parts List
LABEL, WARNING ROLSEN/ELSON, RUS 501-0030 LABEL, SERIAL ¿ ø À Ú À ç , SILVER /BLACK 501-016F STICKER,LOGO ROLSEN, 15/17 " SI Z E 40MM 501-062J LABEL, ID RL-17S10(LT-17FTP), RUS, ROLSEN 502-0010 LABEL, BOX ID CARTON BOX, ALL MODEL 507-001A... -
Page 28: Replacement Part List
1.2K OHM, 1608 J R807 0RHSS112DJTS RESISTOR, CHIP 1.1K OHM, 1608 J R552 0RHSS105DJTS RESISTOR, CHIP 1M OHM, 1608 J R08,R602 0RHSS104DJTS RESISTOR, CHIP 100K OHM, 1608 J R149,R806 R210,R247,R249,R603, 0RHSS103DJTS RESISTOR, CHIP 10K OHM, 1608 J R631,R802,R805 RL-17S10 SERVICE MANUAL PAGE:28... - Page 29 CAPACITOR, CHIP 0.47UF,1608 C800 0CHSS472DKTS CAPACITOR, CHIP 4700PF,1608 C638 C407,C408,C411,C425, 0CHSS471DJTS CAPACITOR, CHIP 470PF,1608 C426,C441,C442 0CHSS470DJTS CAPACITOR, CHIP 47PF,1608 C124,C125 C219,C228,C232,C237, 0CHSS393DKTS CAPACITOR, CHIP 0.039UF,1608 C519,C537,C548,C557 0CHSS392DKTS CAPACITOR, CHIP 3900PF,1608 C222 0CHSS391DJTS CAPACITOR, CHIP 390PF,1608 C521,C540,C550 RL-17S10 SERVICE MANUAL PAGE:29...
- Page 30 1IC A D 9883A B S IC , A /D C O N VER TER A D 9883A -110M H Z IC 201 1IC 88L284A B S IC , S C A LER M X88L284- A E C IC 01 RL-17S10 SERVICE MANUAL PAGE:30...
- Page 31 CRYSTAL, RADIAL 14.318MHZ X01-1 0SOCK52D178D SOCKET 52-Pin, HD1 F-52T-06Ç ü #IC101 0LRSM10100BD INDUCTOR 100UH, SMC H100 L801 0LRSM00100BD INDUCTOR, CHOKE 10mH, SMC103 L802 0JAPK014A00D JACK, AV AV + S-VIDEO + HP J402 0JAKKST215BD JACK, SOUND ST-215 J403 RL-17S10 SERVICE MANUAL PAGE:31...
- Page 32 100UF 16V C546,C601,C602,C619, C641,C643,C646 C142,C238,C526,C556, 0CESS100CMTR CAPACITOR, ELEC. 10UF 16V C621,C622,C639 C648,C652,C653,C805, 0CESS471CMTR CAPACITOR, ELEC. 470UF 16V C806 0CESS334HMTR CAPACITOR, ELEC. 0.33UF 50V C123 0CESS221AMTR CAPACITOR, ELEC. 220UF 10V C146,C35 0CESS100HMTR CAPACITOR, ELEC. 10UF 50V C126 RL-17S10 SERVICE MANUAL PAGE:32...
- Page 33 WAFYH05200AD000 WAFER, PIN 5-PIN, P2.0mm ANGLE P11A,P11B 0PAVI48380AD000 PRE-AMP PRE-AMP, 38KHZ PA3001 0DLSYRG138AD000 DIODE, LED RED, SL RG138 BIG SIZE LD3001 GRLT32AA002A000 GR, 30" Control A/I CTRL,AUTO INSERT SW3001,SW3002, SW3003,SW3004, 600-002A000 SWITCH, TACT YTP-1141A SW3005,SW3006, SW3007 RL-17S10 SERVICE MANUAL PAGE:33...
-
Page 34: Pcb Layout
PCB LAYOUT 1. Control PCB RL-17S10 SERVICE MANUAL PAGE:34...
