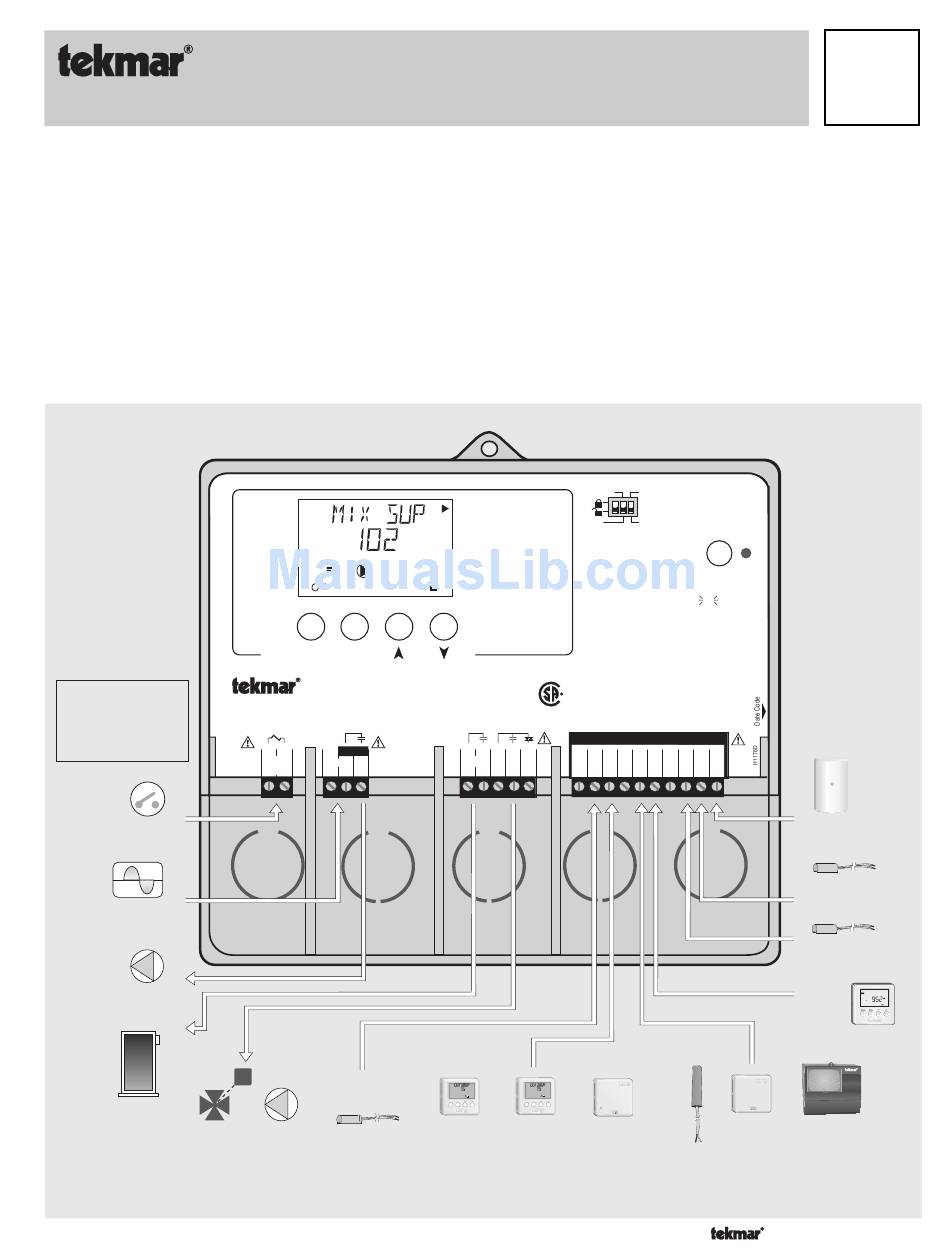

- Data Brochure
Mixing Control 362
The Mixing Control 362 is a microprocessor based control with two distinct operating modes.
MODE —1— allows the control to provide a reset mixed supply water temperature to a heating system based on outdoor air temperature.
Multiple zone temperature controls can be achieved by using either a conventional thermostat system or by using tekmar Zone Controls
attached to the 362. For single zone heating applications, a single Room Temperature Unit (RTU) can be connected directly to the 362
for zone temperature control.
MODE —2— allows the control to provide a single zone of snow melting. With the addition of a Snow Melting Kit 092, the 362 can
provide slab temperature control and slab ΔT protection. The melting mode is initiated manually either with a demand signal or from the
Snow Melting Kit enabling device.
The 362 incorporates a large Liquid Crystal Display (LCD) in order to provide system status and operating information. The same LCD
is used when setting up and installing the control. Standard features for both modes of operation include boiler return protection,
intelligent boiler operation, Warm Weather Shut Down (WWSD), and pump exercising. As well, with the addition of a new Monitor
feature, it is now possible to track pump and boiler running hours, boiler cycles and high and low sensor temperatures. The 362 also has
a unique feature that allows the control to supply heat to the mixed system from either the boiler or a thermal storage tank.
Note:
Mixing demand must be
powered with 20 to 260
V (ac) before the mixing
valve is able to open and
the boiler is able to fire.
Input
Mix Demand
Signal
Input
120 V (ac) Power
Supply
Output
Mixing System
Pump
Output
Mixing Valve & Actuating
Motor OR Var. Speed
Driven Pump
View
° F
UnOcc
Open
%
1
Menu
Item
Mixing Control 362
Floating Action / Variable Speed
1
2
3
4
5
Mix
Power
Mix
Demand
N
L
Pmp
M
OR
Output
Input
Universal
Setback
Mix Demand
WWSD
None
Minimum
Maximum
Melting
Idling
Operating Modes
1 Heating
2 Snow melting
See product literature
INSTALLATION CATEGORY II
Made in Canada by
tekmar Control Systems Ltd.
tektra 929-04
Power
Relays
R
Var. Pump
Demands
C
US
Signal wiring must be rated at least 300 V.
Wiring must be rated 194°F (90°C) minimum
6
7
8
9
10
11 12
13
Boiler
Pwr
Opn Cls
Com Mix
tN1/
Mix
Var
Ret
tN2
View
View
° F
° F
WWSD
%
%
WWSD
%
%
OR
OR
1
2
1
2
!
!
Menu
Item
Menu
Item
Input
Input
Input
Room
Remote
Snowmelt
Temperature
Display
Unit (RTU)
Module (RDM)
(SMK)
1 of 36
Reset Ratio
Characterized
Heating Curve
T est
off
not testing
off
not testing
red
red
testing
testing
red
testing paused
For maximum heat,
press and hold Test
button for 3 seconds.
Meets Class B:
Canadian ICES
FCC Part 15
115 V ±10% 60 Hz 900 VA
230 V (ac) 7.5 A 1/3 hp, pilot duty 240 VA
230 V (ac) 2.4 A 1/6 hp, fuse T2.5 A 250V
20 to 260 V (ac) 2 VA
Do not apply power
14
15
16
17
18
19
20
Com
10K
UnO
Com
Mix
Boil
Out
Sw
OR
OR
70
7
8
9
Input
Kit
tekmar Slab Sensor or Indoor Sensor or
Zone Control
Copyright © D 362 -12/08
D 362
12/08
Input
Outdoor
Input
Universal
Input
Universal
Sensor Included
Input
tekmar
Timer
LR 58233 E150539

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 362 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tekmar 362

  • Page 1 MODE —2— allows the control to provide a single zone of snow melting. With the addition of a Snow Melting Kit 092, the 362 can provide slab temperature control and slab ΔT protection. The melting mode is initiated manually either with a demand signal or from the Snow Melting Kit enabling device.
  • Page 2: Table Of Contents

    User Interface The 362 uses a Liquid Crystal Display (LCD) as the method of supplying information. You use the LCD in order to setup and monitor the operation of your system. The 362 has four push buttons (Menu, Item, , ) for selecting and adjusting settings.
  • Page 3: Description Of Display Elements

    Displays when the control is in override mode. min, hr Units of measurement. Open / Close Pointer Open Displays when floating actuator is opening or Displays the control operation as indicated by Close closing. the text. 3 of 36 Copyright © D 362 -12/08...
  • Page 4: Sequence Of Operation

    POWERING UP THE CONTROL When the Mixing Control 362 is powered up, the control displays the control type number in the LCD for 2 seconds. Next, the software version is displayed for 2 seconds. Finally, the control enters into the normal operating mode and the LCD defaults to displaying the current outdoor air temperature.
  • Page 5: Section B: Mixing Reset

    EXERCISING (EXERCISE) The 362 has a built-in pump and valve exercising function. The exercising period is adjustable and comes factory set at 70 hours. If a pump or valve output on the control has not been operated at least once during every exercising period, the control turns on the output for 10 seconds.
  • Page 6 If either an Indoor Sensor or a Room Temperature Unit (RTU) is used and the 362 is operating at the MIX MIN temperature, the Mixing Pump is cycled using Pulse Width Modulation (PWM) with a 15 minute cycle length. By cycling the Mixing Pump and controlling the flow of supply water, the control provides an average supply water temperature to the mixing system.
  • Page 7 MIXING PUMP OPERATION (Mix Pmp) The Mixing Pump contact ( Mix Pmp , terminal 5) closes whenever there is a Mixing Demand and the 362 is not in WWSD. During WWSD, the mixing pump is operated based on the EXERCISE setting in the Adjust Menu.
  • Page 8 If a permanent override is selected, the 362 operates in the selected override mode until a new override is selected. Away (AWAY) If the AWAY override is selected, the 362 operates with a fixed WWSD of 62˚F (17˚C) and a fixed room temperature of 62˚F (17˚C). BOOSTING (BOOST) When the control changes from the UnOccupied to the Occupied mode, it enters into a Boosting mode.
  • Page 9: Section C: Snow Melting

    Section B2: Alternate Mixing Demands (Mode —1—) In addition to using conventional thermostats to provide a mixing demand as described in Section B1, the 362 can use a number of other methods to provide a mixing demand. 10K INDOOR SENSOR (10K = INDR)
  • Page 10 At low temperatures, the glycol solutions used in snow melting systems become very viscous and difficult to pump. In order to overcome ∆ this condition during a cold start of a snow melting system, the 362 is allowed to exceed the T MAX setting for a period of time in order to warm the glycol solution.
  • Page 11 Section C2: Snow Melting Enable (Mode —2—) There are three methods in which the snow melting system can be enabled on the Mixing Control 362. Either an External Demand , a Remote Start / Stop Module 039 or a Remote Display Module 040 can be used to start the snow melting system.
  • Page 12 In cases where a slab sensor has not been or cannot be installed in the snow melting slab, it is possible for the Mixing Control 362 to operate the snow melting system. This mode of operation is not recommended since the control can no longer regulate the slab temperature.
  • Page 13: Section D: Boiler Operation

    MELTING MODE (MELTING) The Mixing Control 362 is a manual snow melting control. In order for the snow melting system to be started, one of the three methods described in Section C2 must be used. When the control is in the melting mode, the Melting pointer is displayed in the View Menu and either EXT, INF or a running time can be read when viewing the SNOWMELTitem in the View menu.
  • Page 14 FIRE DELAY (FIRE DLY) The FIRE DLY is the delay time that may happen between the time that the 362 closes the boiler contact and the burner fires. This delay is usually the result of a burner pre-purge or other forms of time delay built into the burner’s safety circuits.
  • Page 15: Installation

    STEP ONE GETTING READY Check the contents of this package. If any of the contents listed are missing or damaged, please contact your wholesaler or tekmar sales representative for assistance. Type 362 includes : One Mixing Control 362, One Outdoor Sensor 070, Two Universal Sensors 071, Data Brochures D 362, D 070, D 001, User Brochure U 362, Application Brochures A 362, Essays E 003, E 021.
  • Page 16: Electrical Connections

    • If a Remote Start / Stop Module 039 is used, install the module according to the installation instructions in the Data Brochure D 039 and run the wiring back to the control. • If a tekmar Zone Control is used, run the wires from the Zone Control to the 362. Refer to the instructions supplied with the Zone Control.
  • Page 17 Boiler Sensor Connect the two wires from the Boiler Sensor 071 to the Com and Boil terminals (17 and 19). The Boiler Sensor is used by the 362 to measure the supply (outlet) water temperature from the boiler. Mixing Sensor...
  • Page 18: Testing The Wiring

    UnOccupied Switch If an external timer (tekmar Timer 032) or switch is used, connect the two wires from the external switch to the Com and UnO Sw terminals (14 and 16). When these two terminals are shorted together, the control registers an UnOccupied signal.
  • Page 19 120 V (ac) or 24 V (ac) wiring chambers. Apply power to the control. The operation of the control on power up is described in the Sequence of Operation section of this brochure. 19 of 36 Copyright © D 362 -12/08...
  • Page 20: Dip Switch Settings

    When the padlock is closed, the access level cannot be changed. To change the access level, set the DIP switch to the Unlocked , or down position. The current access level of the control or tekmar Net (tN1 / tN2) device is viewed in its Miscellaneous (Misc) menu.
  • Page 21: Control Settings

    • • • (-50 to 75˚C) 10K = INDR MODE = —1— This is the signal that is being received from a tekmar Zone • - - -, 35 to 110˚F Control. (2 to 43˚C) 10K = ZoIn MODE = —1—...
  • Page 22: Adjust Menu

    362 Adjust Menu (1 of 4) Access Level Actual Item Field Description Range Setting —1— (Heating) • • —2— (Snow Melting) The operating Mode for the control. MODE 1 is for Heating. MODE 2 is for Snow Melting. Default = —1—...
  • Page 23 362 Adjust Menu (2 of 4) Access Level Actual Item Field Description Range Setting The maximum length of morning boost. 0:20 to 8:00 hrs DIP switch = Characterized Heating Curve • • DIP switch = Setback Default = OFF No RTU Connected 10K ≠...
  • Page 24 362 Adjust Menu (3 of 4) Access Level Actual Item Field Description Range Setting The time that the actuating motor requires to • • 30 to 230 sec operate from fully closed to fully open. MIXING = FLOT Default = 160 sec...
  • Page 25: Schedule Menu

    • The frequency with which the control exercises the pumps and valves that are operated by the control. Default = 70 hr 362 Monitor Menu (see pages 30 - 32) 362 Schd (Schedule) Menu (1 of 1) Access Level Item Field...
  • Page 26: Rtu Menu

    DIP switch = Unlock Default = INST Room Temperature Units (RTUs) 062 and 063 A single RTU may be connected to the Mixing Control 362 in order to provide the control with indoor View ° F temperature feedback for the mixing side of the heating system (Refer to Essay E 002). When using...
  • Page 27 362 RTU Adjust Menu (1 of 1) Access Level Actual Item Field Description Range Setting 35 to 100˚F The desired room air temperature during • • • • • • (2 to 38˚C) an Occupied period for the mixing zones.
  • Page 28: Testing And Troubleshooting

    DIP switch = Unlock Default = INST Testing the Control The Mixing Control 362 has a built in test routine which is used to test the main control functions. The 362 continually monitors the sensors and displays an error message whenever T est a fault is found.
  • Page 29: Troubleshooting

    MAX HEAT (MAX HEAT) The Mixing Control 362 has a function called Max Heat. In this mode, the 362 turns on and operates the system up to the maximum set temperatures, and the mixing device at the set percentage, as long as there is a demand for heat. The control continues to operate in this mode for up to 24 hours or until either the Item, Menu or Test button is pressed.
  • Page 30: Monitor Menu

    Monitor items. Use this information to help diagnose any remaining problems. 362 Monitor Menu (1 of 3) Note : To clear the recorded Information in the specific item field, press and hold Access...
  • Page 31 362 Monitor Menu (2 of 3) Note : To clear the recorded Information in the specific item field, press and hold Access Level Item Field Description Range • • The highest recorded temperature at the mixing sensor since -31 to 266˚F (-35 to 129˚C)
  • Page 32: Error Messages

    RTU, RDM or Remote Start / Stop Module since this item was last cleared. • If the wires between the control and the tekmar Net (tN1/tN2) 0 - 255 device are run in a noisy electrical environment, this can cause interference in the communication between the control and the tN1/tN2 device.
  • Page 33 Miscellaneous menu of the RTU have been checked by the user or installer. Note: Access level must be ADV in order to clear the error. An incorrect device has been connected to the tekmar Net tN1/tN2 input terminal. An RTU has been connected to the control and either the Heating Curve/Reset Ratio DIP switch has been set to Reset Ratio or the control is in MODE —2—.
  • Page 34 362 Error Messages (3 of 4) Error Displayed Description of Error The control is no longer able to read the Mixing Supply sensor due to an open circuit. In this case, if the Boil SENS item is set to SUP, the control will operate the mixing device at a fixed 15% of output as long as there is a Mixing Demand.
  • Page 35 362 Error Messages (4 of 4) Error Displayed Description of Error The Remote Sensor 1 attached to the RTU is being read as an open circuit. The RTU will continue operation using all remaining sensors. If all of the sensors are unavailable, the control will continue to operate as if the RTU was not connected to the control.
  • Page 36: Technical Data

    Technical Data Mixing Control 362 Floating Action / Variable Speed Literature — D 362, A 362’s, D 001, D 070, E 003, E 021, U 362. Control — Microprocessor PID control; This is not a safety (limit) control. Packaged weight —...
