contact a qualified electrician and have it replaced with a properly
grounded three-pronged wall receptacle or have a grounding adapter
properly grounded and polarized. If the extension cord must be used, it
should be a 3-wire, 15 amp. or higher rated cord. Do not drape over a
countertop or table where it can be pulled on by children or tripped over
accidentally.
CAUTION: DO NOT UNDER ANY CIRCUMSTANCES CUT OR RE-
MOVE THE ROUND GROUNDING PRONG FROM THIS
PLUG.
1. Door open handle.
Pull to open door.
2. Door latches.
The oven will not operate unless the
door is securely closed.
3. Removable turntable support.
4. Removable turntable.
The turntable will rotate clockwise or
counterclockwise.
5. Oven lamp.
It will light when oven is operating or
door is opened.
6. Oven door with see-through window.
7. Ventilation openings. (Rear)
NOTE:
The directed features are disabled after three minutes
when the oven is not in use. These features are auto-
matically enabled when the door is opened and closed
or the STOP/ CLEAR pad is pressed.

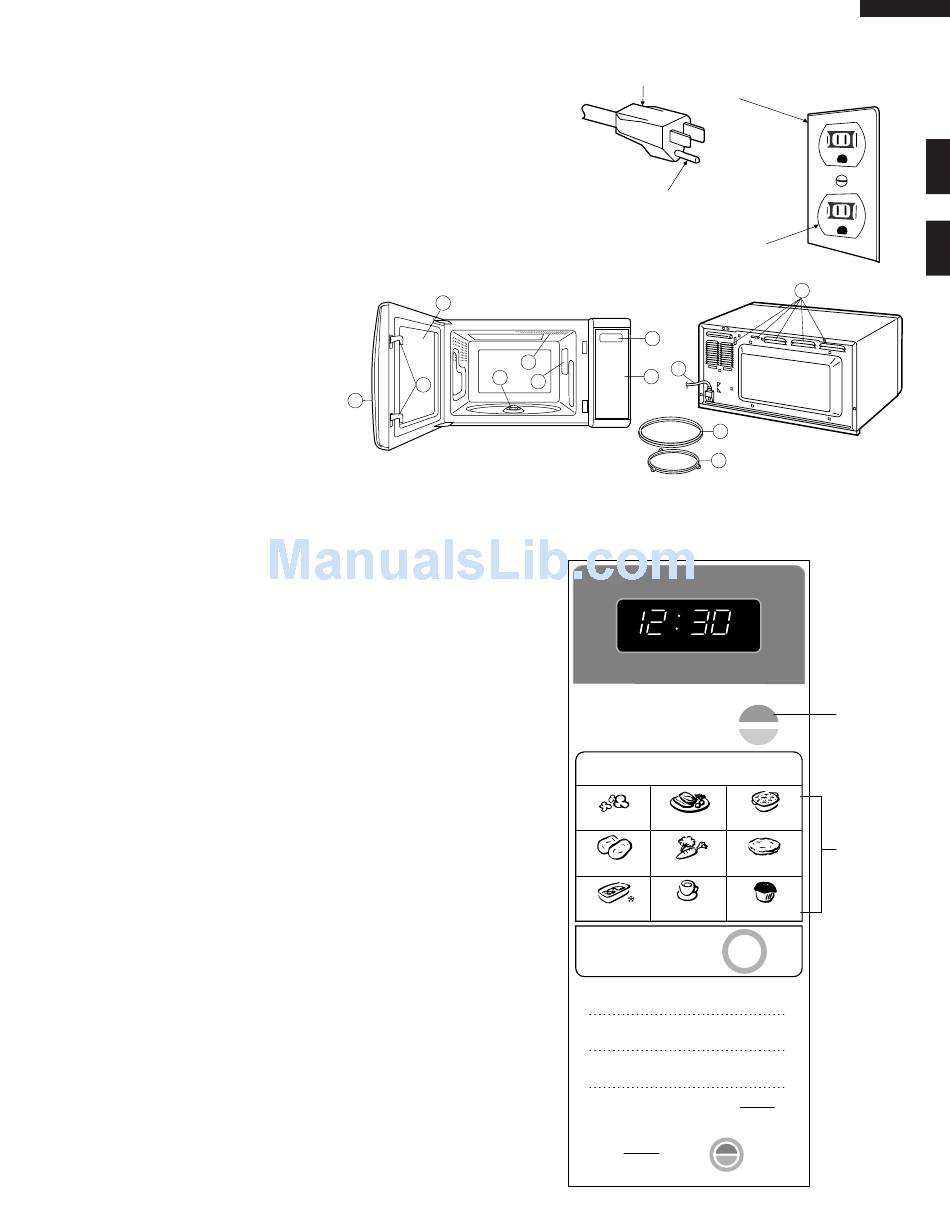

OVEN DIAGRAM

6
5
10
11
2
1
8. Auto-Touch control panel.
9. Time display: Digital display, 99 minutes 99 seconds.
10. Coupling.
5
Grounded
3-Pronged Plug
Receptacle Box
Grounding Pin
3-Pronged Receptacle
9
12
8
4
3
11. Wave guide cover.
12. Power supply cord
TOUCH CONTROL PANEL
NO.
LBS.
CUPS.
OZ.
COOK DEFROST
MINUTE PLUS
INSTANT ACTION
TO ADJUST QUANTITY TOUCH PAD AGAIN
POPCORN DINNER PLATE CASSEROLE
BAKED POTATOES FRESH VEGETABLES GROUND MEAT
FROZEN ENTREES BEVERAGE ROLLS / MUFFINS
1 Ground Meat
COMPU
2 Steaks/Chops
DEFROST
3 Chicken Pieces
1 2 3
4 5 6
7 8 9
POWER TIMER
0
LEVEL
CLOCK
STOP
START
CLEAR
R-305EW
7
See note.
See note.
