(VP8860)
V1.0
2008 Vosonic Technology Corporation. All ight reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VP8860 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vosonic VP8860

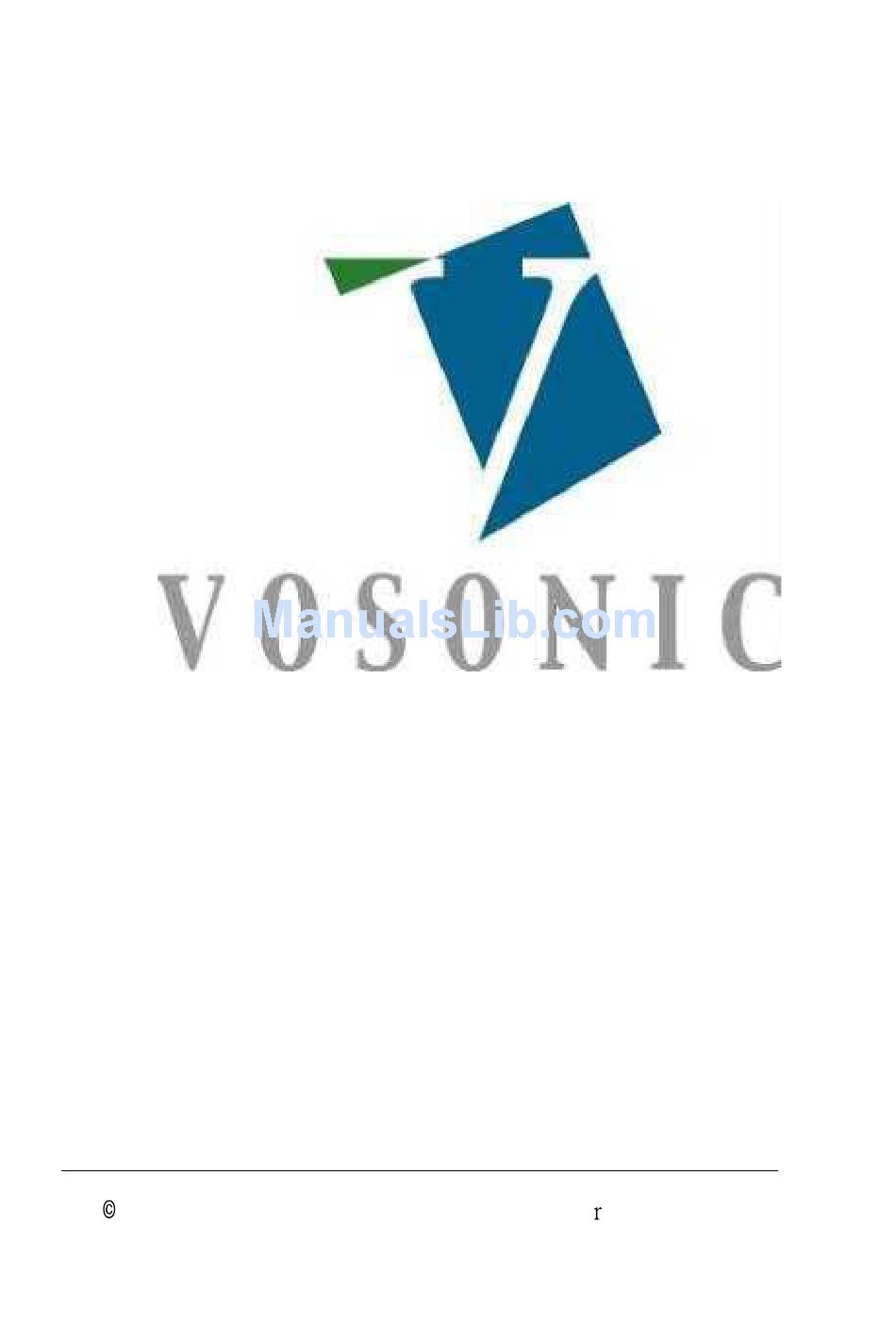

  • Page 1 (VP8860) V1.0 2008 Vosonic Technology Corporation. All ight reserved.
  • Page 2 Dear Customer, Thank you for purchasing Vosonic VP8860. Before using Vosonic VP8860, you will have to 1 Charge the battery : Battery Level Low Battery : (Red) Charging : Full Battery : (Green) 2. Keep VP8860 plugged into the AC adapter/charge while connected to your computer.

  • Page 3: Fcc Certifications

    FCC Certifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: Important Warranty Information

    To reduce the risk of fire or shock hazard, do not expose this equipment to rain ,any liquid or moisture. Vosonic shall have no obligation to repair ,replace or refund until the customer returns the defective product to Vosonic. The repairs and replacement service will not apply to PRODUCT units that were misused, repaired without authorization or by other reasons beyond the range of intended use.

  • Page 5: Specifications

    1. The VP8860 may not read the videos created with codes other than above. If you have these other file types that you would like to view on your VP8860, you must use the video - editing software to re-encode them into the proper video codec with supported sound stream.
  • Page 6 BMP: Monochrome, 8 bits indexed-color, RGB, RLE8 Photo viewer RAW: Check the supported models at www.vosonic.com Note: When use the zoom tool, if the enlargement is too big, it is possible that the pictures will look blurry. Compact Flash (CF)
  • Page 7 MS Duo (with adapter), MS Pro Duo (with adapter). 2.5" 9.5mm Hard Disk SATA Interface) Note: Hard Disk Size VP8860 uses the FAT file system; the maximum size of a single file is usually limited to 2G. Hard Disk 40G ~ 320G Capacity Display 4.3”...
  • Page 8 The VP8860 may not read the videos created with codes other than above.If you have these other file types that you would like to view on your VP8860, you must use the video - editing software to re-encode them into the proper video codec with...
  • Page 9 1. Overview of Panels & Keys : Memory Stick / Memory Stick Pro , MMC/SD card slot Composite video output Compact Flash Earphone Jack MENU Power Joystick Power Button Lock Scroll upward/increase volume Microphone Battery Compartment DC In : Insert AC adapter jack USB port: Insert USB cord mini jack...
  • Page 10 keypad Function Description Enter : takes you to execute the current selection Rotate: This function will effect under Photo Playback Mode. Pause: This function will effect under Music & Video Playback Mode. Joystick Direction icon: Use JoyStick button to move cursor on the screen.
  • Page 11 2. Using the VP8860 2-1. Starting up ___________________________________________________________ 1) Charge the batteries Before using for the first time, charge the batteries for a full 4 hours. 2) Power On /Off Press the Power button The green light will go on and the operating system will boot up.
  • Page 12 2. Remove memory card(s) from the card slot, otherwise, there may be a chance of lost or corrupt data. Note: For Windows XP users, to safely disconnect the VP8860 from computer, click on the system tray remove icon and wait until you get a...
  • Page 13 3 icons identifying the media types correspondingly. You can then read ,write,copy ,delete and remove data on the PC. Note: - The VP8860 uses the FAT file system, the maximum size of a single file is usually limited to 2G 3. Settings for your VP8860 In the Home screen, move the cursor to the Options icon to highlight it and press joystick to enter Options to start setting.
  • Page 14 Time Zone /Display : These show current local time in cities and countries. To set up your Screen Display, click [OPTIONS ]and high-light the [ DISPLAY] Language : This version can be set to English, Japanese, Korean, Spanish, German, French, Italian, Chinese, Russian. Screen Brightness : Use Joystick button, you can change the LCD backlight Push left to decrease setting value, push right to increase...
  • Page 15 If you have some video files that do not play directly on your VP8860, they will have to be converted first. To convert a video file in the right size and format to be read by the VP8860 Please read the VP8860 specifications first or mail to service@vosonic.com.tw...
  • Page 16 4. Using a memory card to transfer photos to VP8860 Note: Please insert the memory card with the front of the card facing the LCD. Front of Card When a memory card is inserted, system will auto display a menu for asking "No Action", "Full Backup"...
  • Page 17 When the same card was inserted and copied twice, two different folders were created, VP8860 won't overwrite the folder. All files transfered from each memory card are stored onto the Backup folder in numerically, under the name "CF0000" , " CF0001" , "CF0002 , "CF0003”...
  • Page 18 4) Navigating the Directory Structure Just below the top status bar, you can see the path to the directory you are currently viewing.
  • Page 19 5. FOTO PLAY MODE 1. From the Home page, highlight the Browser icon 2. Scroll to the HD icon and depress the joystick button 3. Find the pictures you want to view. 4. Press MENU button to find the view modes There are 2 types of views for you to browse through your folders or files : The Icon View and List View 5.
  • Page 20 Icon View : The screen will display thumbnail of all the JPEG pictures in group of 20 Multi Select The multi select function allows you to choose a range of photos Press MENU button and select [MultiSelect] mode ( The cursor will become blue) Use the direction buttons to click the files you want to move.
  • Page 21 Delete Use the Joystick button to find the file you want to delete. Press [MENU] to select [ Delete ]mode, then press Joystick button It will ask “Delete File ? “ , Use the Joystick button to reply Yes or No..
  • Page 22 Slide Show : Enlarge the specific JPG file you want to view and press [Menu] button to select Slide Show mode. Slide Interval Setting: Hold and push the Joystick button to the left to decrease the interval time Hold and push the Joystick button to the right to increase the interval time ZOOM IN / OUT DISPLAY You can use [ + ] or [ - ] buttons to zoom in /out the picture .

  • Page 23: Video Play Mode

    To pause or start/resume playback, press Joystick button. Playlist : Playlist is a list of songs that the VP8860 will automatically play one after the other. To create Playlist, you can simply copy, delete, paste the files to the folder you want.
  • Page 24 4. Press MENU button to select the setting. Playlist Playlist is a list of songs that the VP8860 will automatically play one after the other. To create Playlists, you can simply copy, delete , paste the files to the folder you want.
  • Page 25 There are 9 EQ modes ( Normal, Bass, Classic, Dance, Live, Rock , Treble ,User ) for your selection. KeyLock To lock all the VP8860 buttons from being accidentally pressed, scroll to “ KeyLock “mode and press Joystick button. Press “ MENU “and “ESC “ buttons to effect the buttons again.

  • Page 26: Video Recording

    1. Power on VP8860. 2. Connect the AC adapter to the VP8860. 3. Connect the provided A/V cable to the A/V input of VP8860 A/V cable with 3RCA plug 4. From the Home page, highlight the VideoRec icon...

  • Page 27: Scheduled Recording

    - Make sure the cursor is on the VideoRec icon. This way the VP8860 will be in standby mode when the recording starts.. If your VP8860 is shut off and A/V cables , adapter not connected, the recording will not...
  • Page 28 Setup Parameters Note: - Due to the Windows® FAT32 AVI file type specification, maximum recording file is 2 GB. - All recording videos will be saved as VREC0001.MP4 ,VREC0002.MP4 ,VREC0003.MP4.

  • Page 29: Listen To Fm Radio

    9. Copying , Pasting and Deleting Files and Folders Under the screen Browser mode, you can copy, paste or delete files from one location in the file structure to another. Simply Press [ MENU ] to select the modes .As you finish the selection , just press Joystick button.

  • Page 30: Audio Recording

    - To stop auto tuning, press the [ ESC ] button . - Note that this function may sometimes fail do to bad reception of some channels. 11 . Audio Recording: - You can use the “Record” function anytime . However, you are not able to record voice streams and listen to music at the same time.
  • Page 31 (such as CD player) 1. Connect line –in cable to audio output from the source 2. Connect other end to AV input port on VP8860 . 3. Remember to keep the AC adaptor be plugged in. 4. Scroll to [AudioRec ] and press [Joystick ]button 5.

  • Page 32: Battery Recharge

    Scan Disk and Disk Defragmenter . 2) Hard Drive must be formatted to the FAT or FAT-32 format, NTFS format is not compatible with this function . 3) If the computer or VP8860 can not detect the Hard Drive, check the suggested solutions:...
  • Page 33 Check the Hard Drive is plugged securely or not It is not recommended to format the 32G above Hard Drive under Windows 2000 or Windows XP Note: Win 2K/ Win XP can not support to format the 30G above Hard Drive at FAT format. 4) Please carefully insert and remove the memory card from each slot .
  • Page 34 Hard Disk Assembly Chart 1. Using the supplied screwdriver to remove the 2 screws 3. Use your finger nail (so you don’t scratch the case)to open the side clip...
  • Page 35 4.Carefully slide the Hard Disk into the chassis. 1. Seat the cover in place by pressing the side clip onto the rail.

  • Page 36: Troubleshooting

    USB cable to avoid loss of data or freezing the computer and VP8860 If you can not find the VP8860 Hard Drive show up in Windows for over one minute, the Files Allocation Table (FAT) of Hard Drive may gets corrupted, you can use Format Function on the VP8860 but note it will erase ALL of the data on your VP8860.
  • Page 37 Corrupt data , General Error , Can’t open Source File Solutions Due to file allocation table (FAT) has been corrupted, the data in memory card transferred into VP8860 may be looks faulty, please backup the data and run ScanDisk , Disk Defragmenter or reformat the memory card.

  • Page 38: Frequently Asked Questions

    How can I get an extra You can get it from your original dealer or battery for my VP8860 check Vosonic on –line shopping : http://www.vosonic.twmail.net How do I browse my You can browse your files while listening to a files on the VP8860 music file only.
  • Page 39 • VISIT VOSONIC ON THE WEB Go to http://www.vosonic.com to download the latest firmware The latest version of this manual may be available on Vosonic's Web site • CONTACT VOSONIC To process a request for Technical Service, please mail the following information to service@vosonic.com.tw...
  • Page 40 THANK YOU FOR CHOOSING THIS PRODUCT We hope it will provide you with years of trouble-free enjoyment. Please look after your Vosonic. If you experience problems and cannot find solutions in the previous sections, please contact your dealer or check for updated firmware at www.vosonic.com...
