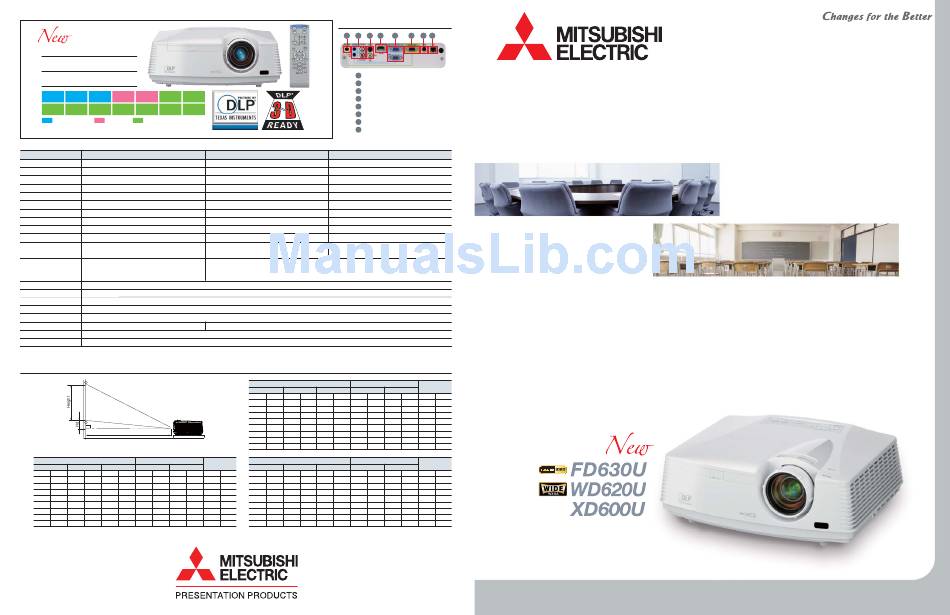

Mitsubishi Electric FD630U Specfications

Multimedia data/video projector.
Hide thumbs


Advertisement

MOBILE PROJECTOR
FD630U
1080P
WD620U
WXGA
XD600U
XGA
User
Brilliant
Color
Wall
10W
Password
Logo
Color
TM
Enhancer
Screen
Speaker
Lock
Shutdown
Projection
Low
Top/Side
Long-life
LAN
Closed
HDMI
Stand-by
Loading
Lamp
(RJ-45)
Caption
Fan Noise
Power
Lamp
Picture Performance
Presentation
User-friendly
Specifications
Model
FD630U
Display technology
0.65" 1-chip DMD, 12deg.LVDS, DDP3021
Resolution
1920 x 1080 (total 2,073,600 pixels)
Brightness
4000lm
Contrast ratio
2000 : 1 (on/off)
Color Wheel
5-segment (R/G/B/W/Y)
Picture size
40" - 300"
Throw ratio
1.5 - 2.2
Zoom & focus
Manual focus & zoom lens (zoom ratio 1.5:1)
Scanning rate
[H] 15 - 80 kHz, [V] 50 - 85 Hz
Estimate lamp life
5000hrs (low mode), 3000hr (standard mode)
Expanded: 640 x 480. Compressed: 1920 x 1200.
PC compatibility
Native: 1920 x 1080, sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p),
Video compatibility
1080i (1125i 50/60Hz), 1080p (1125p 50/60Hz)
Input terminals
RGB: mini D-sub 15pin x 2
Video: RCA x 1, S-VIDEO x 1
Output terminals
RGB: mini D-sub 15pin x 1
Audio: stereo mini jack (ø3.5mm) x 1
Communication terminal
RS-232C: mini DIN 8pin x 1
LAN: RJ-45 x 1
Audio speaker
10W mono
Dimensions (W x H x D)
345 x 129 x 270 mm / 13.6" x 5.1" x 10.6"
Weight
3.8kg / 8.4lbs
Power requirements
AC 100-240V, 50/60Hz
Optional lamp
VLT-XD600LP
• Compliance with ISO21118-2005
Screen Size and Projection Distance
Side view
FD630U
WD620U
XD600U
Projection distance ( L )
The above numbers are approximate, and may be slightly different from the actual measurements.
Screen size chart (FD630U)
Screen (16 : 9)
Distance from screen (L)
Diagonal size
Width (W)
Height (H)
Shortest (Wide)
Longest (Tele)
inch
cm
inch
cm
inch
cm
inch
m
inch
40
102
35
89
20
50
47
1.2
71
60
152
52
133
29
75
71
1.8
107
80
203
70
177
39
100
96
2.4
144
100
254
87
221
49
125
120
3.1
180
150
381
131
332
74
187
182
4.6
271
200
508
174
443
98
249
243
6.2
362
250
635
218
553
123
311
304
7.7
453
300
762
261
664
147
374
365
9.3
MITSUBISHI DIGITAL ELECTRONICS
AMERICA, INC.
Presentation Products Division
Phone: 888.307.0349
www.mitsubishi-presentations.com
LIT600SERIES
Input and Output Terminals
1
2
1
Audio output
2
Audio input
S-Video/Video
3
Instant
4
HDMI
5
PC/Component video input
Low
6
Monitor output
Serial RS-232C
7
8
LAN (RJ-45)
(XD600U only)
WD620U
XD600U
0.65" 1-chip DMD, 12deg.LVDS, DDP2230
0.7" 1-chip DMD, 12deg.LVDS, DDP2230
1280 x 800 (total 1,024,000 pixels)
1024 x 768 (total 786,432 pixels)
4000lm
4500lm
2000 : 1 (on/off)
2000 : 1 (on/off)
5-segment (R/G/B/W/Y)
5-segment (R/G/B/W/Y)
40" - 300"
40" - 300"
1.5 - 2.2
1.4 - 2.1
Manual focus & zoom lens (zoom ratio 1.5:1)
Manual focus & zoom lens (zoom ratio 1.5:1)
[H] 15 - 80 kHz, [V] 50 - 85 Hz
[H] 15 - 80 kHz, [V] 50 - 85 Hz
5000hrs (low mode), 3000hr (standard mode)
5000hrs (low mode), 3000hr (standard mode)
Expanded: 640 x 480. Compressed: 1280 x 1024.
Expanded: 640 x 480. Compressed:1280 x 1024.
Native: 1280 x 800, sync on green available
Native: 1024 x 768, sync on green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 50/60Hz)
Digital: HDMI x 1
Audio: stereo mini jack (ø3.5mm) x 2, RCA jack (L/R) x 1
3.6kg / 7.9lbs
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders
Screen size chart ( WD620U )
Screen (16 : 10)
Distance from screen (L)
Diagonal size
Width (W)
Height (H)
Shortest (Wide)
inch
cm
inch
cm
inch
cm
inch
40
102
34
86
21
54
48
60
152
51
129
32
61
73
80
203
68
172
42
108
98
100
254
85
215
53
135
123
150
381
127
323
79
202
186
200
508
170
431
106
269
248
250
635
212
538
132
337
311
300
762
254
646
159
404
373
Screen size chart (XD600U)
Screen (4 : 3)
Distance from screen (L)
Height projected
image (Hd)
Diagonal size
Width (W)
Height (H)
Shortest (Wide)
m
inch
cm
inch
cm
inch
cm
inch
cm
inch
1.8
6.6
17
40
102
32
81
24
61
45
2.7
9.9
25
60
152
48
122
36
91
68
3.6
13.2
34
80
203
64
163
48
122
91
4.6
16.5
42
100
254
80
203
60
152
115
6.9
24.7
63
150
381
120
305
90
229
173
9.2
33.0
84
200
508
160
406
120
305
231
11.5
41.2
105
250
635
200
508
150
381
289
49.5
126
300
762
240
610
180
457
348
MITSUBISHI ELECTRIC SALES
CANADA, INC.
Display & Imaging Solutions Division
Phone: 905.475.7728
www.mitsubishielectric.ca
3
4
5
6
7
8
MULTIMEDIA DATA/VIDEO PROJECTORS
Height projected
Longest (Tele)
image (Hd)
m
inch
m
inch
cm
1.2
72
1.8
6.2
16
1.9
110
2.8
9.2
23
2.5
147
3.7
12.3
31
3.1
184
4.7
15.4
39
4.7
277
7.0
23.1
59
6.3
370
9.4
30.8
78
7.9
463
11.8
38.5
98
9.5
46.2
117
Height projected
Longest (Tele)
image (Hd)
m
inch
m
inch
cm
1.1
67
1.7
3.6
9
1.7
102
2.6
5.4
14
2.3
137
3.5
7.2
18
2.9
171
4.3
9.0
23
4.4
258
6.5
13.5
34
5.9
344
8.7
18.0
46
7.3
431
10.9
22.5
57
8.8
27.0
69
New publication, effective January 2010.
