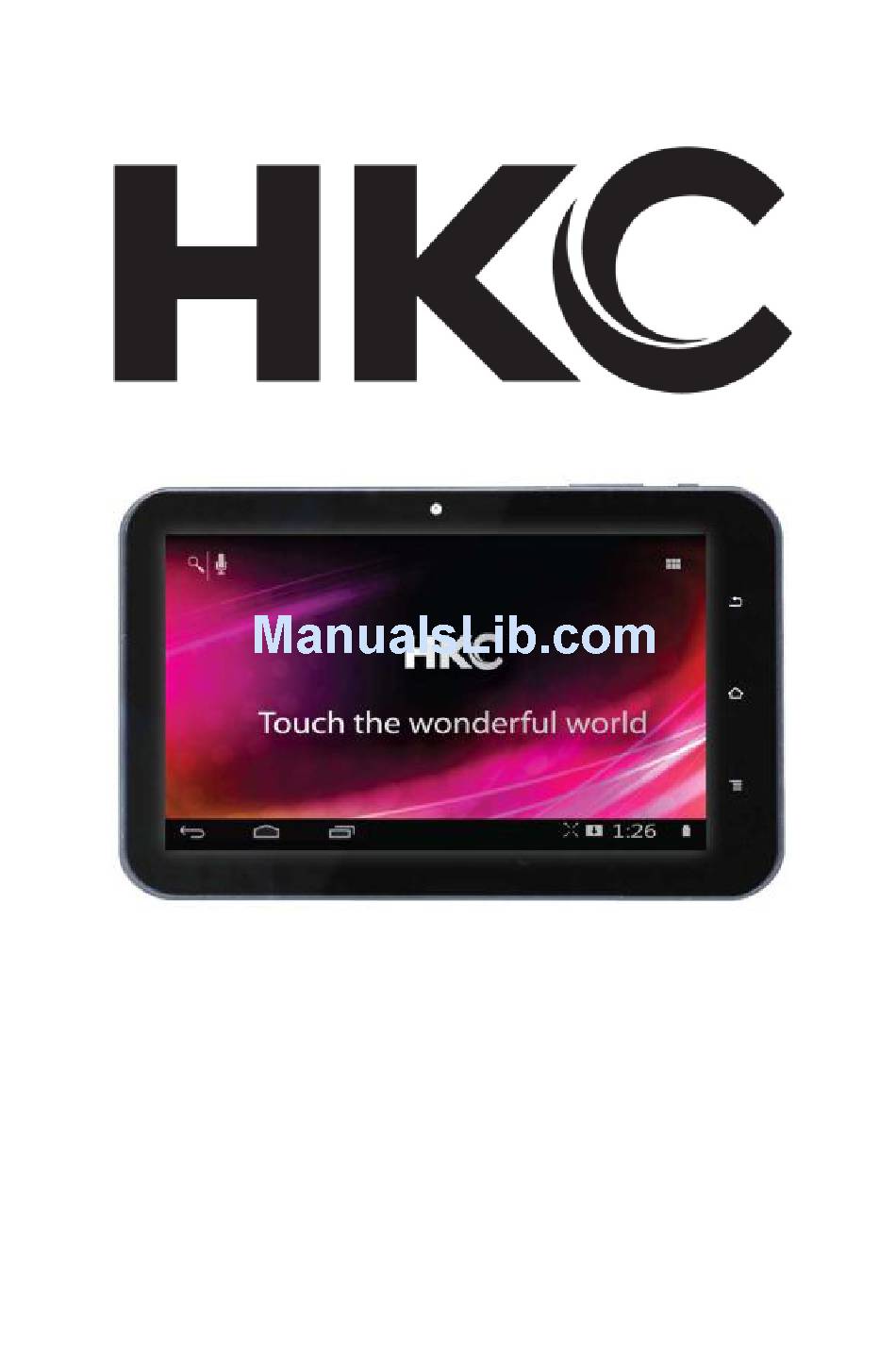

- Page 1 7” Capacitive Multi-Touch Tablet Instruction Manual...
- Page 2 Instruction Manual HKC brings you the latest in Android™ technology, giving you the performance you want at an affordable price. The crystal clear 7” capacitive touch screen is great for watching movies, reading books, surfing the web, video conferencing online and more. With...
- Page 3 • Up to 5 hours of battery life • Weights 0.5 lbs; 4.75" x 7.55" x 0.375" dimensions What's in the Box: • HKC tablet • instruction manual • in ear headphones • AC charger • micro USB cable...
- Page 4 Instruction Manual Switch on/Unlock: Switch On and unlock: when the device is in the OFF mode, press and hold “Power” key for 3 seconds to enter the Android startup progress bar, it need about 100seconds enter to the system desktop, the LCD is under locked mode, please press and pull the icon to no glee point, then the LCD will unlock automatically.
- Page 5 Instruction Manual 【Note】 When the device has low battery, it will alarm continuously and shut down automatically if the device is not being charged and the device cannot start up. Please check if the battery is low, and try it again after the battery is charged. Battery Management and Charging: Charge the battery for about 4-5 hours to make sure the battery is fully charged before the first time of use.
- Page 6 Instruction Manual Operation of the Function Icons: Function Icon Definitions: Function Function Icon Icon Instruction Instruction Note when the Back to Home system finds new menu devices Show current Menu for function power status block Wifi /Ethernet back Connection status Remain your last menu task...
-
Page 7: Wireless And Networks
Instruction Manual Symbol Name Description Volume Key Press Left to Vol - Volume Key Press Right to Vol+ POWER Key Press the button shortly to enter sleeping/wake up mode, press for a few seconds to switch ON/OFF Earphone Slot Stereo earpiece Jack USB Slot MINI 5Pin USB Port, connect to a pc TF card Slot... - Page 8 Instruction Manual Set the Wi-Fi and connect to a network: press the “Wi-Fi setting to enter into the Wi-Fi options, the system will find the Wifi names available automatically. Please refer to the picture below, WIF networks available for use will be shown on the right: You can see the network connection status when you press the network name.
- Page 9 Instruction Manual USB Function: Read USB-disk: Insert the USB-disk into the Mini USB port and press the “explorer” option in the desktop, maybe you will need an additional adapter cable to connect between the USB and the device, press “USB” and enter into USB-disk.
- Page 10 Instruction Manual Camera Function: You can use camera to take videos, pictures or for video conferencing functionalities. Select the Camera Icon to use the functionality: Desktop System: (Multimedia Music/ Video/ Pictures/Record /E-book） In the main menu or desktop, click the icon to play audio.
- Page 11 Instruction Manual If two or more songs are in the music play list area, slide up/down on the touch screen to go page up/down. Double-click favorites in the list to play music as shown in the following picture:...
- Page 12 Instruction Manual In the music playing interface, tap the “ “ button and then enter the audio playing list. Drag the playback progress bar to adjust audio playback progress. Note: audio player can play WAV recorded files/ Photos: In the main menu or desktop, tap the picture browsing icon:...
- Page 13 Instruction Manual Photo Browser Button Descriptions: Add Pictures (This device supports BMP, JPG, JPEG, PNG & GIF formats). Open the corresponding folder, find the image file and add the picture you want. Tap the photo setting button, and the photo can be set as your wallpaper: Explorer In the main menu or desktop, tap the explorer icon to enter the Management Interface, tap 【TF Card】then【Internal Memory】...
- Page 14 Instruction Manual Desktop System (Network Applications)
- Page 15 Instruction Manual IE Browser When the WiFi connection is in normal (for details refer to the Wi-Fi Settings section), tap the main menu or desktop’s IE browser icon to enter to the IE interface, click the address bar and input the website and click “Go”...
- Page 16 Instruction Manual Desktop System (Other Functions) Calculator: Click the icon on the desktop to open the calculator Voice and Display Settings: Tap【Sound】to enter the settings interface:...
- Page 17 Instruction Manual Media Volume Settings： Select 【media volume】to enter the settings interface, then to set up music and video volume… Set operating sound (screen choosing) and SD card notifications as optional, tap and click till the display is highlighted. Display Settings：...
- Page 18 Instruction Manual 【 Orientation 】 The display screen will change the direction automatically when rotating. 【Brightness】Drag to adjust the brightness, the tap “Ok” or “cancel” to save the changes. 【Screen Timeout】Select after how many seconds will you like for the screen to go into power saving mode.
- Page 19 Instruction Manual Location and Security Settings: Tap “Location and Security” to enter the setting interface: Apps Tap “Apps” to enter apps setting interface:...
- Page 20 Instruction Manual Running: Tap “Running” to see and control the running service: Language & input Tap “language & input” to enter the settings interface:...
- Page 21 Instruction Manual Language Setting： The device support multi-languages, you can select the operation interface of different languages according to your needs. Select the matching language option, tap to confirm. Time and Date Setting: Select the Setting Menu “Date and Time” into setting interface, select the behind the Automatic option, to modify the Date, Time Zone and Time.
- Page 22 Instruction Manual Time Zone Settings: Select the time zone you locate and tap the screen to confirm.
- Page 23 Instruction Manual Time Settings: to select hours, minutes, ex. 14:50, and tap the icon to confirm ok. PC Connectivity: Learn to connect your device to a PC with a USB cable in various USB connection modes. By connecting the device to a PC, you can transfer files or transfer data to and from your device directly.
- Page 24 Instruction Manual About the device: Check system information, legal information, device state software version, etc. Desktop Function Icon Settings: Add, Move or Delete Desktop Icon Tap the icon at the main interface, into function menu list, display the entire application icon by pages. Press and drag the application icon to copy to current desktop i.e.
- Page 25 How to update the software on your device: Please visit www.HKCdigital.com and follow the direction on the site. Please contact HKC customer service at 888-999-1683 for further assistance.
- Page 26 Instruction Manual REGISTER YOUR TABLET Keep your tablet up to date with the latest software updates, and be updated on what is new and upcoming for HKC. Please visit www.hkcdigital.com or mail the following info to HKC to register your tablet;...
- Page 27 HKC’s service center listed below will repair your Product or if repairs cannot be made, HKC will replace this Product at no charge with the same or similar Product. If the Product is defective as...
- Page 28 HKC which damage this Product or result in service problems; incorrect electrical line voltage, fluctuations and surges;...
