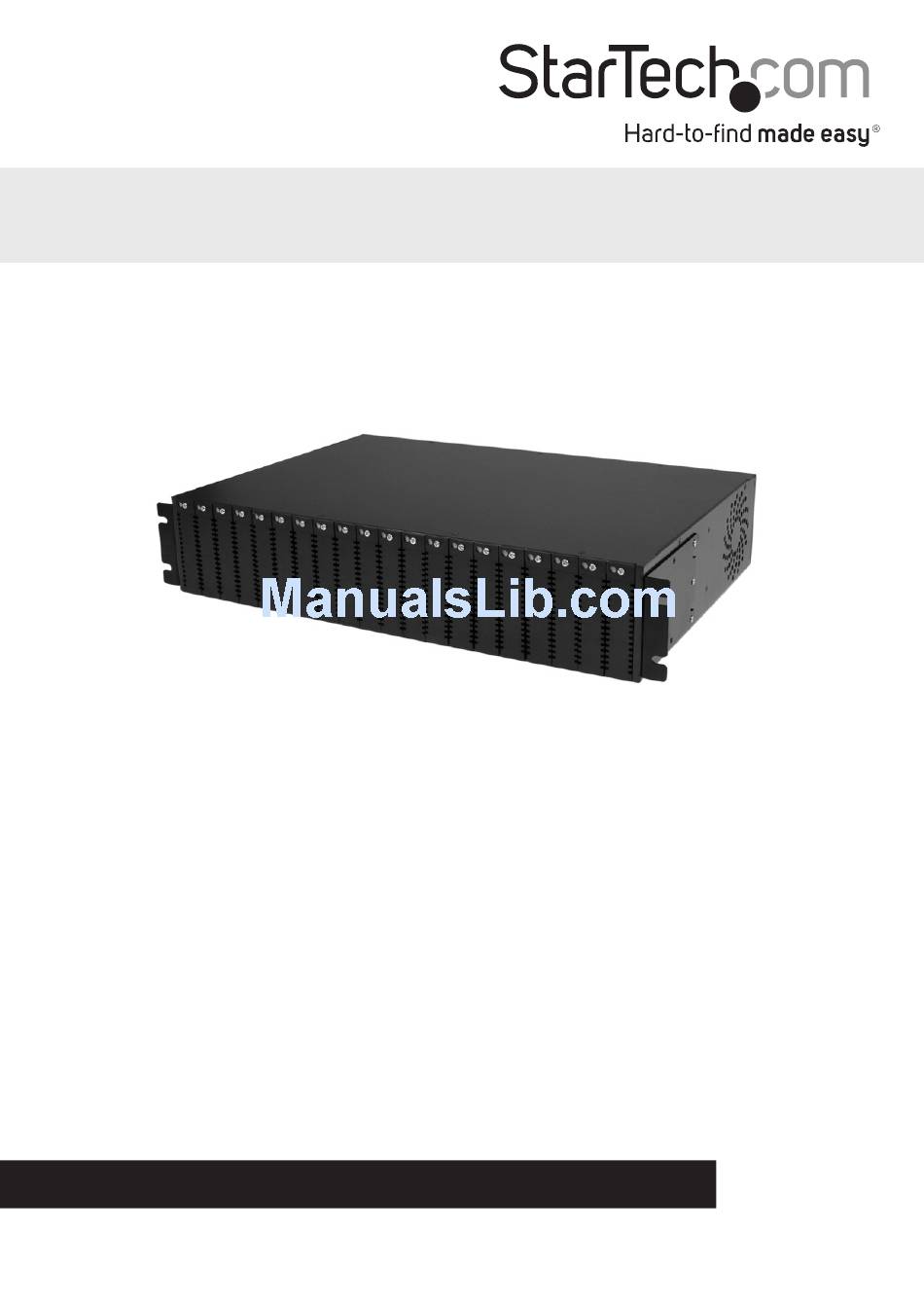

20-Slot 2U Rack Mount Media Converter
Chassis for ET Series 2 Media Converters
ETCHS2U
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/11/2012
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com ETCHS2U
Summary of Contents for StarTech.com ETCHS2U
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/11/2012...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Tools Required ............................1 Installation .....................2 Media Converter Card Installation ...................... 2 Fan Unit Removal/Replacement ......................3 Power Module Addition/Removal....................... 4 Specifications ..................5 Technical Support ..................6 Warranty Information ................6 Instruction Manual... -
Page 4: Introduction
Introduction The ETCHS2U 20-Slot 2U Rack Mount Media Converter Chassis for ET Series 2 Media Converters lets you add an un-managed, 20-slot media converter chassis to your rack or cabinet to provide central power and cooling. The media converter rack includes a single 200W power supply to centrally power all 20 slots, with an additional slot to add a redundant power supply (ETCHS2UPSU) for maximum up-time. -
Page 5: Installation
AC outlet (100~240 VAC) to mount the chassis. The chassis itself requires 2U of space within the rack. NOTE: Allow at least 10cm (4in) clearance at the front of the ETCHS2U for the fiber and other copper cables 2. If the rack uses square mounting holes, install cage nuts (sold separately) into the square mounting holes on the front posts of the rack. -
Page 6: Fan Unit Removal/Replacement
3. Align the card with the desired slot of the chassis and gently slide the card into the groove to seat the power connection 4. Re-tighten the captive screw to hold the card in place Fan Unit Removal/Replacement The left and right-side fan units (ETCHS2UFANL, ETCHS2UFANR) in the chassis are hot-swappable and can be replaced quickly and easily in the event of a failure. -
Page 7: Power Module Addition/Removal
Power Module Addition/Removal The AC Power Supply Module in the ETCHS2U supports input voltages of 100 to 240 (±10% @ ambient temperature) volts at frequencies of 47 to 63 Hertz. Only one power supply module is required to power a completely full rack; however an additional ETCHS2PSU unit can be added for redundancy. -
Page 8: Specifications
Specifications 20-Slot 2U Rack Mount Media Converter Chassis for ET Description Series 2 Media Converters Material SPCC (1.0 mm thick) Color Black Mounting Height Fans Included 2 x 80mm Fan Bearing Type Ball Bearing Air Flow Rate 59.37 CFM Output Power 200W Power Factor Correction Active... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
