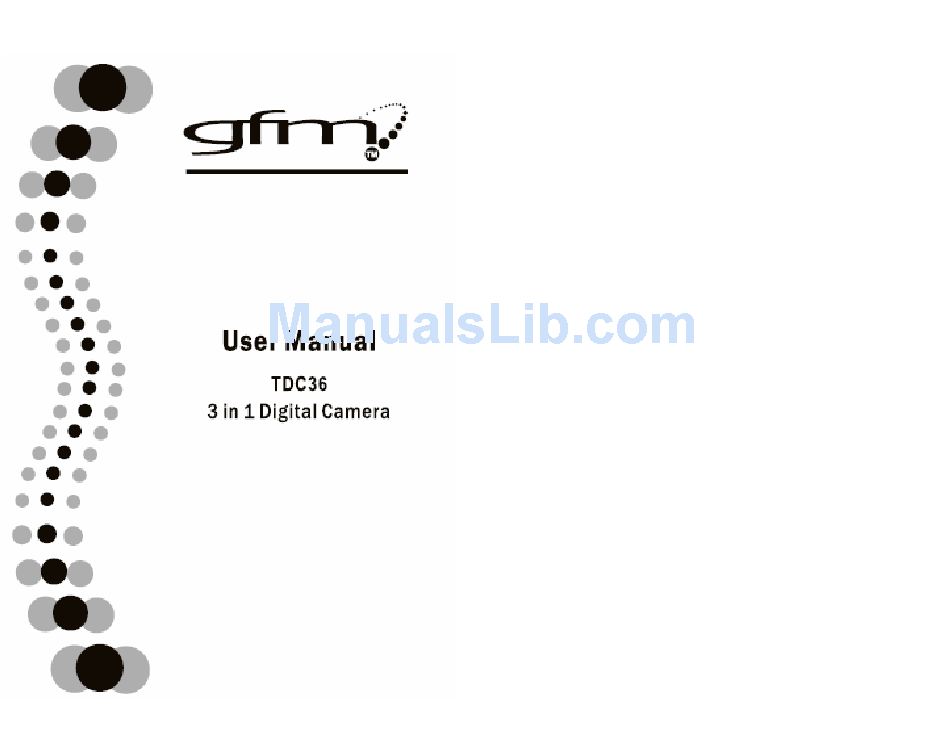

gfm TDC36 User Manual

3 in 1
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Specification
1.
3 in 1 Digital Camera:
Image Sensor:
Resolution:
Color:
Lens:
Capture Range:
Memory:
Capacity:
POWER:
Computer Interface:
Note: The quantity of compressed picture is various and depends on
the scene complexity.

System Requirement

2.
OS: Microsoft 2000/ME/XP/Vista
Mac V9.x/X.x*
Hard Disk Space: 500MB or above
Memory: 32MB RAM or above
USB interface and CD-ROM
Color Monitor (at least 800 x 600 24 bits or above)
*(go to gfmproducts.com to download the MAC OS driver)
Digital Still Camera
Video Capturing
Conferencing (Web cam)
CMOS Sensor
VGA 640 x 480 Pixels
QVGA 320 x 240 Pixels
24 bits
Fixed Focus=6.2mm F/2.5
0.5m~infinity
Built-in 8MB SDRAM
60-105 pictures (Compressed VGA)
25 pictures (VGA 640 x 480)
240-410 pictures (compressed QVGA)
102 pictures (QVGA 320 X 240)
1 AAA Alkaline battery
USB

Advertisement

Table of Contents
loading

Related Manuals for gfm TDC36

Summary of Contents for gfm TDC36

  • Page 1: System Requirement

    Specification 3 in 1 Digital Camera: Digital Still Camera Video Capturing Conferencing (Web cam) Image Sensor: CMOS Sensor Resolution: VGA 640 x 480 Pixels QVGA 320 x 240 Pixels Color: 24 bits Lens: Fixed Focus=6.2mm F/2.5 Capture Range: 0.5m~infinity Memory: Built-in 8MB SDRAM Capacity: 60-105 pictures (Compressed VGA)
  • Page 2  System Requirement OS: Microsoft Win98SE/2000/ME/XP Mac V9.x/X.x* TDC36 Hard Disk Space: 200MB or above Memory: 32MB RAM or above USB interface and CD-ROM Color Monitor (at least 800 x 600 24 bits or above) *(go to gfmproducts.com to download the MAC OS driver) 3 in 1 Digital Camera ...

  • Page 3: Software Installation

    Sel f Ti m er LED Vi ew Fi nder Shutter Button /Execute Mode Shut t er But t on LEN S USB I nt er f ace LC D Buzzer Bat t er y Cover M ode But t on Click on the Install Digital Camera Driver icon to install camera driver first.
  • Page 4 Ready to take Hi- Turn into standby Continuous Self timer Capture 3 photos Resolution pictures mode capture Delete all pictures Delete the last Change to Low- Change to Hi- Del all pictures Del the last Ready to take Low- pictures Resolution mode picture Resolution mode...

  • Page 5: Limited Warranty Period

    You can click the “video capture pin” in the “options” menu to select the resolution; the default is QVGA (320x240). IMPORTANT! When the battery power is low, the LCD display will blink  constantly which indicates it’s time to change the battery. Please download pictures to your computer before taking out ...

  • Page 6: What Is Not Covered

    caused by defects in workmanship and/or materials. A mechanical or electrical failure DURING THE PERIOD THAT THE COVERED PRODUCT IS AT AN AUTHORIZED caused by a direct result of a power surge is also covered. Parts will be replaced with SERVICE CENTER OR OTHERWISE AWAITING PARTS;...
  • Page 7 authorized repairs not to exceed the purchase price of the Covered Product or (3) FCC part 15.105 replacement of the Covered Product with similar features or (4) reimbursement for authorized repairs or replacement. Upon replacement, there is no longer any NOTE: This equipment has been tested and found to comply with the limits for a Class obligation for the replaced product under this Limited Warranty.

  • Page 8: Functional Parts Of The Camera

    Functional Parts of the Camera Software installation Attention: Self Timer LED View Finder Make sure you install all the necessary software in your computer Shutter Button /Execute Mode Shutter Button LENS before you connect the camera to a computer. Close all opened software applications on your computer before USB Interface installing the software.

  • Page 9: Camera Function Operation

    Camera function operation Download Picture If the MODE button is pressed repeatedly, the camera LCD display will 1. Connect the camera to the computer with a USB cable. The computer show the following symbols: will automatically update new information to confirm the connection. Ready to take Hi- Turn into standby Self timer...
  • Page 10 3. Click the download button; the pictures thumbnails that you’ve IMPORTANT! taken will be displayed on the interface in order. When the battery power is low, the LCD display will blink constantly which indicates it’s time to change the battery. Please download pictures to your computer before taking out the battery, or your photos will be lost.

  • Page 11: Gfm Guarantee

    GFM Guarantee measures: If you are not totally satisfied with this GFM product, you may return it Reorient or relocate the receiving antenna. to any Meijer store for a full refund within 6 months (180 days) of Increase the separation between the equipment and receiver.
