SX15-T, SX15-TM, SX30-T, SX30-8, SX15-8
SX15-T
SX30-T
INTRODUCTION
The SX15-T, SX15-TM, SX15-8, SX30-T and SX30-8
are Paging Horns for use with any Clarity
Mixer-Amplifier.
The SX15-T is a 15 Watt horn, the SX15-TM is a 15
Watt horn designed for nautical use and the SX30-T
is a 30 Watt horn, all containing a line matching
transformer. The SX15-8 is a 15 Watt, 8 Ohm paging
horn, the SX30-8 is a 30 Watt, 8 Ohm paging horn.
These horns can be used for interior or exterior
paging applications.
These instructions contain the specifications and
information necessary to install, operate and maintain
the horns.

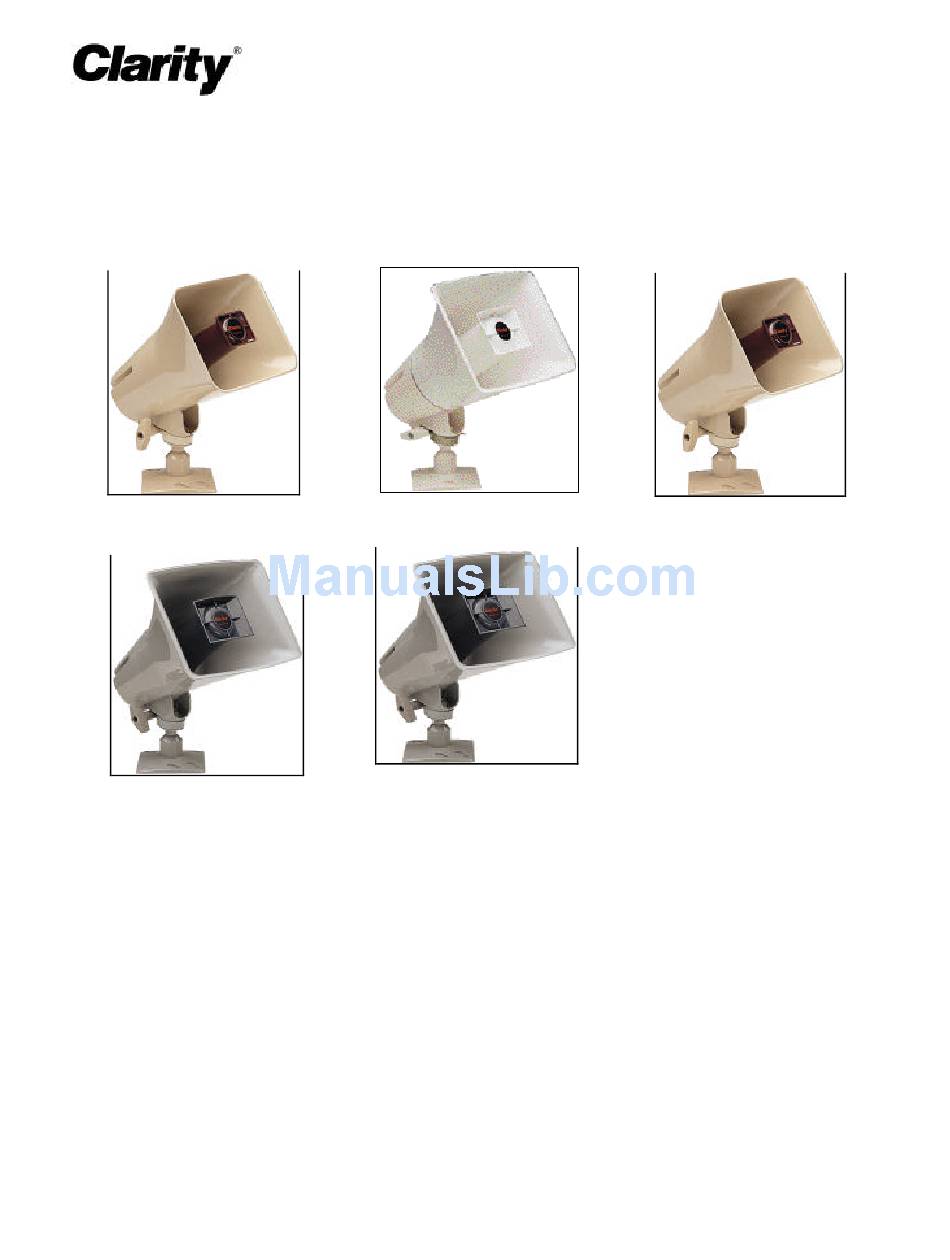

PAGING HORNS
SX15-TM
SX30-8
SPECIFICATIONS
Product Description
- SX15-T
- SX15-TM
- SX30-T
- SX15-8
- SX30-8
Applications
- Clarity Paging Systems
- Existing 8 Ohm or 25, 70 or 100 Volt Paging
Systems
1
Issue 10
SX15-8
25/70/100V 15 Watt Paging Horn
25/70/100V 15 Watt Paging Horn
(Marine Version - Sealed)
25/70/100V 30 Watt Paging Horn
8 Ohm 15 Watt Paging Horn
8 Ohm 30 Watt Paging Horn
947432
Advertisement
Related Manuals for Clarity SX15-T
Summary of Contents for Clarity SX15-T
- Page 1 Mixer-Amplifier. - SX15-TM 25/70/100V 15 Watt Paging Horn (Marine Version - Sealed) The SX15-T is a 15 Watt horn, the SX15-TM is a 15 - SX30-T 25/70/100V 30 Watt Paging Horn Watt horn designed for nautical use and the SX30-T...
- Page 2 - Temperature: 0 to +50 Degrees C can be used for connections. - Humidity: 0 to 85% Connections Horn Taps for the SX15-T, SX15-TM Connect station or other suitable wire to leads as 15 Watts, 25/70/100 Volts follows: Switch Setting 100V...
- Page 3 LIMITED WARRANTY Clarity warrants its products to be free from defects in materials and workmanship under conditions of normal use and service for a period of one year from the date of shipment. The obligation under this warranty shall be limited to the replacement, repair or refund of any such defective device within the warranty period, provided that: inspection by Clarity indicates the validity of the claim;...
- Page 4 I-Beam "C" Clamp Speaker Base Position Adjustment Knob Figure 1 - Mounting to a Beam with a "C" Clamp Electrical Backbox Wire Position Speaker Adjustment Base Knob Figure 2 - Mounting to an Electrical Backbox...
