Summary of Contents for Gentner ET10

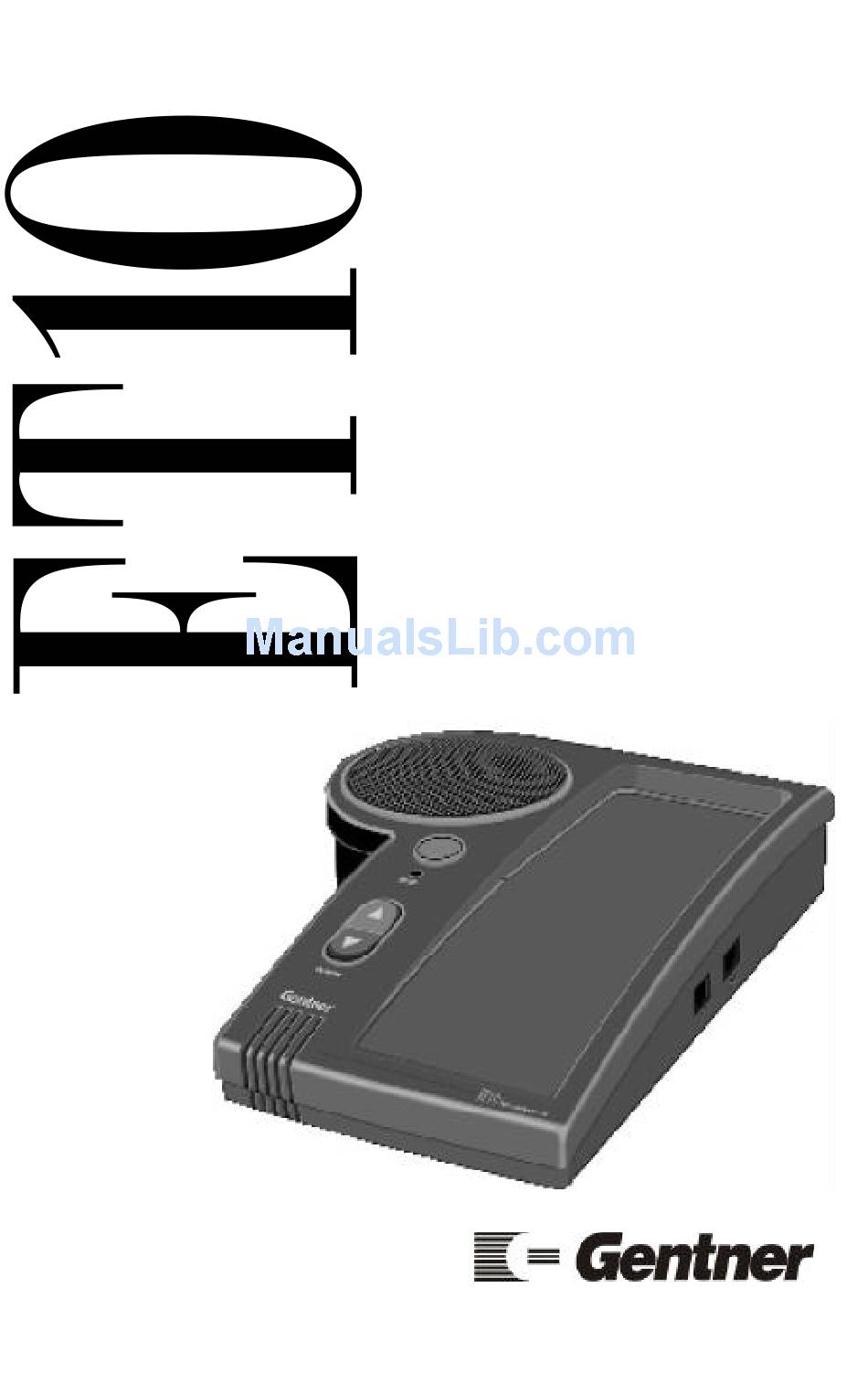

- Page 1 Teleconferencer User’s Manual...
-
Page 2: Copyright Information
Copyright Information Copyright 1996 by Gentner Communications Corporation. All rights reserved. No part of this manual may be reproduced in any form or by any means without written permission from Gentner Communications Corporation. Printed in the United States of America. Original version, 1/96. - Page 3 With the ET10, you can directly connect to your existing telephone to maintain all of your telephone functions.
- Page 4 Page 2 ET10 User’s Manual Unpacking Ensure that the following equipment was received with your shipment: 13" Flat Handset Cable Direct Plug-In Power Module ET10 Manual Optional accessories ET10ex Microphone* ET10 15’ Ex Cable Assembly * * Additional accessories available (back cover).
-
Page 5: Features And Benefits
ET10 User’s Manual Page 3 Features and Turns your existing telephone into a full-duplex Benefits audioconferencer Provides telephone compatibility to use your current telephone capabilities (i.e. hold, transfer, confer- ence, speed-dial, last-number redial, etc.) Operates with digital and analog telephones... -
Page 6: Before You
Page 4 ET10 User’s Manual Before You The ET10 is designed to work in almost any Install acoustic environment with digital and analog telephones. This unique design is a first in the audioconferencing industry. To maximize your teleconference audio quality, we recommend that... - Page 7 ET10 User’s Manual Page 5 Telephone Set Requirements The ET10 will operate with telephone sets that have a detachable handset cord at the telephone base. The ET10 will not work with “Princess” or “Trimline” style telephones that have the dial pad built into the handset.
-
Page 8: Installation
Page 6 ET10 User’s Manual Installation The ET10 connects directly to your existing telephone set so that you can maintain all your standard telephone functions. Follow these step-by- step instructions to install your ET10: Completed Installation The following drawing diagrams the ET10 system when installation is complete. - Page 9 Step 2 Plug one end of the supplied 13-inch handset cable into the telephone handset jack. Plug the other end of the flat handset cable into the ET10 jack labeled . Note: If you need a longer handset cable, please contact Gentner Communications at the number listed below.
- Page 10 Power Connector Step 5 (Record Option) To record your audioconference, connect a tape recorder (not provided) to the ET10 jack labeled REC. A standard phono cable is typically supplied with most tape recorders, or may be purchased at most electronic supply stores.
-
Page 11: One-Time Setup
ET10. Step 1 - Switch Location Locate the slide cover on the bottom of the ET10. Open the cover to reveal the telephone sensitivity and compatibility switches. Lift Cover Bottom view of... - Page 12 Page 10 ET10 User’s Manual Switch Setting Key Switch ON (Up) Compatibility Sensitivity Switches Switches Switch OFF (Down) For Setup Assistance Dial: 800-945-7730 or 801-975-7200...
-
Page 13: Assisted Setup
MUTE light flash rapidly. Step 3 Set the slide control on the bottom of the ET10 to the far right (+). If you are not using a Seimens Dyad, Jr. Dyad or Digit 260 Console, make sure the sensitivity switch #2 (found on the bottom of the ET10) is down (off). - Page 14 Page 12 ET10 User’s Manual Move the slide control slowly down toward the left (-). Stop immediately when the MUTE light turns from a flashing red to a flashing green. If the MUTE light never flashes green, reposition the slide control to the far right (+).
-
Page 15: Operation
ET10 pad after answering the call. The conference will automatically begin. Adjusting the speaker volume Press the VOL button on the ET10 either up or down to a desired listening level. The green light will flash for every volume-level increase or decrease. - Page 16 ET10 or picked up and used as normal. Hanging up a call Place the handset on the telephone handset cradle.
-
Page 17: Troubleshooting
Assisted Setup (Pages 11- minimum setting If you cannot resolve your difficulty by following the suggested remedies in this troubleshooting section, please call Gentner Communications Corporation for assistance at 800-945-7730 or 801-975-7200. For Setup Assistance Dial: 800-945-7730 or 801-975-7200... -
Page 18: Specifications
Page 16 ET10 User’s Manual Specifications ET10 Dimensions 8.75"/22.5cmL x 7"/17.5cmW x 2"/5cmH Weight 1.7 lbs./.77 kg dry 2.6 lbs./1.18 kg shipping Connectors PHONE: 4 conductor, RJ9 HANDSET: 4 conductor, RJ9 REC: 2.5 mm phone jack 12 VDC IN: 2.5 mm Barrel Connector... - Page 19 ET10 User’s Manual Page 17 ET10ex extension microphone (optional) Dimensions 4"/9.5cmL x 2.75"/7cmW x 1.25"/3cmH Weight 5.1 oz./.14 kg dry 8.6 oz./.23 kg shipping Connector Mic to ET10: RJ11-6 ET10ex Microphone 1 Omni-directional element, 360° coverage Direct Plug-In Power Adaptor Dimensions 2.25"/6cmL x 2"/5cmW x 2.25"/6cmH...
-
Page 20: Warranty
Page 18 ET10 User’s Manual Warranty Gentner Communications Corporation (Manufacturer) warrants that this product is free of defects in both materials and workmanship. Should any part of this equipment be defective, Manufacturer agrees, at its option, to: A. Repair or replace any defective part free of charge (except transportation charges) for a period of one year from the date of the original purchase, provided the owner returns the equipment to the Manufacturer at the address set forth below. - Page 21 FCC Part 68 Compliance This equipment complies with Part 68 of the FCC rules. On the bottom of the ET10 is a label that contains, among other information, the FCC registration number. If requested, this infor- mation must be provided to the telephone company.
-
Page 22: Safety Information
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by Gentner Communications Corporation. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment. - Page 23 “Our vision is to provide our customers with the total audio solution for conferencing.” Accessories for full ET10 customization: Accessory Case (part no. 910-140-006) Companion Phone (part no. 910-140-007) Dual Headset (part no. 910-140-004) ET10 Case (part no. 910-140-005) ET10ex Extension Mic (part no. 910-140-003)
- Page 24 ENTNER OMMUNICATIONS ORPORATION Sales and Technical Assistance 1825 Research Way Salt Lake City, Utah 84119 Toll Free 800-945-7730 Telephone 801-975-7200 FAX 801-977-0087...
