Summary of Contents for American Sensor CO800

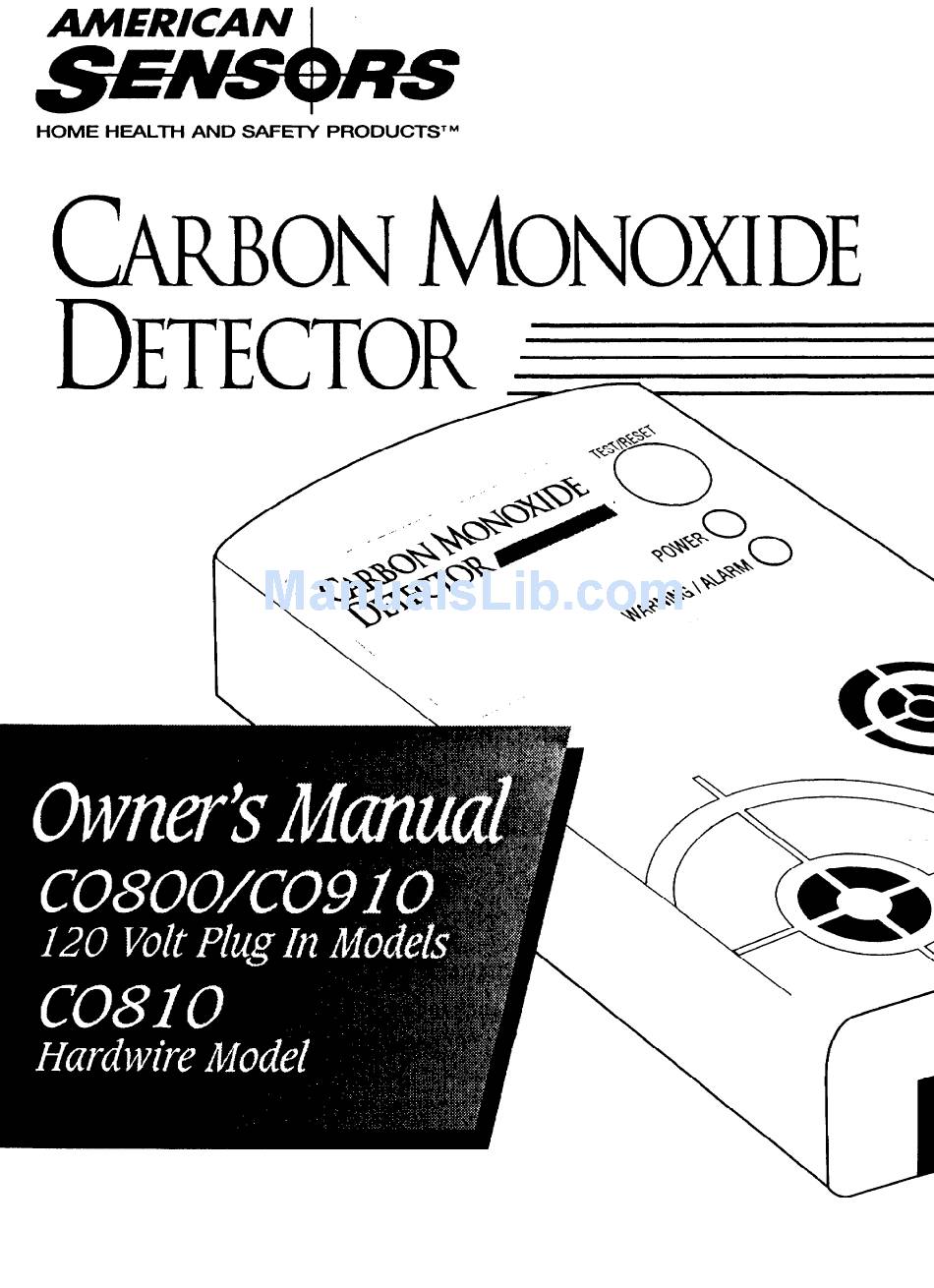

- Page 1 AMERICAN HOME HEALTH SAFf3Y PRODUCTSTM CARBON MONOXIDE SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com...
- Page 2 What is carbon monoxide -, why should you be concerned? Carbon monoxide is a dangerous, poisonous gas. It is often referred to as the Silent Killer because it has no odor or taste and it can’ t be seen. The presence of carbon monoxide inhibits the blood’...
- Page 3 What are the potential sources y of carbon monoxide? Although many products of combustion can cause discomfort and adverse health effects, it is carbon monoxide (CO) that presents the greatest threat to life. CO is produced by the incomplete combustion of fuels such as natural gas, propane, heating oil,‘...
- Page 4 Correct operation of fuel-burning equipment requires two conditions. There must be: An adequate supply of air for complete combustion Proper venting of the products of combustion from the furnace through the chimney, vent or duct to the outside Typical Carbon Monoxide Problems Equipment problems, due to defects, poor maintenance, damaged or cracked heat exchangers Collapsed or blocked chimneys or flues, dislodged,...
- Page 5 Potential sources of Carbon Monoxide in your home/off ice: Clogged Chimney Wood or Gas Fireplace Gas Appliances Automobile and Garage Gas Water Heater ... &+ Gas or Kerosene or Oil Furnace Cigarette Smoke Heater SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200...
- Page 6 What are the possible symptoms of monoxide poisoning? carbon Carbon monoxide (CO) is odorless, colorless, tasteless and very toxic. When inhaled, it produces an effect known as chemical asphyxiation. Injury is due to the combining of CO with the available hemoglobin in the blood, which lowers the oxygen-carrying capacity of the blood.
- Page 7 Where should you install the detector? Since carbon monoxide moves freely in the air, the suggested location is in or as near as possible to sleeping areas of the home. The human body is most vulnerable to the effects of carbon monoxide during sleeping hours.
- Page 8 AHow should \‘ Your American Sensors Carbon Monoxide Detector is easy to install to protect you and your family in your home, cottage, cabin and of&e. FOR PLUG IN MODELS COSOO, CO910 Simply plug the Carbon Monoxide Detector into a standard 120 Volt AC wall outlet in your home.
- Page 9 ,How should you use the 90” Rotating Plug? FOR PLUG IN MODELS COSOO, CO910 The detector should be installed vertically. If your outlet has a horizontal orientation, simply rotate the plug on the back of the unit 90” and install. Rotate Plug Install...
- Page 10 AHow should you install the Hardwire Models? 120 VOLT HARDWIRE MODEL!5 CO810 t/FOR WmING: Your Carbon Monoxide Detector is to be mounted onto a junction box on the wall or ceiling. These units are fbr permanent connection only and should be irxdled by Qualified Service Personnel only.
- Page 11 3. Connect the white wire (neutral) from the junction box to the white wire of the Detector using a twist-on wire connector (supplied). The method is as follows: Strip both wires l/2 inch. Keep the ends even. Hand twist the connector onto the wires as tightly as possible.
- Page 12 While pushing forward, slide the detector down until a clicking sound is heard. The detector should now be secured in place. Tutn the power back on at the fLse box or service panel. 8. Your Detector should be sewiced by Qualified Service Personnel only.
- Page 13 20 and 21 or pages 22 and 23, which tell you what to do after an alarm or low level warning. The American Sensors Carbon Monoxide Detector is designed to do a continuous self-diagnostic check of its micro processing circuitry when in use.
- Page 14 \ How can you maintain your detector? A detector only it works. The is useful following illustration explains proper maintenance: Test/Reset button Test the detector by pressing the Test/Reset button once a month. vents -vacuufTtheair vents occasionally them to keep freeofdust In addition, a Carbon Monoxide Detector Test Kit is available to test the detector in a “true”...
- Page 15 What do the bights mean? FOR MODELS CO800~ CO810 and OP ower - Green This lights up green when the detector has pawer. It is ~~~rn~ fur this light to be on while the danor W~~~i~~~~~rn - F&d This lights up red when the...
- Page 16 What does the Digital LED Display mean? FOR MODEL CO910 OWY: This model fatures a Digital LED Display (Light Emitting Diode) that will show the level of carbon monoxide present when there are concentrations of 50 parts per million (ppm) or greater. See pages 8 and 9 for more information on low and dangerous levels of carbon monoxide.
- Page 17 SMARTHOME.COM(TM) 1-800-SMART-HOME 949-221-9200 http://www.smarthome.com What should you do sounds? iif the Alarm...
- Page 18 What following resetting darrn? afier detector A full continuous alarm within six minutes after reset confkms ongoing presence of harmful levels of carbon monoxide. If this occurs follow instructions I and 2 on Page 20. A low level warning within six minutes afkr reset cdirms ongoing presence of low levels of carbon monoxide.
- Page 19 What should you do if the Low Level Warning signal activates? If low lwels of carbon monoxide are detected, your detector will emit a low level warning (This warning is a series of 3 short beeping sounds and 3 flashes of the red light every 2.5 minutes.) this warning signal is activated, respond as follows: If anyone is experiencing the effects of carbon monoxide poisoning - headache, dizziness, nausea or other flu-like...
- Page 20 What do after resetting the detector following a low level warning? A A full continuous alarm within six minutes after reset confirms ongoing presence of harmful levels of carbon monoxide. If this occurs follow instructions 1 and 2 on Page 20. B A low level warning within six minutes after reset confirms ongoing presence of low levels of carbon monoxide.
- Page 21 -ft\ Technical Information Your detector utilizes a proprietary Electronic Sensing Technology that the unit to vary the permits exposure time before the alarm sounds based on carbon monoxide concentrations. Tmes Exposure carbon monoxide concentrations and time standards for the alarms are as follows:. Full Alarm Activates In less than 90 minutes at exposures of...
- Page 22 This device may not alarm at low carbon WARNING: monoxide levels. The Occupational Safety and Health Administration (OSHA) has established that continuous exposure to levels of 50 ppm should not be exceeded in an 8 hour period. This detector has not been investigated for carbon monoxide detection below ppm.
- Page 23 ATips for the Homeowner Energy Conservation and Indoor Air Quality Two steps that homeowners take to conserve energy may adversely af5ect indoor air quality. Since air leakage can account for as much as 40% of heat loss, houses are being made more air tight. Reduced air leakage will contribute to higher concen- trations of air contaminants from indoor sources and or fireplace...
- Page 24 If you have a gas water heater, make sure that combustion air openings at the bottom of the tank and the opening below the d& diverter (on top of the tank next to the flue duct) remain unblocked. If you have a gas dryer, the exhaust duct must be vented to the outside and have a hood at the end.
- Page 25 Confining or enclosing gas-fired equipment If you have partitioned off your furnace and water heater, you may need additional ventilation. Danger Signs Stuf?$ stale or smelly air, back drafts and soot from a fireplace or fixnace chimney means your usually home needs more air for proper combustion and healthy living.
- Page 26 Do not expose yourself to carbon monoxide through carelessness. Never operate a gasoline-powered engine in a confined or enclosed space such as a garage or tool shed. Never use a kerosene stove or charcoal grill in a confined space such as a closed garage or recreational van. On masonry chimneys inspect the clean-out regularly to ensure that the chimney is free and clear of debris.
