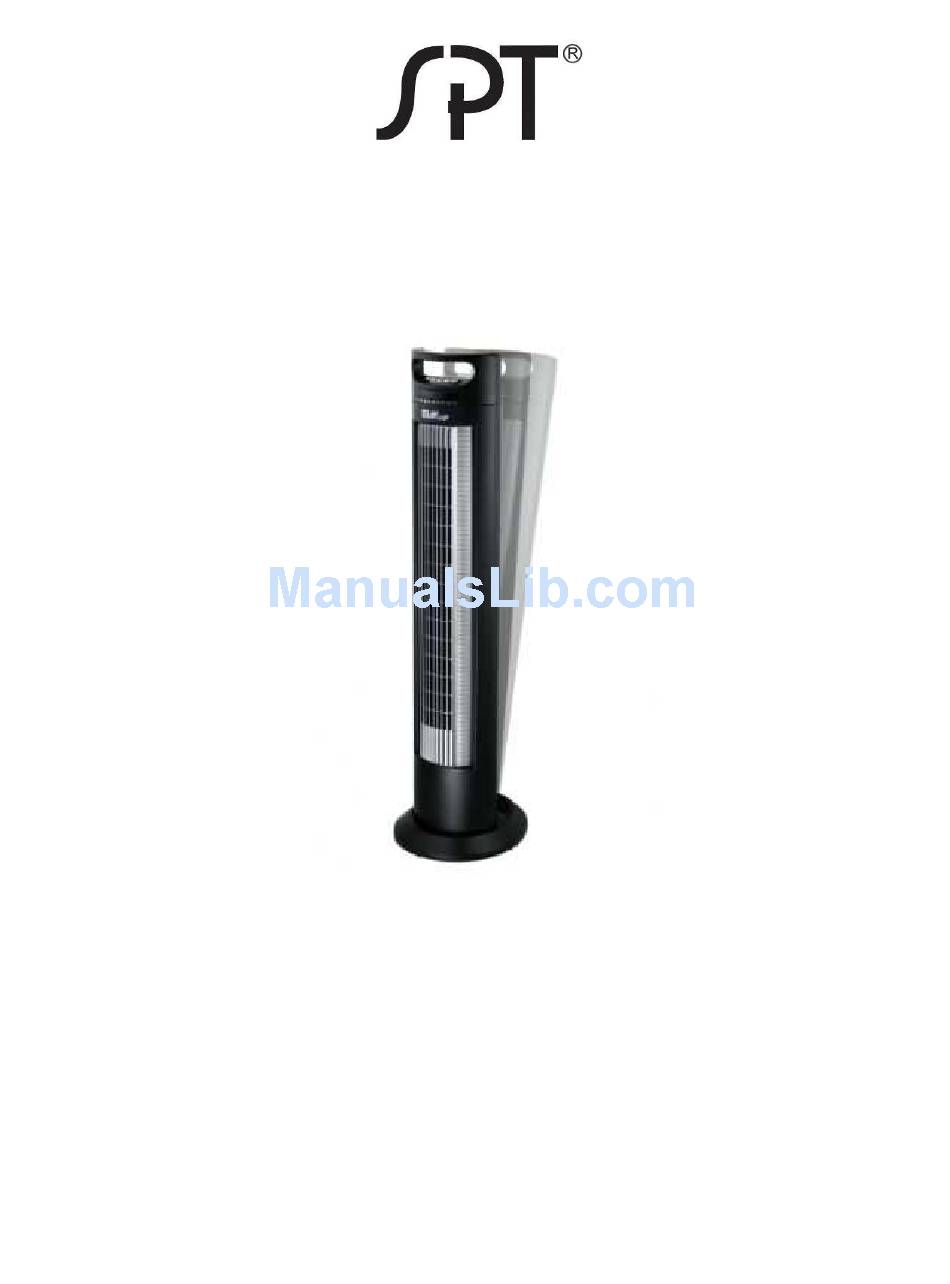

- Page 1 INSTRUCTION MANUAL RECLINABLE TOWER FAN WITH IONIZER MODEL: SF-1523...
-
Page 2: Important Safety Instructions
19. This product employs overload protection (fuse). A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the unit from the outlet and replace fuse or contact Sunpentown. 20. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. - Page 3 PARTS IDENTIFICATION ASSEMBLY INSTRUCTIONS Do not use this fan before assembling the base. 1. Assemble the front and rear base with power cord traveling through the center. 2. Secure base assembly to fan by inserting and tightening the (4) screws on the bottom of base. (A) 3.
- Page 4 CONTROL PANEL AND OPERATION INSTRUCTIONS 1. Connect power and press the Power/Speed button. Fan will begin operation at high speed. 2. Change fan speed by pressing the Power/Speed button. Selected speed will be indicated by illuminated symbols: Low , Medium and High 3.
- Page 5 WARNING! If the fan has any problems, please contact Sunpentown Customer Service at 1-800-330-0388. DO NOT ATTEMPT TO OPEN OR REPAIR THE FAN YOURSELF. DOING SO COULD VOID THE WARRANTY AND CAUSE DAMAGE OR PERSONAL INJURY...
- Page 6 ELECTRIC SCHEMATIC DRAWING...
-
Page 7: Your Guarantee
This guarantee is subject to the following terms: Sunpentown must be notified of the fault. Proof of purchase must be presented to Sunpentown’s nominated representative. The warranty will be void if the product if modified, misused or repaired by an unauthorized person.
