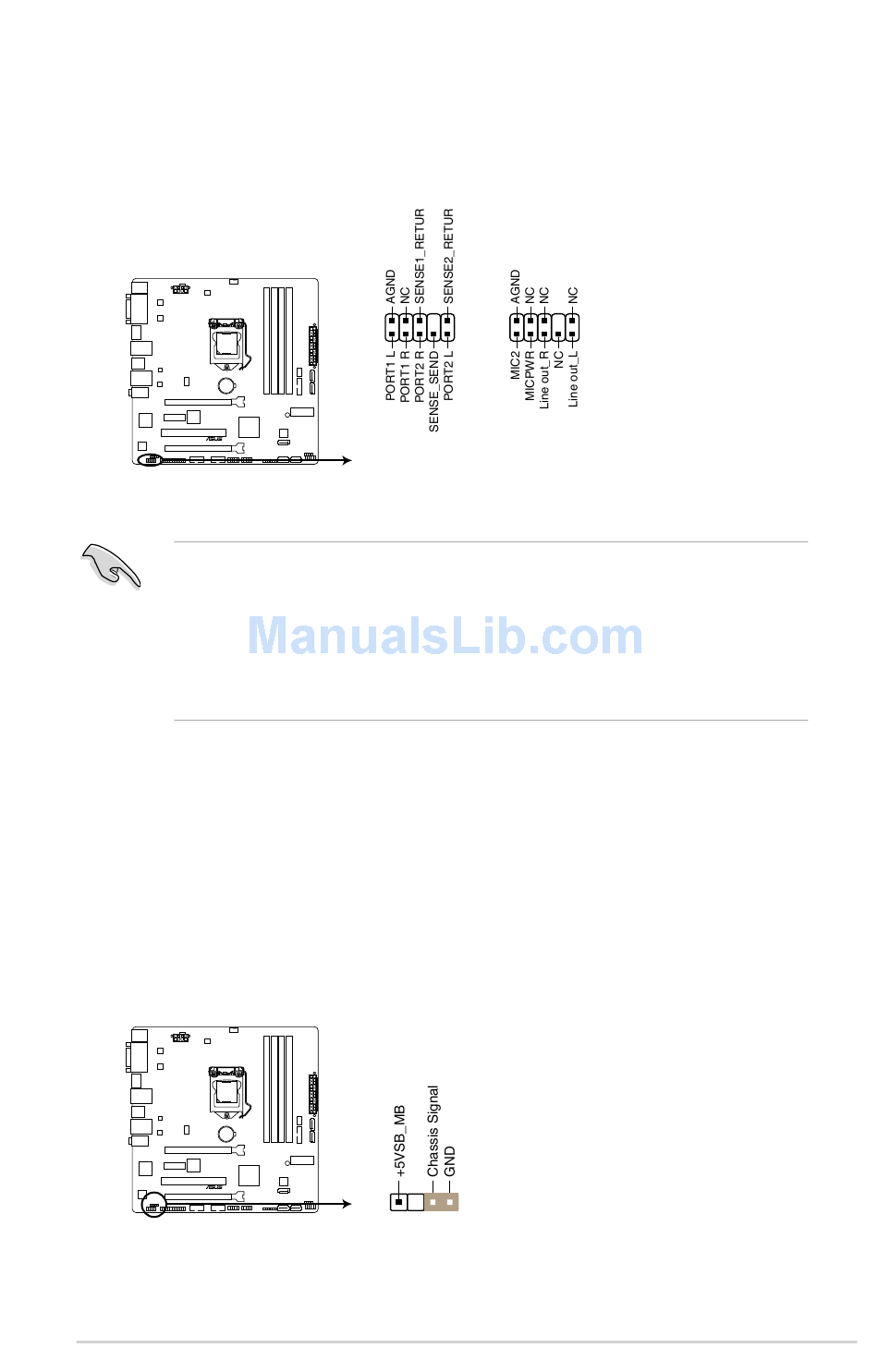

4. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
CS-B
CS-B Front panel audio connector
• We recommend that you connect a high-definition front panel audio module to this
connector to avail of the motherboard's high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector,
set the Front Panel Type item in the BIOS setup to [HD]. If you want to connect an
AC'97 front panel audio module to this connector, set the item to [AC97]. By default,
this connector is set to [HD]. See section 2.6.10 Onboard Devices Configuration for
details.
5. Chassis intrusion connector (4-1 pin CHASSIS)
This connector is for a chassis-mounted intrusion detection sensor or switch. Connect
one end of the chassis intrusion sensor or switch cable to this connector. The chassis
intrusion sensor or switch sends a high-level signal to this connector when a chassis
component is removed or replaced. The signal is then generated as a chassis intrusion
event.
By default, the pin labeled "Chassis Signal" and "Ground" are shorted with a jumper
cap. Remove the jumper caps only when you intend to use the chassis intrusion
detection feature.
CS-B
CS-B Chassis intrusion connector
ASUS CS-B
AAFP
PIN 1
HD-audio-compliant
pin definition compliant definition
CHASSIS
PIN 1
Legacy AC'97
1-15
