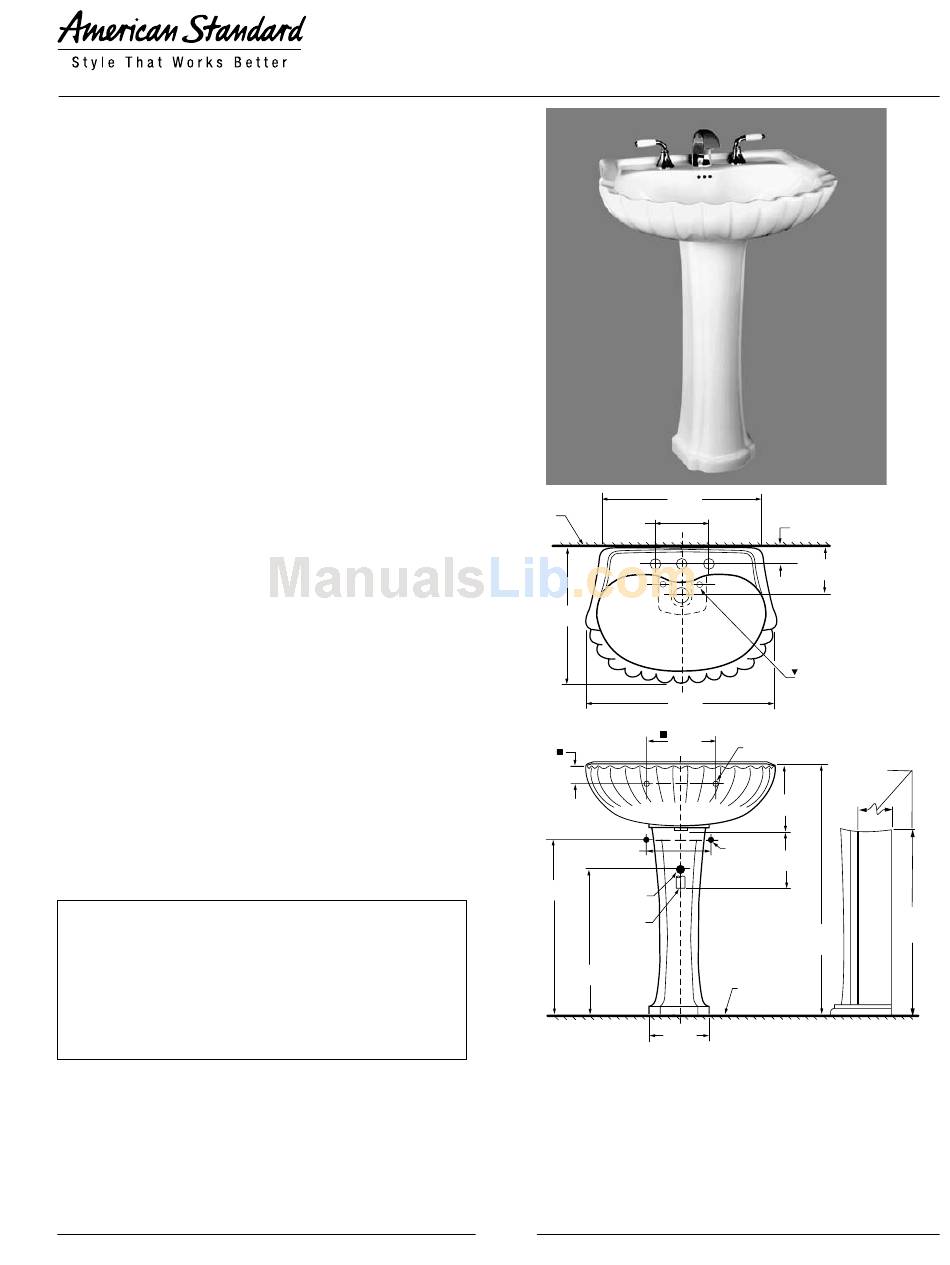

SEYCHELLE™ PEDESTAL SINK
• Shell-shaped sculptured lavatory with
styled pedestal
• Made from vitreous china
• Rear overflow
• Supplied with mounting kit
• Faucet ledge
Shown with 8871.572 Lexington faucet with
porcelain lever handles (not included)
0230.800 Faucet holes on 8" (203mm) centers
(Illustrated)
0230.400 Faucet holes on 4" (102mm) centers
0230.100 Center hole only
Nominal Dimensions:
597 x 483 x 864mm
(23-1/2" x 19" x 34")
Separate Components:
0230.008 Pedestal top-8" (203mm) centers
0230.004 Pedestal top-4" (102mm) centers
0230.001 Pedestal top-center hole only
733500-400 Pedestal only
Bowl sizes:
508mm (20") wide
305mm (12") front to back
152mm (6") deep
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
© 2008 AS America Inc.
FINISHED WALL
OR SPLASHBACK
❏ Black
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
*
SUGGESTED.
PEDESTAL ANCHORING SCREWS NOT INCLUDED.
SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
J11
508mm
(20)
203mm
(8)
483mm
(19)
597mm
(23-1/2)
260mm
(10-1/4)
203mm
(8)
*
578mm
1-1/4 O.D.
(22-3/4)
WASTE
1-1/4 O.D
TAILPIECE
*
527mm
(20-3/4)
210mm
(8-1/4)
SEYCHELLE™
PEDESTAL SINK
VITREOUS CHINA
64mm
(2-1/2)
210mm
(8-1/4)
PEDESTAL ANCHORING
SCREW HOLES 5/16 DIA.
19mm (3/4) DIA. HOLES
FOR ANCHOR BOLTS
DRAIN
CHASE
197mm
(7-3/4)
SUPPLIES
AS REQ'D 178mm
(7)
864mm
FLOOR
(34)
FINISHED FLOOR
Revised 2/08
Revised
OPEN
TO
