Summary of Contents for EOS EOSP-610

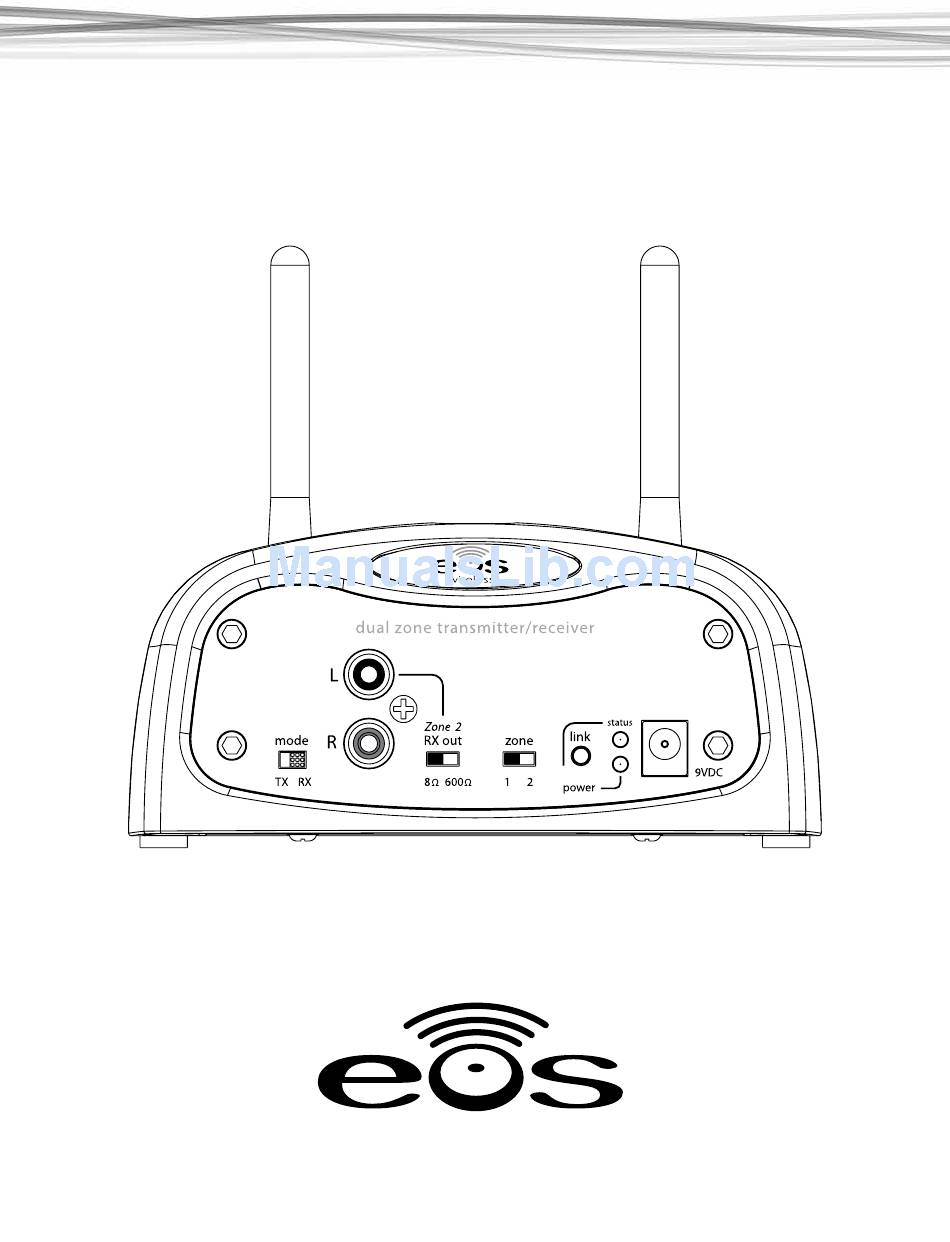

- Page 1 EOSP-610 Dual Zone Wireless Transceiver User Manual commercial wireless audio...
- Page 2 Thank You For Choosing Eos Wireless! We hope you will get much enjoyment from your wireless audio system. Please read the entire contents of this manual. It is filled with reference information that will allow you to get the most from your new Eos system. If you have any questions, please check our web site at pro.eoswireless.com/support or call us at 877-465-3927.
-
Page 3: Table Of Contents
Table Of Contents Contents Important Safety Instructions FCC Information Limited Warranty Product Support Player Setup Wireless System Setup Placement Zone Select TX Mode RX Mode Linking Procedure Adding Additional Wireless Speakers/Receivers Functions & Controls Getting the most out of your wireless audio Wireless Audio Troubleshooting Guide... -
Page 4: Important Safety Instructions
A Consumer Guide to Product Safety Important Safety Instructions Please take the time to follow the instructions in this manual carefully. It will help you set up and operate your system properly and enjoy all of the advanced features. Please save this manual for future reference. WARNING: To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture. -
Page 5: Fcc Information
A Consumer Guide to Product Safety FCC Information Information about products that generate electrical noise if applicable, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Limited Warranty
12. Ordinary adjustments to the product that can be performed by customer as outlined in the manual. 13. Damage to computer or audio equipment Eos Wireless Pro Series Products are designed and manufactured by: IntelliTouch 6370 Nancy Ridge Rd. #105... -
Page 7: Player Setup
The Eos Pro Series Wireless Transceiver can act as either a transmitter (TX) or a receiver (RX). In TX mode the transceiver can send wireless audio signal to either Eos Wireless Speakers (EOSP-622) or another Eos Transceiver in RX mode. In RX mode it can receive wireless audio from either the EOSP-500 Dual Zone Music Player with the EOSP-510 wireless transmitter card installed, or from another EOSP-610 transceiver in the TX mode. -
Page 8: Linking Procedure
Set Up Linking Wireless Transmitters & Wireless Speakers/Receivers Before initial use, you must link the wireless transmitter (TX) with the wireless speakers/ transceivers (in RX mode). Follow the simple steps below to perform this linking procedure. You can link up to 8 wireless speakers/transceivers (in receive mode) to the transmitter. To simplify the process, it is recommended that you do the below process with the transmitter and receivers in close proximity to each other to avoid having to run back and forth between them. -
Page 9: Functions & Controls
Operation Functions & Controls Line level input/outputs Link button connect to any music source Used to link wireless speakers, amp or music on-hold input receivers and transmitter Mode select switch allows selection of transmit (TX) or receive mode (RX) Impedance output Zone select switch select switch allows selection of Zone 1 or Zone 2... -
Page 10: Getting The Most Out Of Your Wireless Audio
Troubleshooting Getting the most out of your wireless audio Eos wireless is pure magic but if you experience problems here’s a few suggestions and tips to help you get the best performance possible. If wireless speaker/receiver falls out of range of the transmitter’s signal, the connection can begin to break up. -
Page 11: Wireless Audio Troubleshooting Guide
Troubleshooting Wireless Audio Troubleshooting Guide Solution Issue Make sure that the power LED is illuminated, if not check No link power connections on the transmit and receive ends. Bring the wireless speaker or receiver close to the trans- mitter and retry the linking procedure. When linking with Transmitter/Receiver unit, make sure the MODE switch is set to the TX mode. - Page 12 commercial wireless audio 877-465-3927 www.eoswireless.com/pro...
