Summary of Contents for EOS EOSP-500

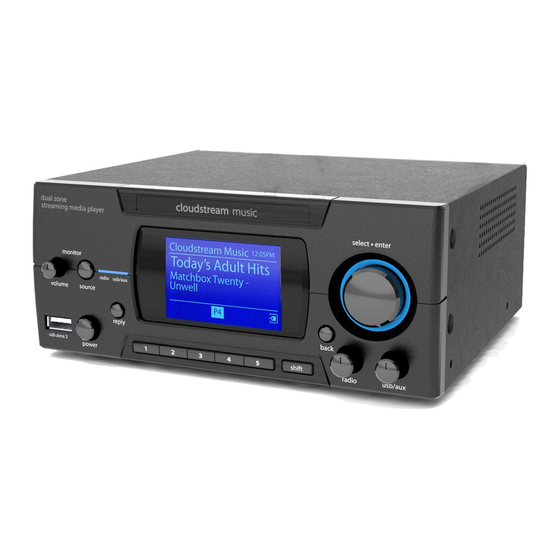

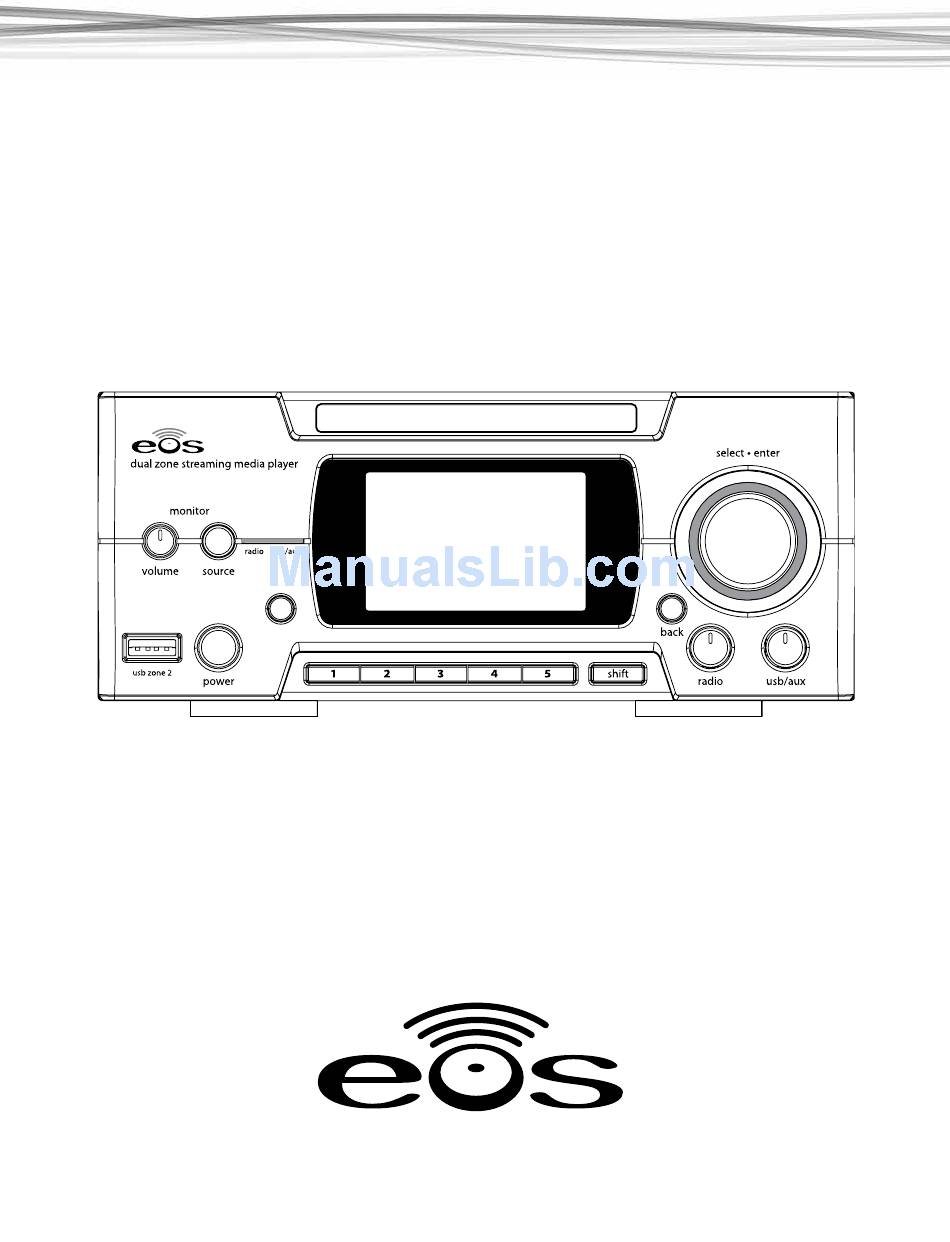

  • Page 1: User Manual

    EOSP-500 Dual Zone Streaming Music Player menu User Manual commercial wireless audio...
  • Page 2 Thank You For Choosing Eos Wireless! We hope you will get much enjoyment from your wireless audio system. Please read the entire contents of this manual. It is filled with reference information that will allow you to get the most from your new Eos system. If you have any questions, please check our web site at pro.eoswireless.com/support or call us at 877-465-3927.
  • Page 3: Table Of Contents

    Limited Warranty Product Support Player Setup Network Configuration Registering the Player Audio Connections Wireless Operation Installing the Eos Wireless Transmitter Card Linking Wireless Transmitters & Receivers Linking Procedure Adding Additional Wireless Speakers/Receivers Controls & Functions Player Operation Choosing a station Storing &...
  • Page 4: Important Safety Instructions

    A Consumer Guide to Product Safety Important Safety Instructions Please take the time to follow the instructions in this manual carefully. It will help you set up and operate your system properly and enjoy all of the advanced features. Please save this manual for future reference. WARNING: To reduce the risk of fire or electrical shock, do not expose the product to rain or moisture.
  • Page 5: Fcc Information

    A Consumer Guide to Product Safety FCC Information Information about products that generate electrical noise if applicable, this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 6: Limited Warranty

    12. Ordinary adjustments to the product that can be performed by customer as outlined in the manual. 13. Damage to computer or audio equipment Eos Wireless Pro Series Products are designed and manufactured by: IntelliTouch 6370 Nancy Ridge Rd. #105...
  • Page 7: Player Setup

    Connections Player Setup 1. Connect the power adapter to wall outlet and plug the connector to player’s power jack. 2. Connect ethernet cable from player to any open port on your internet router. 3. Press POWER button to power on player. Network Configuration Note: The Streaming Media Player is set to DHCP as a default.
  • Page 8: Audio Connections

    Connections Audio Connections Wired Audio Connection wired speakers Eos streaming music player POWER AMP power amp Connect power supply to outlet Connect player to open LAN port on router cable/dsl INTERNET POWER modem router Wireless Audio Connection wireless speakers Eos streaming music player power Install wireless audio card (EOSP-510) Connect power supply to outlet...
  • Page 9: Wireless Operation

    Installing the Eos Wireless Transmitter Card You can add a wireless transmitter card to the Eos Streaming Music Player to allow your audio to play wirelessly to Eos Wireless speakers and receivers by following the procedure below. 1. Unplug power from Eos Streaming Music Player 2.
  • Page 10: Controls & Functions

    6-10 (up to 10 stations) Wireless Music Card Optional user installed card allows audio from Zone 1 & 2 to be transmitted wirelessly to Eos wireless speakers & receivers Power Input Connect to power adapter Paging Input Connect to output of...
  • Page 11: Player Operation

    Player Operation Player Operation Choosing a station 1. Press the SELECT button to enter the main menu 2. “Stations” will be the selected setting in the menu 3. Press the SELECT button to enter the“Stations” Menu 4. A list of available stations will be displayed 5.
  • Page 12: Connection To Music On-Hold & Paging

    Eos Wireless Transmitter card (EOSP-510) the paging signal can be sent wirelessly to Eos Wireless Speakers or Eos Receivers. When an audio signal is detected over the paging in- put on the player, the music on the wireless speakers and receivers (set to Zone 1) is interrupted for the paging announcement.
  • Page 13: Audio Line Inputs And Outputs

    Audio Line Inputs and Outputs The Streaming Music Player features line level inputs and outputs that facilitate virtually any connection option required. Zone 1 Output Zone 1 features a stereo/mono line level outputs for connecting to an amplifier. If using a mono amplifier, connect to the Right Channel and select the MONO position on the mode switch.
  • Page 14 commercial wireless audio 877-465-3927 www.eoswireless.com/pro...
