Summary of Contents for Event 2030
-
Page 2: Important Safety Instructions
The 2030 is a free-standing speaker and is designed for operation on open surfaces such as speaker stands or a work surface. Do not operate the 2030 within cabinets or any enclosed space with limited ventilation. - Page 3 important safety instructions...
- Page 5 Thank you for purchasing the Event 2030. Before you set up your speakers for the fi rst time, please read through this user guide. The Event 20/20 pedigree needs no introduction. As the speaker family that made studio monitoring accessible to countless artists and engineers, it has become a household name and is a staple in studios the world over.

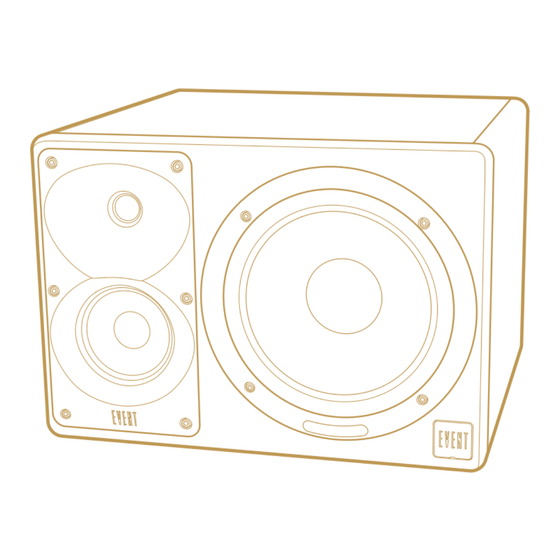

- Page 6 2030 BAS - front tuned waveguide tweeter low resonance speaker baffl e mid range driver woofer illuminated LED power indicator...
- Page 7 2030 BAS - rear rear fi ring port signal input (balanced xlr) heatsink rear panel controls mains switch (see next page) mains input mains voltage selector...
-
Page 8: Rear Panel Controls
SIGNAL INPUT The 2030 requires the input of an industry standard XLR style cannon jack. GAIN Allows for modifi cation of the input sensitivity, from -12dB to +12dB in regards to the reference sensitivity of 0.775v RMS. The default setting is 0. -
Page 9: Mains Power
MAINS VOLTAGE SELECTOR Please note, that as the 2030 is not fi xed to operate in the voltage range of the region that it is sold in, extra care must be taken before connecting the mains power. -
Page 10: Unpacking Your Speakers
We understand that you may be eager to unpack your new Event 2030s, but please be careful when unpacking the speakers. Your new studio monitors have been carefully inspected, tested and packed by our quality control engineers prior to shipping. Please take care at each stage of unpacking. -
Page 11: Connecting Your Speakers
Before you connect and turn on your Event 2030 speakers, ensure the Gain level on the rear of the speaker is set to the lowest setting and the HF shelf and LF shelf dials are both set to zero. If too much input signal is present, the amplifiers may overload. - Page 12 2030 acoustic axis The 2030 is an active 3-way speaker. This means that monitor placement slightly differs from a 2-way system. The acoustic axis of the 2030 is located at the point directly between the tweeter and midrange driver. Please see the diagram below for the acoustic axis point.
-
Page 13: Mounting Your Speakers
The Event 2030 have been designed to be mounted horizontally. This means that each speaker will be a mirror image of its partner. To ensure the most accurate frequency response, the speakers should be placed in the correct left and right positions, with the tweeter / midrange driver assembly facing inward as shown below. -
Page 14: Specifications
Signal Input XLR - balanced AC Input Connector 3-Pin IEC Average Long Term Power 95 watts Consumption Quiescent Power <10 watts Consumption Overdrive Protection Event proprietary IC based fast limiting with sliding gain Thermal Protection Thermal cutoff switch, auto reset... - Page 15 specifi cations low frequency transducer Piston Diameter 180mm (7.1”) Voice Coil Diameter 38mm (1.5”) Former Material Kapton Voice Coil Wire Copper Magnet Type Ferrite (fully shielded) Cone Type Mineral Filled Polypropylene mid range transducer Piston Diameter 85mm (3.3”) Voice Coil Diameter 25mm (1”) Former Material Glass fi...
- Page 16 specifi cations low frequency amplifi er Frequency Response 20Hz - 40kHz (± 0.25dB) bandwidth limited Operating Band Pass 20Hz - 400Hz Total Harmonic Distortion 0.02% @ 120 watts into 4ohm load 80 watts Long Term Power @ 4 Ohms* Power @ 4 Ohms** 120 watts Output Topology Class AB with proprietary soft...
-
Page 17: Power Supply
specifi cations physical Cabinet Construction Engineered Composite Wood Low Frequency Vent High “Q” / High output rear fi ring port Cabinet Volume 16 Litres 275mm W x 300mm H x 260mm D Cabinet Dimensions 10.8” W x 11.8” H x 10.2” D Cabinet Weight 14.6kg/32lb Shipping Dimensions... -
Page 18: Warranty And Support
Support section of our web site, www.eventelectronics.com Please note that there are no user serviceable parts within the Event 2030. For any servicing please refer to an authorised service technician. If you believe your monitor is in need of repair, please contact the Event Customer Service department to request a Return Authorization Number (RA#). - Page 19 Website: www.eventelectronics.com/support Email : techsupport@eventelectronics.com...
- Page 20 International 107 Carnarvon Street Silverwater NSW 2128 Australia www.eventelectronics.com Suite A 6385 Rose Lane, Carpinteria CA 93013 info@eventelectronics.com...
