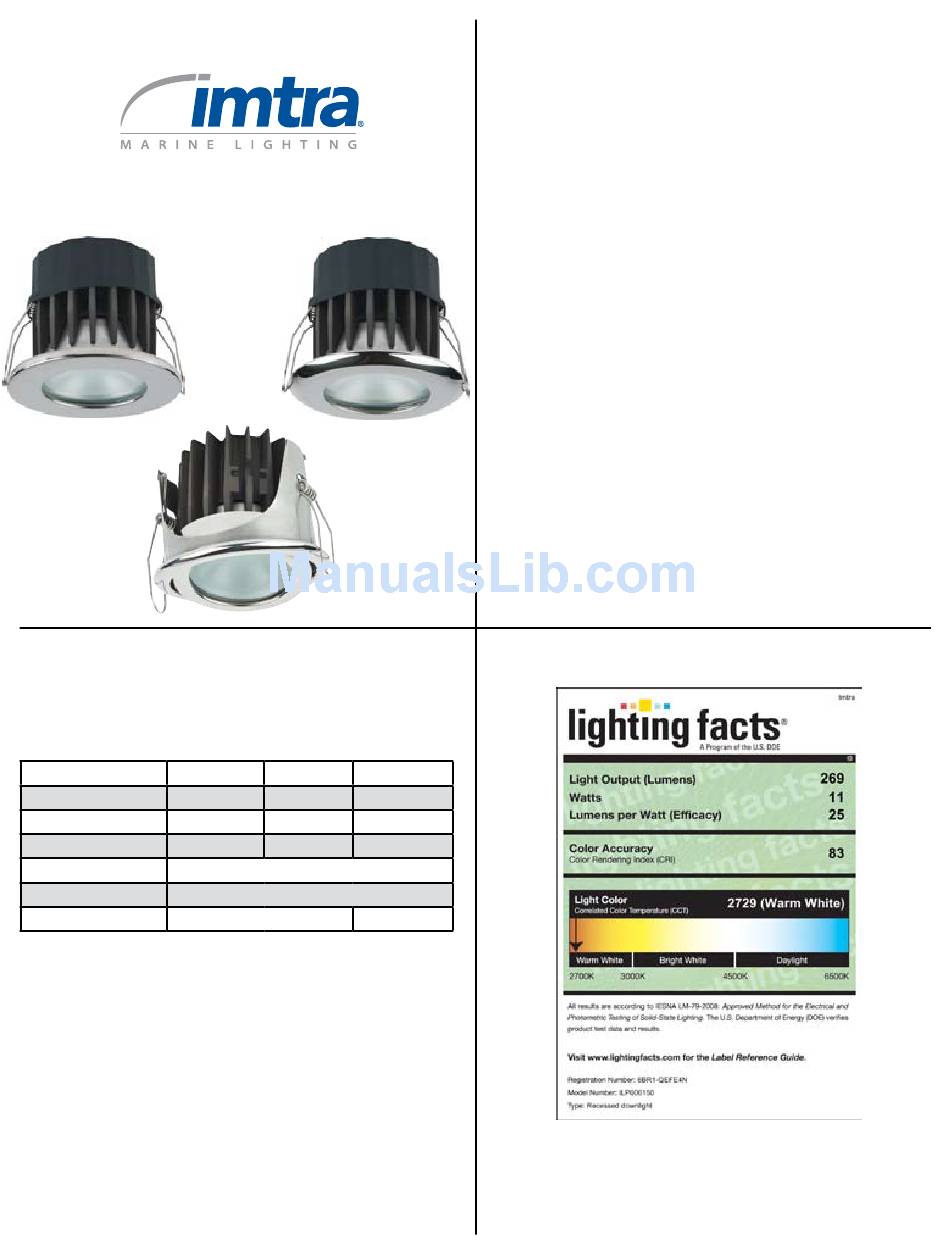

Imtra Sardinia Installation And Operation Manual

PowerLED Downlight
Installation and Operation Manual
Sardinia

SPECIFICATIONS

Sardinia
Trim Ring Diameter 3.76" (96mm)
Trim Ring Height 0.27" (7mm)
Recess Cutout Diameter 2.89" (73mm)
Recess Depth 2.81" (71mm)
Input Voltage Range
Power Consumption
IP Rating
* IP65: "Protected from the ingress of dust and low pressure jets of water from all directions"
This rating does not apply to the rear of the fixtures.
**IP40: "Protected against solid objects down to 1mm. No protection against direct sprays of
Cyprus
Cyprus
Eyeball
Cyprus
Cyprus Eyeball
3.76" (96mm) 3.79" (96mm)
0.27" (7mm) 0.25" (6.25mm)
2.89" (73mm) 3.38" (85.7mm)
2.81" (71mm) 2.86" (72.7mm)
90-135 VAC
10.5 Watts
IP65* IP40**
water."
- 2 -

OVERVIEW

The Sardinia and Cyprus are energy saving flush-mount spots
that directly replace power-hungry 120V-35W halogen spots
commonly found on large vessels and megayachts. Both feature
integrated current-regulated drive electronics that accept
120VAC line-voltage; greatly simplifying electrical hook-up and
eliminating the need for external drivers, LED converters, or step-
down transformers required by mainstream LED and halogen
products.
The fixed direction models may be either screw mounted
or secured with the springs provided. The Cyprus Eyeball
model mounts with springs only. An 18" long triplex cable is
provided for connection to a junction box or use the optional
bracket with Molex™ connector (included with each unit). The
Sardinia and Cyprus' thermal management system includes
efficient heat sink design and thermal compensator that powers
down the unit in the event of high ambient heat conditions or
overheating. Emitting no radiated heat, these fixtures will keep
cabin temperatures comfortable and eliminate risk of burning or
scorching, long associated with hot halogen bulbs. Finally, our
use of high quality LEDs and custom-built solid state electronics
contributes to long fixture life, eliminating the cost associated
with changing delicate bulbs.
