Summary of Contents for Inter-m PSI-5120
-

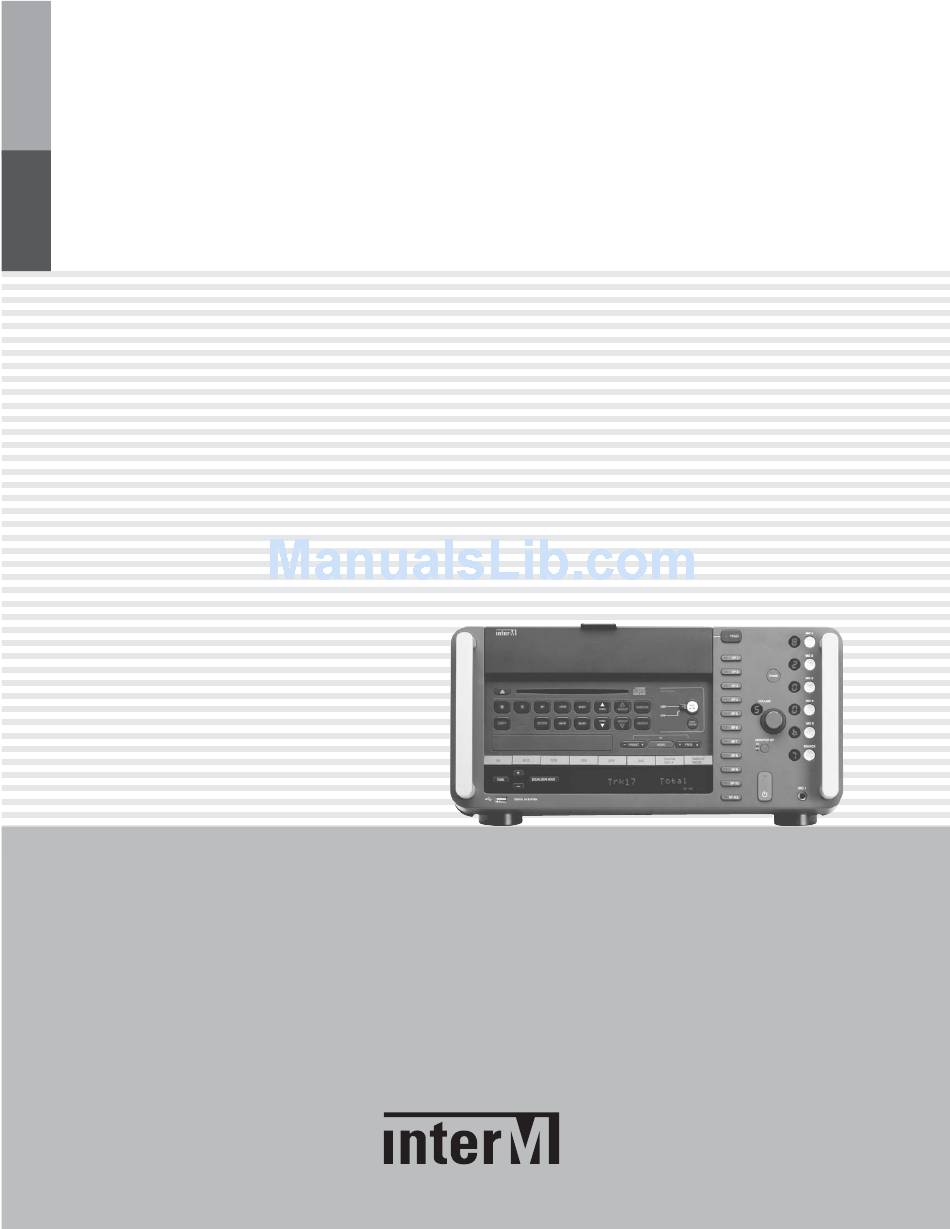

Page 1: Operation Manual
Operation Manual Digital PA System PSI-5120/5240... - Page 2 A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products.
-
Page 3: Table Of Contents
1. BUZZER Sound ON/OFF ......................20 2. AUTO PLAY Function.........................20 3. FM MUTE ..........................20 4. Memory Initialization.........................20 Applications ..........................21 Specifications ..........................22 Method to Assemble Rack Bracket ....................23 Service Procedures ..........................24 Schematic ..........................24 Parts List .............................24 Variations and Options .......................24 Warranty ............................24 PSI-5120/5240... -
Page 4: Unpacking
S3125A S3125A PSI-5120/5240... -
Page 5: Features
PC using USB memory. - IR REMOTE CONTROL SENSOR (REMOTE CONTROL SEPARATELY SOLD) Remote control is available using the remote control. - RACK MOUNTABLE (RACK BRACKET SEPARATELY SOLD) Separate rack bracket (BKT-PSI5120) can be assembled for rack mounting. (See page 23) PSI-5120/5240... -
Page 6: Additional Descriptions
If transmitting digital data as they are, data errors are little since it is not less affected by electrical noise than electrical signal. Digital interface used in this product is a form of S/PDIF(Sony/Philips Digital Interface), complying with standards called as IEC958. PSI-5120/5240... -
Page 7: Front Panel
This button displays time for the music currently played, folder name for MP3/WMA, music name, numbers of all music, group name or track name and playing time of the whole music of a disc. This cannot be used in using 6CD and Hangul (Korean character) is not supported. PSI-5120/5240... - Page 8 CD Eject Button. If pressing the HOLD button once again, “HOLD OFF” is displayed on the display and the relevant function is released. 17. RECORD & ERASE FUNCTION BUTTON This is a button used for broadcasting or recording contents of lecture which are saved in the relevant memory as MP3 file. PSI-5120/5240...
- Page 9 This is an insert slot of 6CD Disc Magazine. Disc magazine is mounted if lightly pushing it into the slot for insertion. 21. 6CD DOOR The magazine insert slot is seen if lowering the handle with light force. Always close the door when using magazine after insertion. PSI-5120/5240...
- Page 10 This is the insert slot of a Disc. If you put a Disc in the slot, then the disk is automatically entered into the slot. 23. 1CD DISC EJECT BUTTON This button is used to take out a disc. PSI-5120/5240...
-
Page 11: Rear Panel
This terminal is used to input/output digital audio signal and you can transmit digital signal without loss of sound. 6. AMX / CRESTRON INTERFACE (RS-232) This is a control port to use a remote device such as AMX or CRESTRON control system. (For your reference, the maximum cable length is about 15m) PSI-5120/5240... - Page 12 All functions except for some are available and you can check their detailed contents if downloading data for control protocol. �Downloading of control protocol Please download the protocol at the inter-m site, www.inter-m.com, SUPPORT / DOWNLOAD folder. 7. CHIME VOLUME This is a volume to control Chime Level.
-
Page 13: Method To Connect Speakers
HIGH IMPEDANCE SPEAKER INSTALLATION ※ Total power sum of all zones (1~10) must not exceed the rated power. PSI-5120:120W, PSI-5240:240W ※ Do not use 4 Ω speaker terminal and high impedance speaker terminals at the same time. - Rated output and impedance OUTPUT 4 Ω... -
Page 14: Operating Method
FM antenna at downtown or streets with a great of traffics, factory premise or high voltage transmission lines. In such areas, install outdoor antenna with 75 Ω cables for connection of FM antenna. PSI-5120/5240... -
Page 15: Cd/6Cd/Usb/Drp Operation
� Disc inserting order is according to the order of DISC 1 through DISC 6 from below. � Preparation is completed if inputting disc to play into the tray taken out with the hands after holding it up. � You can use only disc whose size is 12cm. Never use CD of 8cm. PSI-5120/5240... -
Page 16: Disc Check
- 6CD : Inputting Magazine enables to light “6CD” and numeric (1~6) icon and numeric icon turns off except for track where disc is contained in while playing is done. 3) REPEAT - 6CD Pressing the REPEAT button enables to change the mode to the order of REPEAT → REPEAT 1→ REPEAT ALL → OFF. PSI-5120/5240... -
Page 17: Random
- You can check current status by using DISPLAY MODE button. 7) COPY - CD COPY (for 1CD only) This function is used to copy contents of CD to inner memory (DRP) or USB memory. When you play a CD, CD copy is done at the same time. PSI-5120/5240... - Page 18 - Using CD copy function, you can greatly save the lifetime of the CD mechanism (In case of repeatedly playback a CD as a BGM source) � Press the REPEAT button before copying a CD in order to set the “REPEAT ALL” mode. PSI-5120/5240...
- Page 19 In this case, delete the unnecessary part by using DELETE function. 3) If you copy WMA format files, you have to consider the remaining space of the memory because WMA file requires about 2 times of the file size. 4) No Folder Copy is supported. PSI-5120/5240...
-
Page 20: Recording
Use the ▶▶ (SEARCH UP) button to move. Input the ending track to delete with the I◀◀ / ▶▶I (SKIP DOWN/UP) button. � If pressing the ENTER (Execute) button, the relevant files are deleted. If deleting is completed, the function is changed to standby mode. � To exit the delete mode, press the stop STOP/ERASE button. PSI-5120/5240... -
Page 21: Eq Control Function
- Control the function to the desired level by using the +, - button. - If pressing the EQUALIZER MODE button lengthily, the final control status is saved in the relevant mode (USER1~5). - If not in use, place it at the EQ OFF position. PSI-5120/5240... -
Page 22: Additional Function
2) Select “Initial ON” by using the ◀◀ / ▶▶ (SEARCH DOWN/UP) button. (Default setting is OFF) 3) Press the ENTER button to initialize. After this function is completed, “Complete” and “POWER OFF” are alternatively displayed. 4) Turn the power off and then power on to complete the initialization. PSI-5120/5240... -
Page 23: Applications
DIGITAL PA SYSTEM Applications Applications OUTSIDE ANTENNA FM ANTENNA OPTICAL INPUT PSI-5120/5240... -
Page 24: Specifications
DIGITAL PA SYSTEM Specifications Specifications PSI-5120 PSI-5240 POWER AMP (AUX IN @1KHz, Speaker Output, 4Ω Load) Rated Output (THD 1%) 120W 240W AUX 1, 2 (@1KHz, Speaker Output, 4Ω Load) Input Sensitivity -10dBV S/N (20KHz LPF, A-WTD) Better than 80dB Frequency Response (1W Power Output, ±3dB) -
Page 25: Method To Assemble Rack Bracket
1. Put RACK BRACKET (BKR-PSI5120) from the front side of the system. (BRACKET separately sold) 2. Secure the side of system firstly using S1 (4EA). 3. Secure the system to the rack by using S2 nuts (4EA), W1 (4EA) and washers (4EA). PSI-5120/5240... -
Page 26: Procedures
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 27 Edited by VeryPDF PDF Editor Version 2.6 Inter-M, Ltd. (Korea) began operations in 1983. Since then, Inter-M has grown to become one of the largest manufacturers of professional audio and commercial sound electronics equipment in the world. Inter-M has gained worldwide recognition for its own branded products, as well as private label manufacturing of electronics sold under other names (OEM).
