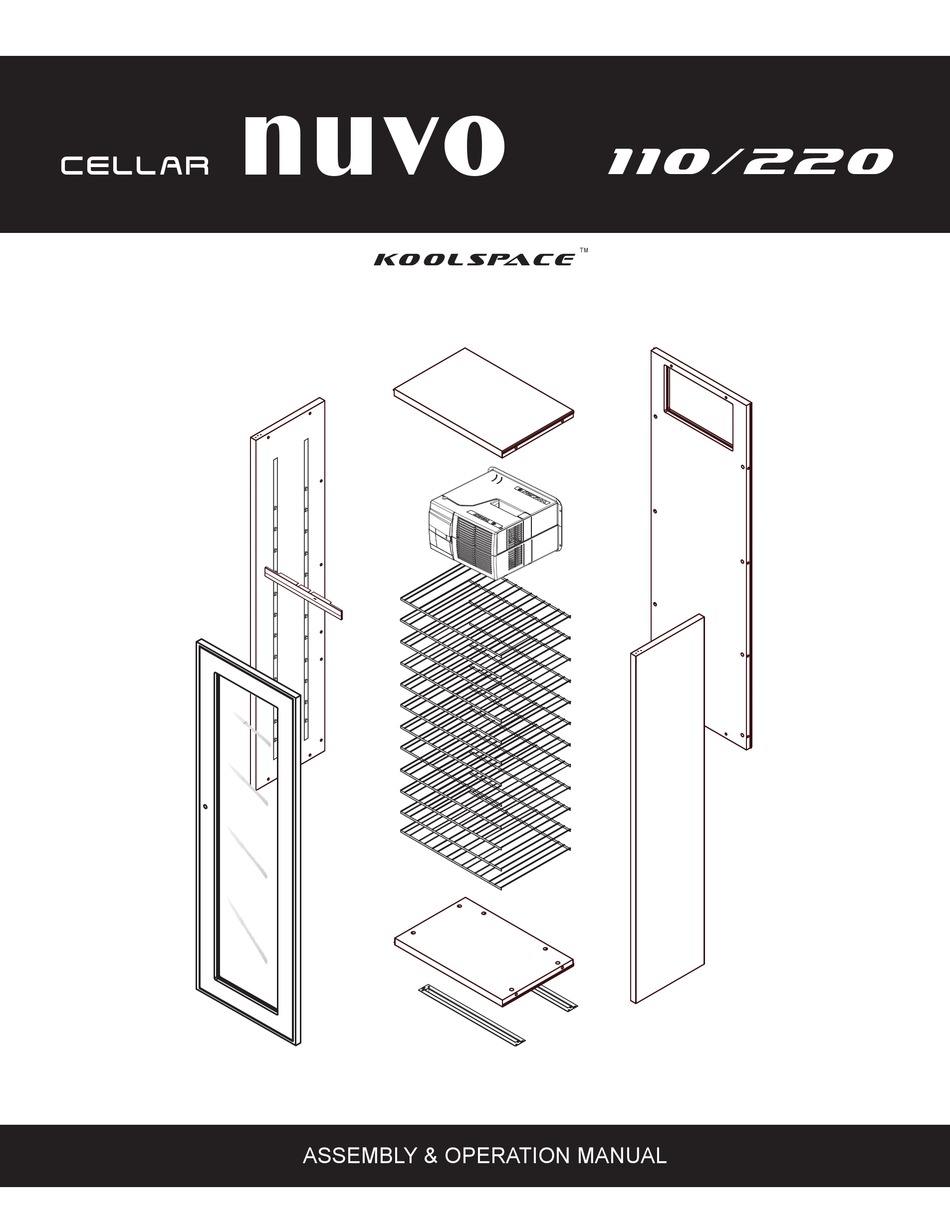

- Page 1 nuvo 1 1 0 / 2 2 0 CELLAR k o o l s p ac e ASSEMBLY & OPERATION MANUAL...
-
Page 2: Before You Start
READ BEFORE YOU START 1. LOCATING YOUR WINE CELLAR - Remember, it is not an appliance, it is a piece of furniture Provide 4” minimum clearance for both sides and back, keep the top completely clear. Under no circumstances should the unit be “built-in” in any way. Never locate your wine cellar outdoors or in an area with extremes of temperature and humidity. -
Page 3: Hardware Kit
HARDWARE KIT Cam Cap Hex Bolt Hex Wrench x 20 (x24)* x 14 Cam Pin x 20 (x24)* x 20 (x24)* In Cooling Unit Box Panel Insulation Strip Hex Bolt (Flange) *NOTE : Hardware quantities for Model 220 are indicated in parenthesis. ~ 3 ~... -
Page 4: Step 1 : Panel Preparation
STEP 1 : PANEL PREPARATION CAUTION : 1. Watch for sharp staples on boxes. 2. DO NOT STEP ON PANELS 3. The manual will give a recommended order to open boxes, it saves space and time. PANEL EDGE Open Box VP1. Install INSULATION STRIP (H) to Back, Top, and Bottom Panels. -
Page 5: Step 2 : Cabinet Assembly
STEP 2 : CABINET ASSEMBLY Attach Top and Bottom to Back by CAREFULLY aligning edge holes over Cam Pins and gently push together to avoid damaging cam pins. DO NOT BANG OR SLAP PANELS TOGETHER!!! Insert Cam, push all the way in under panel level (may require some force) and make sure Arrow points to outside edge, use allen key provided or #3 phillips screwdriver. - Page 6 STEP 2 : CABINET ASSEMBLY CONTINUED Open Box VP5 or VP2. Insert Cam Pins (E) into SIDE PANEL’S predrilled holes both sides down to TAB. (May require some force) Attach SIDES to Back/Bottom/Top by Carefully aligning edge holes over Cam Pins and gently push together to avoid damaging cam pins.
-
Page 7: Hinge/Base/Legs Installation
STEP 3 : HINGE,BASE AND LEGS INSTALLATION Open Box VP3. Fasten one HINGE (found in door box) to the SIDE of the cabinet with Hexbolts (B). NOTE : Hinge can be on either side of the cabinet. Install four LEGS (F) into BASES fully in. - Page 8 STEP 4 : SHELVES Open box VP4 Hook SHELVES into hangers starting from the bottom of cabinet PRESS BOTTOM HINT : CENTER SHELVES ON HANGERS Snap SHELVES into hangers on one side Push the SHELVES down to snap into opposite side hangers ~ 8 ~...
-
Page 9: Step 5 : Cooling Unit Installation
STEP 5 : COOLING UNIT INSTALLATION GET HELP BEFORE INSTALLING AND KEEP CHILDREN CLEAR OF CELLAR CONSTRUCTION AREA. Get helper to help guide unit, keep light cord clear of edge inside cellar and to prevent tipping of cellar. MAKE SURE INSULATION STRIP IS IN CORRECT ORIENTATION. Run light cord through Cut-out. Slide unit into the back opening by angling unit A to allow light cord to clear and straighten to push in B . -
Page 10: Light/Light Cover Installation
STEP 6 : LIGHT AND LIGHT COVER INSTALLATION Plug cord to LIGHT Insert LIGHT to LIGHT COVER LIGHT COVER Insert to holes pre drilled on front edge of TOP panel. ~ 10 ~... -
Page 11: Step 7 : Door Installation
STEP 7 : DOOR INSTALLATION Insert DOOR onto BOTTOM HINGE Install TOP HINGE with HEX BOLTS (B) NOTE : Adjust final position of the door before tightening the bolts and move cellar into place, leaving 4” clearance all around cellar. MAKE SURE CABINET IS AIRTIGHT! Adjust level... -
Page 12: Features
CONTROLS : PLUG IT IN and ENJOY! (wait one minute) FEATURES: DISPLAY: - Default SET temperature 57º F/14º C (ideal for wine storage). KEYS - Calibration option of the temperature sensor. - Display of actual temperature by request. - SET temperature range 52ºF-64ºF. - Digital temperature sensor. -
Page 13: Maximum Capacities/Loading Tips
MAXIMUM CAPACITIES AND LOADING TIPS Maximum capacities and sample loading arrangements for Vintage Keeper Tuscany wine cellars are illustrated below. Note the variations in shelf height, to accommodate the widest variety of bottle types and sizes. Standard Burgundy and Bordeaux bottles are best arranged with necks facing out;... -
Page 14: Troubleshooting Guide
240V), or failure to clean the unit regularly (see illustration below). The following may help you determine what the problem may be; what steps you can take to correct it, and what further steps may be required. Additional Trouble-Shoot- ing information and downloadable documents are available in the “Support” area of our web site: www.koolspace.com Cleaning the coil Coil is located at the top of back panel. - Page 15 1 1 0 / 2 2 0 CELLAR k o o l s p ac e Toll free: 1-888-274-8813 www.koolspace.com...
